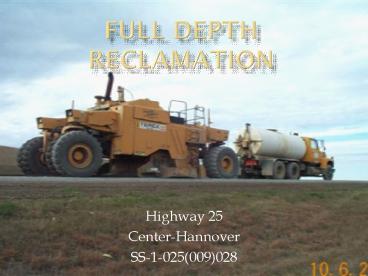

FULL DEPTH RECLAMATION

1
FULL DEPTH RECLAMATION

• Highway 25
• Center-Hannover
• SS-1-025(009)028

2
FDR Process

• Blend Roadway
• The contractor blended the roadway at an average
  depth of 9 inches (5 inches asphalt, 4 inches
  base) then returned to grade
• The cement was not added in this pass because
  material needed to be moved to the center of the
  road for slope correction
• The contractor used an offset stake to maintain
  centerline
• Cement Application
• The cement was distributed evenly across one lane
  of the roadway
• Once the cement was applied to the roadway it was
  blended in with the existing material.
• The roadway was compacted with a sheepsfoot
  roller following the cement application

3

• Grading
• Once initial compaction was completed the roadway
  was finish graded
• The contractor was given 2 hours from the time of
  cement application to return the roadway to grade
• A rubber tire roller then finish-rolled the
  roadway
• After a portion of the FDR base had been
  compacted and finished the contractor had 10
  calendar days to place the initial pavement
  surface
• Sealing
• Prime was applied to the roadway to seal the road
  until it was paved. The roadway was then sanded
  but traffic could not return onto the completed
  section for 4 hours after initial mixing to allow
  time for the base to set up.
• Paving
• One 2.5 lift of Superpave FAA 40 was placed
• The pavement was not bonding well with the base
  so tack was applied to correct this problem.

4
Advantages

• Provides new pavement structure
• Fast construction cycle
• No detours
• Traffic returns quickly
• Minimal change in elevation
• Conserves resources by recycling existing
  material
• Crown and slope corrections
• Eliminates existing reflective cracking and
  rutting

5
Disadvantages

• May require additional effort to correct subgrade
  problems
• Some shrinkage cracks may reflect through
  bituminous surface
• Cement-treated materials will shrink naturally
  while curing
• Depth limitations
• Equipment can mill in excess of 18 but it is
  difficult to compact anything over 12
• NDDOT requires 50 asphalt 50 aggregate
• Cost

6
Project Cost

• Project Length- 5.935 Miles
• Total Cost of FDR- 1,404,448.00
• Cost/Mile- 236,638.00
• Average cost/mile of thin lift overlay-
• 98,000.00

7
Base Strengths

• Maximum- 400 PSI _at_ 28 days
• If strength was higher than 400 PSI the base
  would crack, causing pavement cracks
• Minimum- 200 PSI _at_ 28 days
• 300 PSI _at_ 28 days was the goal of Materials and
  Research

8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
Existing Roadway
15
Blending Machine
16
Blending Operation
17
Loading Cement
18
Cement Distributor
19
Cement Application
20
Dust
21
Blending
22
Material Sampling
23
(No Transcript)
24
2nd Pass
25
Initial Compaction
26
Finish Blade
27
Grading Operation
28
Final Compaction
29
Finished Base Surface
30
Questions?
