Title: Hard or Intractable Problems NPComplete Problems

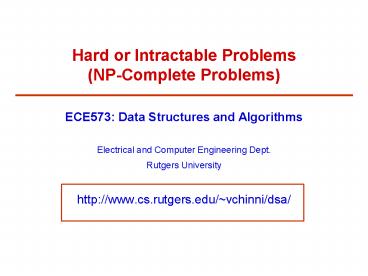

1
Hard or Intractable Problems(NP-Complete
Problems)
  • ECE573 Data Structures and Algorithms
  • Electrical and Computer Engineering Dept.
  • Rutgers University
  • http//www.cs.rutgers.edu/vchinni/dsa/

2
Polynomial or Intractable?
  • Polynomial time complexity
  • O(nk) time algorithm, k constant
  • Intractable
  • No O(nk) algorithm is known
  • O(nn) or O(n!) or O(kn) time required

No HW6 PA6 We got to build this lost piece of
art work Can have some additional time
3
Similar Problems?
  • Eulers Problem
  • Is there a path through a graph which traverses
    each edge only once?
  • Hamiltons Problem
  • Is there a path which visits each vertex only
    once?

4
Eulers Problem The Bridges of Königsberg
  • Can I make a tour through the park, crossing
    each bridge only once?

5
Eulerian Path
  • An Eulerian Path exists iff
  • It is possible to go from any vertex to any other
    by following the edges (graph must be connected)
  • Every vertex must have an even number of edges
    connected to it -with at most two exceptions
    (the start and end points)

Obviously necessary conditions Sufficiency proof
may be found in the literature
6
Transform the Bridges Problem
  • Nodes land
  • Edges bridges
  • No path!
  • Determined in O(n) time
  • Count degree of each vertex
  • Hamiltonian Path?

7
Hamiltonian Path
  • Although a path may be easily found in this case,
    no known efficient algorithm for finding a
    Hamiltonian path
  • But if we find a path,
  • we can verify that it is a Hamiltonian path in
    polynomial time
  • Check that each edge in the path is an edge in
    the graph (use adjacency matrix) - O(E)
  • Check that each vertex is visited once only
    -O(n2)

8
Classes P and NP
  • Class P
  • Problems solvable in polynomial time
  • eg Eulers problem
  • Class NP
  • Non-deterministic Polynomial
  • eg Hamiltons problem

9
Class NP
  • Non-deterministic Polynomial
  • At each step, guesswhich step to take next(eg
    which vertex to check)
  • Have you found a correct solution?
  • Need polynomial time only
  • Nothing from previous steps guides the next step
  • You have to try all possibilities
  • O(n!) algorithms

Non-deterministic part You simply guess!
10
Winning the Turing Award
  • No proof that any problem ? class NP
  • Problems (eg Hamiltonian path) are believed to be
    in class NP
  • Because no polynomial time algorithm is known
  • Proving that a problem ? class NP
    or finding a class P algorithm ?Instant
    fame!

Computings equivalent of the Nobel Prize
11
Composite Numbers
  • Determine whether a number n can be written as
    the product of two other numbers
  • If the divisors can be found, then its simple to
    verify that they are divisors
  • But, no efficient method of finding them is known

12
Assignment Problem
  • You have to assign students to rooms in a college
  • You have a compatibility map
  • Students are vertices,
  • Compatible students are linked by an edge
  • If rooms hold 2 students,
  • a class P algorithm
  • but if rooms hold 3 students,
  • a class NP problem!

13
Boolean Satisfiability
  • Find an assignment of values (true or false) to
    ai so that
  • is true
  • where op are boolean operators and, or, ...
  • Equivalent to circuit satisfiability problem
  • Find a set of inputs which produce a true at the
    output of a circuit composed of logic gates
  • Solution
  • Try all 2n possible assignments

a1 op a2 op a3 ... op an
14
Map Coloring
  • Color a map using only three colors, so that
    adjoining countries dont have the same color
  • Easily answered for 2 colors
  • point at which an odd numberof countries meet
    no solution
  • Solvable for 4 colors
  • proof exists that 4 colors suffice for any map

15
Map Coloring - Equivalent Problems
  • Graph equivalent
  • Vertices countries
  • Edges connect countries with common borders
  • Work scheduling
  • Vertices tasks
  • Edges represent common resources
  • eg linked tasks require some machine
  • 3 color marking of the vertices
  • allocation of tasks to 3 shifts in a day

16
Reducing Problems
  • Map Coloring ? Boolean Satisfiability
  • A solution can be constructed by assignment of
    true or false to a set of variables

ar true ? A is red
ab true ? A is blue
ag true ? A is green
br true ? B is red
Solution If we can find a set of values for ax,
bx, ... which make this expression true, weve
found a map coloring
((ar ab ag ) (bb br. ... ) (cb
...
17
NP-Complete Problems
  • Special class of problems in NP
  • The NP-complete problems
  • All problems in NP are efficiently reducible to
    them
  • Efficiently in polynomial time
  • Many problems have been shown to be efficiently
    reducible to boolean satisfiability
  • but an efficient solution to this (and thus any
    other NP-complete problem!) has eluded many
    researchers for a long time!
  • Its believed that class NP ? class P

18
Solving NP-Complete problems
  • NP problems are solvable
  • Its just a question of patience (or longevity!)
  • Non-deterministic algorithms
  • Alternately
  • Non-deterministic (guessing) step
  • Select the next step randomly
  • No guidelines any step may be the solution
  • Deterministic step
  • Determine (in polynomial time) whether you have
    found a solution or not

19
The Travelling Salesman Problem
  • A salesman has a number of cities which he must
    visit, find the minimum cost tour
  • Optimization problem
  • Can we reduce it to boolean satisfiability?
  • Problem must have a true /false answer
  • Recast as
  • Does a tour exist with cost less than x?
  • Reduce x until the answer is provably no ...
  • Optimal tour
  • This problem may be proved equivalent to finding
    a Hamiltonian circuit

20
The Travelling Salesman Problem
  • Many real world problems map to TSP
  • Drilling circuit boards
  • Inspection tours
  • ...
  • How do we solve it?
  • Heuristics
  • Approximate techniques leading to near-optimal
    solutions
  • If you find the optimal solution, will you know?

21
Travelling Salesman Heuristics
  • Start with the Minimum Spanning Tree
  • Optimal tour cost lt 2 MST cost
  • Heuristics
  • Christofides algorithm
  • Prune the tour by taking short-cuts
  • Tour must be an Eulerian path
  • Each vertex of even degree
  • Add edges to odd degree vertices
  • Christofides algorithm produces a tour lt 1.5
    optimal tour cost

22
Travelling Salesman Heuristics
  • Banding
  • Divide the region into bands
  • Number of citiesin each bandsufficiently small
    that the TSPproblem can be solved by
    exhaustion(brute-force or try all solutions)
  • Greedy algorithm to join the band solutions

23
Travelling Salesman Heuristics
  • Genetic algorithms
  • Biological evolution analogy
  • Reasonably effective
  • Trivially parallelizable!
  • Simulated annealing
  • Model Annealing of solid
  • Solution heads towards local minimum
  • Temperature allows some probability of climbing
    hills to escape a local minimum

24
Games
  • Search trees can be huge
  • Chess 40 possible choices for each move
  • 10-move look-ahead needed to win
  • gt4010 positions to explore
  • Modern computers just touching this capability
  • Pentium _at_ 1000MHz 105 evaluations/second
  • Still a rather boring game ... 1 month/move??
