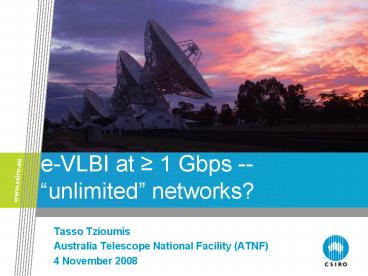

e-VLBI at 1 Gbps --unlimited networks?
  • Tasso Tzioumis
  • Australia Telescope National Facility (ATNF)
  • 4 November 2008

2
Introduction
  • Very Long Baseline Interferometry (VLBI)
  • Combining (correlating) very distant radio
    telescopes
  • virtual large telescope ? more resolution
    detail
  • Baseline distance ? 100s-1000s km
  • Interferometry pair-wise correlation
  • Telescopes widely distributed over countries,
    continents, even in space.
  • Traditionally record data on tapes or disks
    correlate later (days or weeks or months)
  • e-VLBI
  • Real-time VLBI using fast network transfers into
    hardware or software correlators

3
LBA Radio Telescopes in Australia
x Katherine
x ASKAP
x Yarragadee
x New Norcia
x
4
VLBI Astronomy Arrays (c. 2008)
o
o
o
o
o
o
o
o
o
o
o
x
o
o
o
o
o
O New telescopes in last decade
5
Resolution (Details)
Atmosphere gives 1" limit without corrections
which are easiest in radio
Jupiter and Io as seen from Earth 1 arcmin
1 arcsec 0.05 arcsec 0.001
arcsec
Simulated with Galileo photo
6
Cen A
7
Sensitivity
  • Observe weak objects
  • Look into different populations
  • e.g. Hubble Deep Field
  • View much older objects
  • ? Look back in time
  • New insights into universe
  • Need similar sensitivity in the
  • radio spectrum

HST Deep Field
8
Radio Telescope sensitivity
  • Sensitivity depends on
  • Size of the telescope - very expensive to
    increase
  • Radio receivers limit of state of the art
    electronics
  • Cryogenically cooled to liquid He temperatures
  • Integration time limited by clock stability
  • Bandwidth ? Data rate (after sampling)
  • Most cost effective to achieve!?
  • Most progress in recent years
  • gt1 Gbps routinely achieved
  • VLBI data on disks
  • High data rates expensive to support

9
e-VLBI real-time observing over fast networks
  • e-VLBI
  • Transport the VLBI data over fast networks for
    real-time operation ? fast response
  • Data rates at 1 Gbps or more are required
  • BUT very expensive commercially
  • ? Collaboration with network providers
  • National Research and Education Networks (NREN)
  • E.g. Internet2 DANTE collaboration AARNet
  • Research in Astronomy Networking
  • Very high and sustainable datarates (gt 12 hours)
  • Testing the speed and reliability of the networks

10
e-VLBI Challenges - 1
  • last-mile fibre connectivity
  • Connect remote telescopes to the NREN backbone
  • Fibre build needed - expensive
  • But many institutions already at 1 Gbps
  • Tools and protocols
  • Sustained high rate traffic required
  • TCP/IP needs fine tuning to achieve high rates
  • Congestion control can create problems
  • Other protocols needed (UDP modified TCP UDP)
  • Research and development needed

11
e-VLBI Challenges - 2
  • Long intercontinental distances
  • RTT Australia-Europe gt 300 ms
  • Routed Ethernet not consistently reliable
  • Dedicated light-paths at 1 Gbps
  • Can be built over ethernet backbone
  • Require NREN cooperation over many countries
  • e.g. 3 x 1 Gbps Oz-Holland in 2007
  • Real-time data processing
  • Hardware correlators new interfaces
  • Software correlators new developments
  • Supercomputer clusters and grid applications

12
e-VLBI Achievemnts - EXPReS project
connectivity world-wide
13
Oz achievements
  • Telescope connectivity at 2 x 1 Gbps
  • 2M fibre to telescopes built by CSIRO
  • University fast connections in Uni Tasmania,
    Swinburne (Melbourne) Curtin (Perth)
  • 1 Gbps operation demonstrated within Australia
  • 512 Mbps production e-VLBI
  • 512 Mbps operation with Europe (12 hours) in 2007
  • 512 Mbps operation with Japan and China in 2008
  • Internet2 IDEA award - 10 Gbps link in US for 1
    year
  • New fibre-build for new telescope (ASKAP) in WA
  • Construction to commence shortly
  • Research for next generation radio astronomy
    instruments ( e.g. SKA 2B international
    project)

14
Image created by Paul Boven Satellite image Blue
Marble Next Generation, courtesy of NASA
Visibible Earth
15
Next steps
  • 10 Gbps connectivity
  • NREN backbones already at 10 Gbps
  • Multiple colours possible (many ?? on one fibre)
  • Dynamic circuit allocations
  • Build light-paths and other circuits
    interactively
  • Systems in test
  • Distributed correlation
  • grid-like applications
  • Flexible operations on software

16
Lessons learned
  • NREN collaboration critical
  • Must involve networking community
  • Symbiotic relationship science networks
  • Network tools development
  • Tools and protocols need development
  • Sustained high data rates over long distances
    still problematic ? light-paths
  • Very high data rates are achievable now
  • Almost infinite data pipes
  • NREN test circuits at low cost
  • e.g. AARNet try-before-you-buy scheme
  • 6-12 months free 1 Gbps connectivity!

17
Paradigm shift unlimited networks??
  • Current way of science planning
  • Current plans often limited by scarce network
    resources
  • Researchers assume connectivity the limiting
    factor
  • Often limit our own visions and horizons
  • ? New way of planning?
  • Plan on the science needs assuming almost
    infinite networks!!
  • Fast research networks are arriving very quickly
  • Expand our horizons now!

18
Thank you
ATNF Tasso Tzioumis LBA eVLBI Phone 61 2
9372 4350 Email Tasso.Tzioumis_at_csiro.au Web
www.atnf.csiro.au/vlbi
