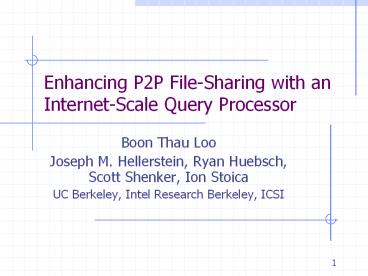

Enhancing P2P File-Sharing with an Internet-Scale
Query Processor

• Boon Thau Loo
• Joseph M. Hellerstein, Ryan Huebsch, Scott
  Shenker, Ion Stoica
• UC Berkeley, Intel Research Berkeley, ICSI

2
Introduction

• Internet-scale Query Processing
• Millions of machines
• Churn Nodes arriving and departing continuously.
• Lots of semantic homogeneity
• E.g. keywords in file names, packet headers on
  the Internet, etc
• This is the focus of the PIER project at Berkeley
  (VLDB 03)
• The real-world example today is file-sharing

3
P2P File-Sharing

• Real-world Challenges
• Millions of real users and data
• Large number of concurrent queries
• Plenty of research on this topic
• Databases, Networks, Distributed Systems
• My talk today is on exploring this real-world
  scenario
• Provide insights into future research in
  Internet-scale querying

4
Our Goal

• P2P Search - What is the best design?
• Target Environment
• Typical P2P file-sharing environments.
• Items stored in P2P network, queried by keywords
• Replicas of items follow a long-tailed
  distribution
• Popular items at head of distribution
• Rare items at tail of distribution

5
Unstructured Networks

• Ad-hoc topology
• Queries are flooded for bounded number of hops
• No guarantees on recall
• E.g. Gnutella and Kazaa

xyz
Query xyz
6
Structured Networks

• Distributed Hash Tables (DHTs)
• Hash table interface put(key,item), get(key)
• O(log n) hops
• Guarantees on recall

7
Keyword Search using DHTs

• Inverted Lists hashed by keyword (term) in the
  DHT

Query T1 AND T2
8
Solution Space Proposal
Flood-based Network
DHT
9
Outline

• Introduction
• Gnutella (Flood-based) Measurements
• Hybrid (Flood DHT) Solution
• Evaluation
• Analytical Model
• Real-world Measurements

10
Gnutella Network
Oct 2003 Crawl

• Popular open-source file-sharing network
• 450,000 users today
• Ultrapeer-based Topology
• Queries flooded among ultrapeers
• Leaf nodes shielded from query traffic
• Based on multiple crawlers from 30 vantage points
  on PlanetLab

Ultrapeer nodes
Leaf nodes
100 Files
0 Files
0-100 Files
11
PlanetLab

• PlanetLab Open, globally distributed platform
  for deploying planetary-scale network services
• 431 nodes at 181 sites, 5 continents
• URL http//www.planet-lab.org

12
Gnutella Measurements

• Quality of Searches
• Recall ( of all relevant items retrieved)
• Distinct Recall ( of all relevant distinct items
  retrieved)
• Response Time (Latency) to 1st result
• Software utilized
• Modified the LimeWire Gnutella Client
• Run as leaf or ultrapeer
• Monitor Gnutella traffic
• Inject queries and gather results

13
Gnutella Search Quality

• Log of Gnutella queries from LimeWire clients
• Reissued Gnutella queries
• 700 randomly chosen queries
• 30 LimeWire Ultrapeers on PlanetLab
• 3 different times
• Computed Query Recall
• Each query issued simultaneously from 30
  ultrapeers
• Union of results from 30 ultrapeers
• Union-of-30 is our approximation of perfect
  answer

14
Queries with Small Result Sets
15
Result Size CDF
16
Result Size CDF
Single Query
Union-of-30 Query
Large fraction of queries return few or no
results even when they exist
17
Query Latency
18
Summary of Measurements

• Searching on Flood-based networks
• Highly effective for popular (highly replicated)
  items
• Less effective for rare items
• Significant opportunity to do better
• Large fraction of queries return few or no
  results even when they exist
• Bad response times for queries on rare items
• Aggressive flooding is not the solution
• Diminishing returns with flooding
• Does not improve response times

19
Outline

• Motivation and Introduction
• Gnutella (Flood-based) Measurements
• Hybrid (Flood DHT) Solution
• Evaluation
• Analytical Model Simulations
• Real-world Measurements

20
DHT-based Search

• Advantages
• Avoid flooding query in network
• Guarantee recall (critical for small result sets)
• Disadvantages
• Hashing inverted lists into the DHT is costly
• So is intersecting inverted lists at query time
• Infeasible for Google-like datasets (IPTPS 03)
• Feasible for querying rare items
• Queries with ?10 results ship 7x fewer inverted
  list entries compared to the average query
• Query optimization can reduce communication
  overhead intersect rare terms first

21
Hybrid Search

• Hybrid Best of both worlds

Flood-based Network
DHT
(Search Rare Items)
(Search Popular Items)
22
Challenges

• Identifying Rare Items
• Query Results Size (QRS)
• Publish items from previous queries that return
  few results
• Term Frequency Statistics
• Single Term (TF)
• Term Pairs (TPF)
• Sample items on neighboring nodes (SAM)
• Network Churn (IPTPS 04)
• Use Ultrapeers as DHT nodes
• Avoid publishing items from short-lived nodes

23
Outline

• Motivation and Introduction
• Flood-based (Gnutella) Measurements
• Hybrid (Flood DHT) Solution
• Evaluation
• Analytical Model Simulations
• Real-world Measurements

24
Evaluation Methodology

• Combination of analysis, trace-based simulation,
  and live deployment
• Analytical cost model for understanding tradeoffs
  between query recall and system overheads
• Trace-based simulation to allow comparisons of
  rare-item selections schemes
• Including an infeasible oracle scheme
• Live deployment to ground hybrid search in
  practice

25
Analytical Model Simulation

• Components
• Probability of finding an item
• Cost of querying an item
• Publishing overhead of rare items
• Details of the model in the paper
• Trace-driven simulations
• 315,000 files, 75,000 nodes, 350 queries

26
Identifying Rare Items
()

• Upper-bound Perfect scheme with complete
  knowledge of network
• Lower-bound Random scheme
• Diminishing returns as more items are published
• All schemes in between Random and Perfect

27
Outline

• Motivation and Introduction
• Gnutella (Flood-based) Measurements
• Hybrid (Flood DHT) Solution
• Evaluation
• Analytical Model Simulations
• Real-world Measurements

28
Hybrid Search Implementation

• Prototype implementation based on PIER
• PIER P2P Information Exchange and Retrieval
• A relational query engine
• Designed for Internet-scale (millions of nodes)
• Built on top of DHTs
• Relational Operators
• Selection, Projection
• Join, Intersect
• Group-By, Aggregation
• DHT-based Search Engine with PIER

29
Hybrid Peer Implementation
?
?
?
?
30
PlanetLab Deployment
L
L
Horizon of P1
U2
L
L
P2
P1
U1
L
P3
L
L
L
L
L
L
Gnutella Leaf
Gnutella Ultrapeer
U
Gnutella links
Hybrid Ultrapeer (PIER Gnutella)
P
PIER links
31
Results

• Improved Response Time
• PIER (DHT) returns first result in 10 seconds
• 40 seconds in aggregate including 30 seconds
  timeout
• Gnutella (Flood) queries returns first result in
  65 seconds
• 25 seconds (38) reduction in latency
• Improved Recall Analysis
• 18 reduction in queries with empty results
• Using the naïve QRS rare-item selection scheme
• Opportunity to do far better
• Recall 66 potential reduction based on
  Union-of-30
• Approaches larger-scale deployments and using
  better rare-item schemes.

32
Conclusion

• Address the challenges of scalable P2P Search
• Focus on P2P file-sharing, a real-world
  application
• Discuss two alternative designs
• Gnutella (Flood-based) Measurements
• Highly effective for popular items
• Ineffective for rare items
• Propose Hybrid Search Infrastructure
• Flooding for popular items
• DHT for rare items
• Evaluate hybrid search
• Analytical model and trace-driven simulations to
  compare schemes for identifying rare items
• Deployment on PlanetLab for validation

33
Questions?
34
Backup Slides
35
DHT-based Search with PIER
Item(itemID, filename, filesize, ipAddress, port,
) Inverted(keyword, itemID) with keyword as the
DHT publishing (index) key
Query T1 T2
36
Gnutella Optimizations

• Ultrapeers and Leaf nodes
• Dynamic Querying
• More aggressive flooding for queries that return
  few results
• Query Routing Protocol (QRP) tables
• Bloom-filter-like structures
• Cache at neighboring nodes for directed flooding.

37
Handling Network Churn

• Only ultrapeers participate in DHT overlay.
  Ultrapeers publish items for leaves.
• Avoid publishing items from short-lived nodes.
