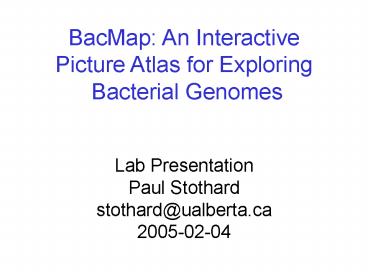

BacMap An Interactive Picture Atlas for
Exploring Bacterial Genomes
Lab Presentation Paul Stothard stothard_at_ualberta.c
a 2005-02-04
2
Reasons for Creating BacMap

• Graphical maps of DNA sequence features provide
  a means to quickly view the characteristics of
  specific genomic regions or genes.
• Maps can be used to identify candidate operons
  in bacterial species.
• Maps of different species can be compared to
  identify evolutionarily conserved gene order.
• Genes can be linked to detailed textual
  annotations.

3
Existing Solutions
NCBIs bacterial genome browser
4
Existing Solutions
NCBI bacterial genome browser

• Difficult to navigate because only two zoom
  levels are provided.
• Map switches between circular and linear view.
• Gene labels often not shown because of space
  restrictions.
• Cannot move map to region of interest using text
  search or sequence search.

5
Existing Solutions
TIGR comprehensive microbial resource
6
Existing Solutions
TIGR comprehensive microbial resource

• Difficult to navigate because only two zoom
  levels are provided.
• Map switches between circular and linear view.
• Cannot move map to region of interest using text
  search or sequence search.

7
CGView
Circular Genome Viewer
8
CGView

• Java application and library for generating high
  quality, zoomable maps of circular genomes.
• Converts XML or tab delimited input into a
  graphical map (PNG, JPG, or Scalable Vector
  Graphics format).
• Supports labels, legends, and footnotes.
• Zooming relies on standard hyperlinks rather
  than browser plug-ins.

9
Software Used by BacMap

• CGView genome maps, maps for BLAST and text
  search results.
• BacMapGraph sequence statistics graphs.
• BASyS automated annotation of gene sequences.
• BLAST sequence similarity searching.
• Glimpse text searching.
• BioPerl parsing feature information from
  GenBank files, parsing BLAST results.
• Custom Perl modules creating data files for
  the various programs, obtaining genome data from
  NCBI.
• Custom Perl scripts building the BacMap web
  site while logging errors. Processing BLAST and
  text searches.

10
Organization of BacMap
BacMap
docs
lib
Perl scripts and modules
NCBI data
processed data
11
Filling the BacMap Database

• Download new genomes from NCBI.
• Create species cards.
• Create genome cards.
• Apply patch file to fix problems.
• Create gene cards.
• Format databases for BLAST.
• Create index files from gene cards for text
  search.
• Create XML input for CGView.
• Create hyperlinked CGView maps.
• Create sequence statistics graphs.
• Import gene cards from BASyS.

12
Handling Configuration Issues

• BacMap code avoids hard-coded file paths.
• All path information is stored in a file called
  bacmap.conf.
• A BacMap Perl module is used to obtain
  information from the bacmap.conf file
• use BacMapUtilGetConfInfo
• my conf new BacMapUtilGetConfInfo()
• my pathToJava conf-gtgetPath(java)

13
Handling Errors

• BacMap uses Error.pm to provide try, throw, and
  catch capabilities
• use Error
• try
• makeDir()
• catch Error with
• my ex shift
• print ex-gt'-text' . "\n"
• print ex-gt'-stacktrace' . "\n"
• other error handling code
• sub makeDir mkdir (somePath, 0775) or throw
  ErrorSimple("Could not create somePath dir.")

14
Logging Update Progress and Errors

• A BacMap Perl module is used to write update
  progress and error information to a log.txt file
• use BacMapUtilLogManager
• my log new BacMapUtilLogManager()
• log-gtlogNotice("Updating CGView linked maps.")

15
Accessing BacMap
http//wishart.biology.ualberta.ca/BacMap/
16
Species Information
17
Genome Maps
18
Gene Annotations
19
Text Search
20
BLAST Search
21
Sequence Statistics
22
Downloads
23
Version 2

• Relational database instead of flat files.
• Support for more complex text queries.
• Web interface for managing the site.
