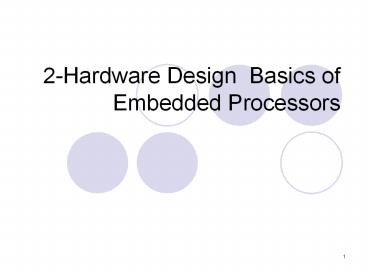

Title: 2Hardware Design Basics of Embedded Processors


1
2-Hardware Design Basics of Embedded Processors
2
Outline
  • Introduction
  • Combinational logic
  • Sequential logic
  • Custom single-purpose processor design
  • RT-level custom single-purpose processor design

3
Introduction
  • Processor
  • Digital circuit that performs a computation tasks
  • Controller and datapath
  • General-purpose variety of computation tasks
  • Single-purpose one particular computation task
  • Custom single-purpose non-standard task
  • A custom single-purpose processor may be
  • Fast, small, low power
  • But, high NRE, longer time-to-market, less
    flexible

4
CMOS transistor on silicon
  • Transistor
  • The basic electrical component in digital systems
  • Acts as an on/off switch
  • Voltage at gate controls whether current flows
    from source to drain
  • Dont confuse this gate with a logic gate

5
CMOS transistor implementations
  • Complementary Metal Oxide Semiconductor
  • We refer to logic levels
  • Typically 0 is 0V, 1 is 5V
  • Two basic CMOS types
  • nMOS conducts if gate1
  • pMOS conducts if gate0
  • Hence complementary
  • Basic gates
  • Inverter, NAND, NOR

6
Basic logic gates
F x y AND
F x ? y XOR
F x Driver
F x y OR
F (x y) NAND
F x Inverter
F (xy) NOR
7
Combinational logic design
A) Problem description y is 1 if a is to 1, or
b and c are 1. z is 1 if b or c is to 1, but not
both, or if all are 1.
8
Combinational components
9
Sequential components
Q lsb - Content shifted - I stored in msb
Q 0 if clear1, I if load1 and
clock1, Q(previous) otherwise.
Q 0 if clear1, Q(prev)1 if count1 and
clock1.
10
Sequential logic design
A) Problem Description You want to construct a
clock divider. Slow down your pre-existing clock
so that you output a 1 for every four clock cycles
  • Given this implementation model
  • Sequential logic design quickly reduces to
    combinational logic design

11
Sequential logic design (cont.)
12
HDL based design (review examples)
  • D_Latch
  • Greatest common divisor circuit (GCD)

13
1-D_Latch VHDL module examples
  • --D_latch.vhd
  • library IEEE
  • use IEEE.STD_LOGIC_1164.all
  • ENTITY D_latch IS
  • PORT ( d,clk IN STD_LOGIC
  • q OUT STD_LOGIC)
  • END D_latch
  • ARCHITECTURE concurrent OF D_latch IS
  • SIGNAL qwire,qb STD_LOGIC
  • SIGNAL sb,rb,db STD_LOGIC
  • BEGIN
  • sb lt d nand clk rb lt not (d) nand
    clk
  • qwire lt sb nand qb qb lt rb nand qwire
  • qltqwire
  • END concurrent

14
1-D_Latch VHDL module examples
  • ARCHITECTURE behaviour2 OF D_latch IS
  • BEGIN
  • Process (d,clk)
  • variable qwire,qb STD_LOGIC
  • variable sb,rb,db STD_LOGIC
  • BEGIN
  • if (clk'1') then qltd
  • end if
  • END Process
  • END behaviour2
  • - - test file (tD_latch.vhd)
  • library IEEE
  • use IEEE.STD_LOGIC_1164.all
  • entity DlatchTB is
  • end DlatchTB
  • Architecture TB_arch of DlatchTB is

15
2- Greatest common divisor circuit (GCD)
  • continually subtracting the smaller of the two
    numbers, A or B, from the largest.
  • Stop when the smallest 0
  • file gcd_test_data.txt
  •   21    49    7
  •   25    30    5
  •   19    27    1
  •   40    40   40
  •
  • file gcd_test_data_hex.txt
  •   15    31    7
  •   19    1E    5
  •   19    27    1
  •   28    28   28
  •

16
Greatest common divisor circuit (GCD) C code
  • include ltstdio.hgt
  • main ()
  •    int A_in, B_in, A, B, Swap, Y, Y_Ref
  •    FILE file_pointer
  •    file_pointer fopen("gcd_test_data.txt",
    "r")
  •    while (!feof(file_pointer))
  •         fscanf (file_pointer, "d d d\n",
    A_in, B_in, Y_Ref)
  •         A A_in B B_in
  •         if (A ! 0 B ! 0)
  •             while (B ! 0)
  •                while (A gt B)
  •                    A A - B
  •
  •                Swap A A BB Swap
  •
  •
  •          else A 0
  •         Y A //should be equal to Y_Ref

17
Greatest common divisor circuit (GCD) Verilog
module
  • module GCD_ALG(A_in,B_in,Y)
  • parameter Width 8
  • input Width-10 A_in, B_in
  • output Width-10 Y
  • reg Width-10 A, B, Swap, Y
  • always _at_(A_in)// or B) begin
  • begin
  •      A A_in B B_in
  •      if (A ! 0 B ! 0)
  •        while (B ! 0) begin
  •          while (A gt B) A A - B
  • Swap A  A B   B Swap
  •          end
  •      else
  •        A 0
  • Y A
  • end
  • endmodule

18
Greatest common divisor circuit (GCD) Verilog
module
  • module test_GCD // Test GCD algorithm
  • parameter GCD_tests 4
  • parameter Width 8
  • reg Width-10 A_in, B_in, Y_Ref
  • integer N
  • integer SimResults
  • reg Width-10 AB_Y_Ref_Arr1GCD_tests3
  • wire Width-10 Y
  • GCD_ALG U0 (A_in,B_in,Y)
  • initial monitor (" GCD Ad Bd Yd. Y
    should be d", A_in, B_in, Y, Y_Ref)
  • initial begin
  • readmemh("gcd_test_data_hex.txt",
    AB_Y_Ref_Arr)
  • SimResults fopen("gcd_simres.txt") // Open
    simulation results file
  • for (N0 NltGCD_tests NN1) begin
  •    A_in AB_Y_Ref_Arr(N3)1
  •    B_in AB_Y_Ref_Arr(N3)2

19
Greatest common divisor circuit (GCD) VHDL module
  • ENTITY GCD IS
  • PORT
  • ( A_in,B_in IN integer range 0 to 15
  • Y OUT integer range 0 to 15
  • )
  • END GCD
  • ARCHITECTURE behaviour OF GCD IS
  • BEGIN
  • Process (A_in,B_in)
  • variable A, B, Swap integer range 0 to 15
  • BEGIN
  • A A_inB B_in
  • for i in 0 to 15 loop
  • if (A / 0 and B / 0) then
  • if (AgtB) then
  • A A - B
  • else
