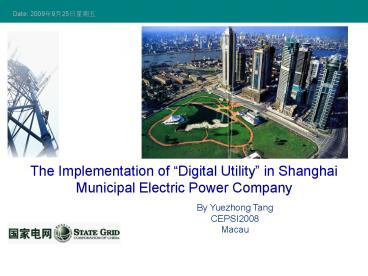

Beyond Technology
The Implementation of Digital Utility in
Shanghai Municipal Electric Power Company
By Yuezhong Tang CEPSI2008 Macau
2

• Part 1 Background
• Part 2 Vision
• Part 3 Design
• Part 4 Implementation

3
Background

• Company Overview
• Core business
• Success factors
• Challenges

4
SMEPC-Overview

• A subsidiary of the State Grid Corporation of
  China (SGCC).
• The only electricity Utility in Shanghai
  Municipal City.
• Engaging in electric power transmission,
  distribution, power supply and service.
• Take charge of planning construction, operation
  of TD systems in Shanghai.
• Serves 7.5 million clients by 16000 company
  staff.
• Electricity consumption 107.26 GWh with peak load
  21208MW in 2007.

5
Core business
Construct and operate the transmission and
distribution system Manage the value chain of
electricity supply. Deliver high quality of
power energy and service to customers Success
Factors Security, Reliability, Quality, Economy
6
Challenges

• The scale of the both transmission grid and
  distribution network expanding sharply.
• The requirements on level of security and
  reliability of power supply increasing
  constantly.
• Government regulations on energy saving and
  environmental protection tightening.
• Customer satisfaction takes more and more
  accounts in Service Quality Evaluation.
• The bottom line weights a much more bigger factor
  than ever before when assessing performance of
  the company and employees.

7
Ways Out

• To run the grid effectively.
• To run the business efficiently.
• Launched the DigiUtility Program
• in 2005

8
Vision

• Vision
• Definition
• Architecture

9
Vision of DigiUtility

• The concept of DigiUtility covers both the
  physical power grid and the business process. The
  vision of DigiUtility is presented as three
  aspects, namely the digitization of grid
  controlling, automation of business processing
  and integration of company management.
• .

Grid controlling digitization
Business processing automation
DigiUtility
Corporation management integration
10
The Definition of DigiUtility

• Grid controlling digitization
• - It requires the digitization of measuring,
  monitoring, protecting and controlling both the
  power equipments and the power system.
• The major systems involved Substation
  Automation system (SA), distribution automation
  system (DA), Digital Protection Relay (DPR) and
  Equipment Condition Monitoring system (ECM),
  SCADA/EMS, Outage Management System (OMS),
  Automatic Meter Reading system (AMR) and Load
  Control system, etc.

11
The Definition of DigiUtility

• Business processing automation
• It presents the automating of business processes
  such as system operation, equipment maintenance,
  billing customer service, finance accounting,
  human resource and procurement management, etc.
• Main systems included operation management
  system (OMS), Distribution management system
  (DMS), AM/FM/GIS, Plant maintenance system and
  Customer Information System (CIS/CRM), ERP system
  and power market trading system, etc.
• Company management integration
• It is presented as the integration of corporate
  management applications. It covers the
  information sharing, integrating of procedures
  and applications on business processing level as
  well as on analysis decision making level.
• Main systems corporate-wide integrated data
  warehouse, application integration platform,
  cross business processing applications and
  decision-making support system, etc..

12
Architecture
Business processes Automation Operation
management Integration
Business Intelligence
Grid controlling digitization
Enterprise Integration Application
Advanced EMS
SCADA/EMS
Business Applications (PMS/CIS/ERP etc.)
ICT infrastructure
Power grid(transmission ,distribution, retail)
13
Design

• Grid controlling digitization
• Business processing automation
• Corporation management integration

14
Grid digitization
Intelligent power system operation etc.
System analysis/optimization
AEMS
System monitoring/controlling
SDH/ATM/PLC/ GPRS / CDMA / WiFi TCP/IP
SCADA/DSCADA/AMR etc.
Communication Infrastructure
sensing/metering/measurement
Optical CT, smart meter, intelligent sensor etc.
In technical aspect, it is necessary to study and
apply new technology in every level in order to
realize higher accuracy, enhanced intelligence
and faster response.
15
Business Process Automation (I)- Production
Management System
ERP system
Fault diagnosis
Condition based maintenance
Statistics Analysis
Application Integration platform
Work order management
Analysis simulation
CMS system
planning
Equipment information
imperfection
inspection
maintenance
Outage management
Electricity market
Dispatching management
equipment operation management
Application system of production management
Integrated Data Platform
SCADA /EMS
AM/FM/GIS platform
SA
Basic platform
Distribution Automation
16
Business Processing Automation(II)- Customer
Management System
Application integration platform
8. Marketing Analysis and Decision module
ERP
Data Mining system
Customer analysis/value judgement
sale analysis, power loss analysis
Demand side management module
6. demand Side Management module
5. Market Management module
Electricity purchasing plan
7. Customer Relationship Management module
evaluation of customers credit level
DSM comprehensive management
PMS
Analysis of the balance of purchasing and sale
of electricity
Individualized Service Of customer
Market condition analysis
Purchasing price, Contract management
PSP
4. Electric Marketing Management module
Meter management system
Integrated data platform
SCADA
CIS (Customer Information System)
Billing system
1. Electrical Meter Reading module
3. 95598 Customer Service module
95598 Customer service system
Power load Management system
Business hall
Bank
website
DSCADA
telephone
Supermarket
Shanghai ePay platform
2. Customer Payment module
Mobile Service vehicle
Hand-held meter Reading system
AMR
Remote meter reading system
17
Business Process Automation (III)-ERP
SMEPCs ERP system SAP R/3
Finance (FI/CO/TR)
internal order management
cost factor management
cost center accounting
General ledger
receivable and payable
Capital and budget management
logistics(MM)
purchase application management
purchase order management
purchase process control
supplier selection
supplier evaluation
stock management
projects(PS)
project planning
Schedule management
resource management
cost control
income fee management
Human resources (HR)
time management
organization management
HR management
payment management
Plant maintenance (PM)
Equipment management
maintenance management
maintenance finance balance management
18
Corporation Management Integration Model
Enterprise level Data warehouse
Enterprise level Business Intelligence
Shanghai Power Enterprises Information Portal
Data Integration
Core business system
Production Management System (PMS)
Customer Information System (CIS)
SCADA /EMS
ERP (HR/MM/PS/PM/FICO)
Enterprise Application Integration
2009-9-25
19
Status quo in 2005 (I)

• Leading local electric power company in China
  well-performed in power system operation,
  customer service and turnovers, etc..
• Have a high level on infrastructure construction
  and operation management
• substation automation system and EMS/SCADA is
  widely used
• Core business process systems like ERP, PMS, CIS,
  EMS etc. have been implemented and used for
  years. The ERP system can support major
  management processes in FI/CO,PS,PM,MM,HR which
  based on SAP R/3 platform.

CIS/CRM
ERP
PMS (AM/FM/GIS)
EMS/ SCADA
20
Status quo in 2005(II)

• Advanced application of power system analysis and
  controlling needs deep exploitation.
• The distribution automation systems and customer
  side digital facilities are still at the early
  stage and are relatively small-scaled
• Complicated business application and newly
  explored fields, such as business intelligence
  and field force enhancement, generate new demands
  on IT systems.
• Cross department and full value chain procedure
  supporting capability is deficient.

21
Achievements

• Grid supervision digitization
• Business processing automation
• Corporate management integration

22
Grid supervision digitization (I)-AMR

• AMR
• The pilot of energy acquisition system has
  completed and it will cover customers above 50
  KVA .
• The pilot of scale application of AMR completed
  in 2006. It has been rolled out for two phases
  since 2007.
• The functions of metering , reading and load
  controlling is gradually being integrated
  together both in a single IED and one unified
  back system.

23
Grid supervision digitization (II)-DSCADA

• D-SCADA SCADA for Distribution system.
• The pilot of DSCADA system has been completed and
  is now promoted widely.
• PLC and wireless communication technology have
  been widely adopted in field application.
• Digital Substation for substation automation
• Special subject research on digital substation
  has been completed (IEC-61850, OCT/OPT). Two
  110kV pilot digital substations is on
  construction.

24
Grid supervision digitization (III)-AEMS

• AEMS Advanced EMS
• Strengthen and upgrade the function of present
  EMS by advanced hybrid control system theory
• Multi-layer, multi-objective optimizing approach
  to coordinate AGC and AVC controls to improve the
  stability safety of the Shanghai power system,
  power quality and economy and preventing from
  large scale blackout accident.
• The first phase of HAVC and HAGC implemented at
  the end of 2007.

Hybrid control policy generation
Dynamic optimized flow
Security check
Status estimation
Very short period load forecast , bus load
forecast
HAGC order
HAVC order
Data upload
Order download
Power generator , substation
25
AEMS Principles
Difference between AEMS and traditional EMS
26
Business process Automation(I)
Absorb the advanced idea of CMMS and EAM to
develop repair and test and inspection system
Backoffice application

• PMS
• Basic functions of AM/FM/GIS
• Equipment inspection, repair and testing
  management
• System operation maintenance
• Establishing FFWMS ( Field Force Work Management
  System)
• CIS/CRM
• Construct market data mart to enable the analysis
  of business process/management
• The construction of customer relationship
  management and demand side management systems
  have been launched

EAI message bus
Adapter
Mobile middleware
Wireless Gateway
Establish a uniform technology platform of mobile
working to provide information and technology
support to the field workers of production and
marketing department.
27
Business process Automation (II)
SMEPCs ERP system SAP R/3
Capital Budget mgt.(SEM/BPS)
Business intelligence / Business Warehouse
Capital Planning
Finance budget
Project budget Control
Decision analyze
Finance (FI/CO/TR)
internal order management
cost factor management
cost center accounting
General ledger
receivable and payable
Capital and budget management
logistics(MM)
purchase application management
purchase order management
purchase process control
supplier selection
supplier evaluation
stock management
projects(PS)
project planning
Schedule management
resource management
cost control
income fee management
Human resources (HR)
time management
organization management
HR management
payment management
Plant maintenance (PM)
Equipment management
maintenance management
maintenance finance balance management
28
Corporation Management Integration ( I )

• Integrated Data Platform
• Developed the real-time data platform (similar
  to PI of OSIsoft )based on Oracle database and
  carry out necessary expansion and optimization
• Construction and management of core data
  model-data model is in compliance with IEC 61968
  / 61970 standard
• Universal data access-UIB function(GDA?TSDA?HSDA)
• Integrate SCADA?DSCADA?AMR.

Relational database
Real-time data
PMS data
Market-Customer data
Definition of metadata
CIM model integration
Integrated Data Platform
Object model
Enterprise service bus
Enterprise integration bus service
29
Corporation Management Integration (II)

• EAI platform
• With ESB as the center, realize the access of
  service of application system, data integration
  and process integration.
• System management module of EAI platform, provide
  functions of configuration, management, system
  monitoring, and maintenance.

EAI platform is the core engine of enterprise
application integration and the basis of
enterprise information construction to SOA.
30
Corporation Management Integration (III)

• Data interconnection of PMS and CMS
• important data basis of enterprise application
  integration
• objective is to establish the association between
  grid and customer information
• including data census and dynamic maintenance
  stages
• realize information exchanges by EAI platform,
  and information access by IDP.
• Now is piloting in several units and will be
  publicized in the enterprise

Topology analysis
Grid information
Customer information
Interconnection information
Interconnection information
Interconnection information
Customer information
Customer information
Fault repairing, outage notice, power supply
solution
IDP
CMS
31
Corporation management integration (IV)

• Develop several integrated application
• Maintenance management
• Outage management
• Power supply solution management
• Management of load balance
• Load shedding management
• Power loss management

Customer-grid information interconnection
Application is based on EAI and IDP, grid/user
information interconnection is data basis.
Power loss fine management
32
Summary

• The Program of DigiUtility based on advanced
  Electrical Technology and ICT technology could
  support the evolving of SMEPC to agile, real-time
  and lean enterprise
• The DigiUtility helps SMEPC achieve sustainable
  progress in safe and reliable power supply,
  high-quality service, efficient operation,
  leading overall performance in Utility Industry
• SMEPC will continue to promote the implementation
  of DigiUtility in the whole value chain based on
  the experiences accumulated in the earlier stage
  and the best practices in the world.
