Title: AASHTO SubCommittee on Highway Transport


1

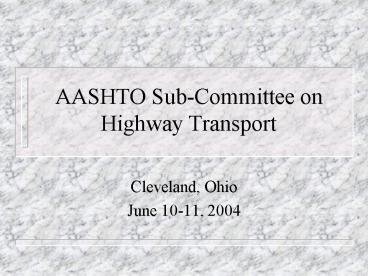

AASHTO Sub-Committee on Highway Transport
  • Cleveland, Ohio
  • June 10-11, 2004

2
Uniformity in Bridge RatingsSome Review - Some
New Stuff
  • James R. Braden
  • Asst State Maintenance Engineer Permits
    Operations
  • Alabama Department of Transportation

3
Important Note
  • Increased uniformity in permitting is a good
    thing.
  • Purpose is to explain and clarify those issues
    that impact the move towards uniformity.
  • Dont take any of these comments as saying that
    increased uniformity is impossible or
    undesirable.

4
Why So Many Standards?
  • Configurations vary
  • Span lengths
  • Widths
  • Skews
  • Materials vary
  • Steel
  • Concrete
  • New standards replace older ones
  • Changes in code provisions
  • Correct problems that were discovered in the
    field
  • Correct construction problems

5
Specifications
  • Specification Choices
  • Allowable Stress, Load Factor, Load and
    Resistance Factor
  • Specification Customization
  • States can fine tune
  • Example allowable tension in prestressed
    concrete beams

6
Rating Practices
  • Rating required by FHWA.
  • Uniform reporting of results is required, but
    analysis method not specified
  • Much variation between states
  • End up with some variation within states
  • Variety of rating tools - BARS, Virtis, BAR7,
    BRASS, BRUFEM, LARS, etc.

7
Can We Try to Quantify?
  • Try to create a scenario that isolates rating
    practices
  • Give each state an identical truck and bridge
  • Ask them to rate it according to their practices
    and policies
  • Provide results to ALDOT for summary and
    presentation
  • Discussed at N.O. SASHTO meeting

8
Chose an ALDOT H15 Bridge(C-2411 Standard)
9
Cross Section View
10
Chose an Overweight Truck
11
Solicited Participation
  • SASHTO Multi-State Permit Group Members
  • Attendees at the BRASS/Virtis/Opis Users Group
    Meeting in Albuquerque, NM

12
Assumptions Specified
  • Date of Construction is 1964
  • Bridge was constructed with 34 ft long simple
    spans
  • The condition of the bridge is good.
  • Axle widths on the overweight vehicle are
    standard.

13
Assumptions Made by States
  • Bridge was built according to their standard
    construction practices in 1964.
  • Material strengths used in the bridge matched
    those in common use in their state in 1964.
  • Allowances for rail and curb deadloads
  • Allowances for overlays

14
Responders On First Survey
  • Kentucky Transportation Cabinet
  • Kansas DOT
  • Mississippi DOT
  • Nebraska DOR
  • Ohio DOT
  • South Dakota DOT

15
Responders On First Survey
  • Tennessee DOT
  • Virginia DOT
  • West Virginia DOT
  • Wyoming DOT

16
Permitting Results Summary
17
Permitting Results Summary
18
Permitting Results Summary
19
Summary
  • All participating states would permit that truck
    on that bridge
  • Some states would require restrictions
  • Variation of results was reasonable
  • Least rating was 218,000 lbs (no margin for
    error)
  • Maximum rating was for 298,000 lbs

20
Summary Statistics
  • No participating state would have denied a permit
    for that truck on that bridge
  • Average rating was 253,000 lbs
  • Standard Deviation 0.104
  • 95 of the published ratings were within 22,000
    lbs of the average
  • Low range 231,000 lbs
  • High range 275,000 lbs

21
Summary
  • Even though there was variation, a permit would
    have been received for that truck on that bridge
  • Reports of rampant non-uniformity depend on
    where you are in those ranges

22
Summary
  • Dont take this one study and extrapolate it to
    areas where it does not apply
  • Only way an extrapolation would be valid would be
    if
  • This is the only truck that haulers used
  • This bridge is the only one that states have.

23
Brief Conclusion to the Exercise
  • Non-scientific statement
  • Existing inventory of bridges is a tremendous
    hurdle to address in the quest for uniformity
  • Differences between states are not arbitrary.
    They are the product of hard lessons learned or
    successful practices repeated.
  • Variations are perhaps not as great as anecdotal
    evidence indicates

24
Bridge Raters Meeting in N.O.
  • Purpose
  • In-depth discussion among those who actually
    perform the bridge analysis on permit requests
  • Share tips and tricks of the trade
  • Discussion of rating practices between states
  • Foster relationships within this silent
    community portion of the overload permitting
    process.

25
Bridge Raters Meeting in N.O.
  • Discussions
  • Bridge Rating exercise results
  • Identification of special routes for permitting.
  • Bottom-up approach from industry to promote
    more work on uniformity issues.
  • Top-down approach by specification and research
    organizations to conduct work and publish
    research results on uniformity issues.

26
Review of First Survey
  • Decisions
  • Recruit additional states to participate in
    bridge rating exercises
  • Define certain parameters more closely.
  • Ask for more detailed background calculations
    on other parameters (dead load distribution,
    distribution factor calculations, effective
    flange widths, etc.)

27
Second Survey Sent 10-16-2002
28
Responders To-Date
  • Iowa DOT
  • Kansas DOT
  • Minnesota DOT
  • Mississippi DOT
  • Missouri DOT
  • Ohio DOT
  • Oklahoma DOT
  • South Dakota DOT

29
Software Used
30
Permitting Status by State
31
Restrictions by State
32
Rating Factor by State (Permitted)
33
Rating Factor by State (Maximum)
34
How Can You Help?
  • Industry
  • Disseminate information and processes versus
    anecdotal reports
  • Support top down studies on these issues by
    transportation organizations (AASHTO, etc.)

35
How Can You Help?
  • States
  • Promote this effort among your bridge rating
    coworkers and senior staff.
  • Encourage attendance of bridge rating personnel
    at regional and national meetings.
  • Support and promote top-down efforts to study
    and understand issues regarding uniformity in
    bridge rating.

36
How Can You Help?
  • States and Industry
  • Support and promote top-down efforts to study
    and understand issues regarding uniformity in
    bridge rating.
  • Update
  • Decision Pursue a synthesis study by NCHRP.
  • Last one completed is many years old and only
    covers one national region
  • Not started yet.

37
How Can You Help?
  • States
  • Encourage attendance of bridge rating personnel
    at regional and national meetings.

38
How Can You Help?
  • Industry
  • Disseminate information and processes versus
    anecdotal reports

39
T H E E N D
  • SASHTO Multi-State Permit Group
