1

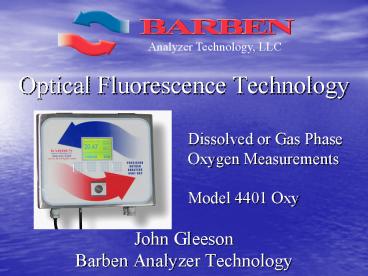

  • Optical Fluorescence Technology
  • Dissolved or Gas Phase
  • Oxygen Measurements
  • Model 4401 Oxy
  • John Gleeson
  • Barben Analyzer Technology

2
Membrane TechnologyClark Electrode what is it?
  • Amperometric Measurement
  • Self-Consuming
  • Maintenance Intensive
  • Unstable Reading

3
Optical Sensing is More Reliable
  • Clark Electrodes Consume Oxygen and will give you
    false readings in stagnant water, Optical Sensors
    DO NOT consume oxygen
  • Not Affected by Turbulence, Vacuum, or Pressure
  • There are no parts to replace on the probe. This
    reduces hours of lost time on maintenance and the
    cost of replacement parts.

4
Why Do We Use Lifetime DecayVsIntensity Based
Measurement
  • The decay time does not depend on fluctuations in
    the intensity of the light source and the
    sensitivity of the detector
  • The decay time is, to a great extent, independent
    of the concentration of the indicator in the
    sensitive layer ? Photo bleaching and leaching of
    the indicator dye has no influence on the
    measuring signal
  • The decay time is not influenced by variations in
    the optical properties of the sample including
    turbidity, refractive index and coloration.

5
Optical Sensing hasMinimal Maintenance
Requirements
  • No electrolyte solutions
  • No membranes or sensors to change
  • No more constant calibration
  • Easy maintenance of probe.
  • Sensor Not damaged by direct or indirect sunlight

6
Fluorescent Dissolved Oxygen Monitoring
  • Basic Principles of Operation
  • And
  • Technology

7
  • What is an optical-chemical sensor?
  • How does it work?
  • What are its advantages?

8
Optical Chemical Sensors (Optodes)
Non-Invasive Measurement Through Glass or PET
Invasive Probe Type
9
Principle of operation 1)
Luminescence process without oxygen 2)
Luminescence process with oxygen, attenuates the
dye The amount of oxygen is proportional
to the attenuation of the dye
10
Optode Detection Method
Fluorescence Decay
O2a 0
11
Optode Detection Method
Fluorescence Decay
O2a 0
O2b gt 0
12
Optode Detection Method
tf(p(O2))
13
Optode Detection Method
14
Optode Detection Method
15
Optode Detection Method
16
Measurement Ranges
17
Measurement Ranges
Different range of sensors available
18
Technology ComparisonOptical Sensor vs. Membrane
19
Measurement ComparisonOptical vs. Membrane
1. DO in front of the filler (Brewing Process)
Comparison with (standard) electrode
20
Measurement ComparisonOptical vs. Membrane
2. DO in bottles (Brewing Process)
Comparison with (standard) electrode
21
Comparison Optical vs. Electrode3. Air
saturation (Atmospheric) to zero (N2 99.999)
22
Non-Invasive Measurement
4. DO in bottles with swing stoppers
Not possible Comparison with (standard) electrode
23
Measurement fittings for process
5. DO measurement through glass
Not possible Comparison with (standard) electrode
24
  • Optical Applications
  • Dissolved or Gas Phase
  • Boiler Feed, Beverage, Chemical, Fermentation,
    Food, Petrochemical, Pipelines, Purity,
    Semiconductor, etc

25
Sensors
26
Questions?Thank you
