1

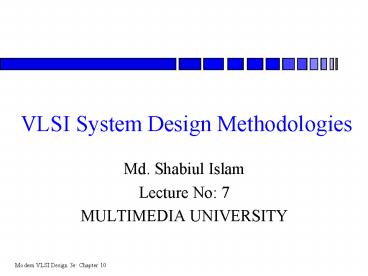

VLSI System Design Methodologies
  • Md. Shabiul Islam
  • Lecture No 7
  • MULTIMEDIA UNIVERSITY

2
Topics
  • CAD systems.
  • Simulation.
  • Placement and routing.
  • Layout analysis.

3
Introduction
  • A modern CAD system is built from several million
    lines of code, so it isnt reasonable to assume
    that a designer will understand every nuance of
    each tool.
  • Any tool must operate on an abstraction logic
    optimizers, for example, have almost no knowledge
    of layout, except perhaps for parasitic
    capacitance estimates.

4
  • The properties of the tools model are intimately
    linked to the algorithm used- we select a model
    that can be efficiently solved.
  • CAD algorithms are carefully chosen to be
    efficient because chip design problems can grow
    to be extremely large, requiring hours or days of
    CPU time to solve.

5
CAD systems
  • Tools arent very useful if they dont talk to
    each other.
  • Design interchange languages
  • VHDL (TM), Verilog (TM) (function and structure)
  • EDIF (netlists)
  • GDS, CIF (masks).

6
CAD tool interactions
xlate a
tool 1
tool 2
tool 1
tool 2
xlate b
xlate c
database
xlate d
xlate e
tool 3
tool 4
tool 3
tool 4
database (hub-and-spoke)
translator
7
Back annotation
  • Design data generated at one stage should be kept
    for later checking. One important function of
    integrated CAD systems is Back-annotation-the
    amendment of a description, usually a circuit or
    gate net list, with new information.
  • For example, simulation and delay analysis
    performed before layout design.

8
Back annotation
  • Often want to iteratively improve design.
  • Back annotation updates a more-abstract design
    with information from later design stages.
  • Example annotate logic schematic with extracted
    parasitic Rs and Cs.
  • Back annotation requires tools to know more about
    each other.

9
Event-driven simulation
  • The behavior of digital systems presents two
    major opportunities to simplify simulation.
    First, digital circuits compute only discrete
    values ( at least, when they work properly).
  • Second, logic values may changes relatively
    infrequently, and outputs change only when input
    change.

10
Event-driven simulation
  • Event-driven simulation is designed for digital
    circuit characteristics
  • small number of signal values
  • relatively sparse activity over time.
  • Event-driven simulators try to update only those
    signals which change in order to reduce CPU time
    requirements.

11
Event-driven simulator structure
  • Virtually all digital logic simulators are
    event-driven, they evaluate a component only when
    an event occurs on its inputs.An event is a
    change in a signal value.
  • A timewheel is a queue of events.
  • Simulator traces structure of circuit to
    determine causality of eventsevent at input of
    one gate may cause new event at gates output.

12
Event-driven simulation example
A
C
D
B
logic network
behavior
13
Event-driven simulation example, contd
  • Events at primary inputs
  • A changes at t1
  • B changes at t2.
  • Immediate causality
  • C changes at t3 when both inputs to NOR are 0.
  • Event propagation
  • D changes at t4.

14
Delay models
  • Unit-delay simulators assume that each component
    has a one-unit delay. Model function but not
    performance.
  • Variable-delay simulators allow each component to
    have its own delay. Accuracy of performance
    estimates from variable-delay simulators depends
    on how well circuits can be extracted to digital
    model.

15
Switch simulation
  • Logic gate models for simulation are important,
    but they may give misleading simulation results
    for systems built from MOS transistors. Even if
    we reduce the transistor to an ideal switch, a
    undirectional logic gate can not model charge
    sharing, which is a result of the
    bidirectionality of MOS transistors.

16
Switch simulation
  • Special type of event-driven simulation optimized
    for MOS transistors.
  • Treats transistor as switch. Takes capacitance
    into account to model charge sharing, etc.
  • Can also be enhanced to model transistor as
    resistive switch.

17
Switch simulation example
18
Switch simulation example, contd
  • Node g may be connected to either power supply,
    but signals on that node are terminated by gate
    of transistor.
  • To solve for values of a and b nodes, must first
    solve for value of g node.
  • If g1, then ab.
  • If g0, other parts of circuit determine a and b
    independently.

19
Switch simulation and charge sharing
  • Closed transistor connects source and drain
    nodes. Want to determine voltages of source/drain
    nodes taking into account capacitance.
  • Capacitance determines node size. Use size of
    connected nodes to determine new value of nodes.
  • Result may be X (unknown).

20
Layout synthesis
  • Layout is among the most tedious of design tasks,
    so it is natural to want to automate layout
    design as much as possible.
  • Automatic layout methods vary in the quality of
    the layout produced (both in chip area and
    delay), in the degree of automation, and the
    total manufacturing cost of the design.

21
Layout synthesis
  • Two critical phases of layout design
  • placement of components on the chip
  • routing of wires between components.
  • Placement and routing interact, but separating
    layout design into phases helps us understand the
    problem and find good solutions.

22
Placement metrics
  • Quality metrics for layout
  • area
  • delay.
  • Area and delay deterined in part by wiring.
  • How do we judge a placement without wiring?
    Estimate wire length without actually performing
    routing.

23
Wire length as a quality metric
bad placement
good placement
24
Wire length measures
  • Estimate wire length by distance between
    components.
  • Possible distance measures
  • Euclidean distance (sqrt(x2 y2))
  • Manhattan distance (x y).
  • Multi-point nets must be broken up into trees for
    good estimates.

25
Placement techniques
  • Can construct an initial solution, improve an
    existing solution.
  • Pairwise interchange is a simple improvement
    metric
  • Interchange a pair, keep the swap if it helps
    wire length.
  • Heuristic determines which two components to swap.

26
Placement by partitioning
  • Works well for components of fairly uniform size.
  • Partition netlist to minimize total wire length
    using min-cut criterion.
  • Partitioning may be interpreted as 1-D or 2-D
    layout.

27
Min-cut bisecting partitioning
B
A
C
D
partition 1
partition 2
28
Min-cut bisecting partitioning, contd
  • Swapping A and B
  • B drags 1 net
  • A drags 3 nets
  • total cut increase 4 nets.
  • Conclusion probably not a good swap, but must be
    compared with other pairs.

29
Kernighan-Lin algorithm
  • Compute min cut criterion
  • count total net cut change.
  • Algorithm exchanges sets of nodes to perform
    hill-climbingfinding improvements where no
    single swap will improve the cut.
  • Recursively subdivide to determine placement
    detail.

30
Simulated annealing
  • Powerful but CPU-intensive optimization
    technique.
  • Analogy to annealing of metals
  • temperature determines probability of a component
    jumping position
  • probabilistically accept moves.
  • start at high temperature, cool to lower
    temperature to try to reach good placement.

31
Routing
  • Major phases in routing
  • global routing assigns nets to routing areas
  • detailed routing designs the routing areas.
  • Net ordering is a major problem. Order in whch
    nets are routed determines quality fo result. Net
    ordering is a heuristic.

32
Maze routing
  • Will find shortest path for a single wire, if
    such a path exists.
  • Two phases
  • Label nodes with distance, radiating from source.
  • Use distances to trace from sink to source,
    choosing a path that always decreases distance to
    source.

33
Maze routing example
34
Detailed routing
  • Dogleg router breaks net into multiple segments
    as needed.
  • Try to minimize number of dogleg segments per net
    to minimize congestion for future nets.
  • One good heuristicuse left-edge criterion on
    each dogleg segment to fill up the channel.

35
Rivest-Fiduccia channel router
  • Routes from left to right. Assigns all nets that
    cross the current column to tracks.
  • Heuristics
  • Make connections to pins.
  • Add jogs to put multi-track net into one track.
  • Add jogs to reduce distance in multi-track nets.
  • Add jogs to move net toward next pin.
  • Add tracks when necessary.

36
YACR2
  • Tries to minimize number of vias as well as
    number of tracks.
  • Temporarily satisfies vertical constraints by
    adding blank space between pins.
  • Eliminates blank space ater by adding jobs.
  • May route in both directions on same layer.

37
Layout analysis
  • Test design rules using Boolean combinations of
    masks, grow/shrink.

M2
M1
38
Scan line algorithm
  • Mark each edge of polygon with direction.
  • Sweep scan line across layout.
  • At each point on scan line, count number of
    left-hand and right-hand edges to determine what
    rectangle that point is in.

39
Scan line algorithm example
M2
M1
