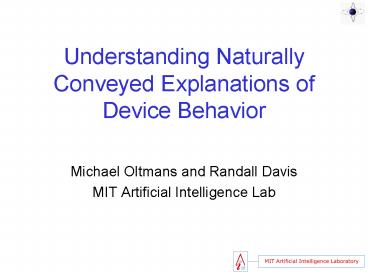

Understanding Naturally Conveyed Explanations of Device Behavior

1
Understanding Naturally Conveyed Explanations of
Device Behavior

• Michael Oltmans and Randall Davis
• MIT Artificial Intelligence Lab

2
Roadmap

• The problem
• Our approach
• Implementation
• System architecture
• How ASSISTANCE interprets descriptions
• Demonstrating understanding
• Evaluation and contributions
• Related and future work

3
Sketches Models

• We have a sketch of a device
• A simulation model can be generated from the
  sketch
• Life is good or is it?

4
(No Transcript)
5
The Problem

• No representation of intended behavior
• People talk and sketch but the computer doesnt
  understand

6
Task

• Understand descriptions of device behavior
• Given
• A model of the devices structure
• A natural explanation of the behavior
• Generate a causal model of behavior

7
(No Transcript)
8
Roadmap

• The problem
• Our approach
• Implementation
• System architecture
• How ASSISTANCE interprets descriptions
• Demonstrating understanding
• Evaluation and contributions
• Related and future work

9
Naturally Conveyed Explanations

• Natural input modalities
• Sketched devices
• Sketched gestures
• Speech
• Natural content of descriptions
• Causal
• Behavioral

10
Example Describing the Behavior of a Spring
11
Example Describing the Behavior of a Spring
12
Example Describing the Behavior of a Spring
13
Example Describing the Behavior of a Spring
14
Sources of power

• Conventions in explanations aide interpretation
• Description order suggests causal order
• Constrained vocabulary
• Overlapping descriptions provide constraints on
  interpretations

15
Roadmap

• The problem
• Our approach
• Implementation
• System architecture
• How ASSISTANCE interprets descriptions
• Demonstrating understanding
• Evaluation and contributions
• Related and future work

16
Sketch
Speech

• ASSIST
• Recognize sketch

• ViaVoice
• Recognize speech
• Parse

• ASSISTANCE
• Interpret explanation

• LTRE
• Truth Maintenance
• Rule System

Causal Model and Simulation
17
Outputs

• Consistent causal model
• Tree
• Nodes are events
• Links indicate causal relationships
• Demonstration of understanding
• Natural language descriptions of causality
• Parameter constraints

18
The Representation of Utterances

• Input comes from ViaVoice
• Grammar constructed based on observed
  explanations
• Tagged with parts of speech and semantic
  categories

19
Representing the parse tree
body 1 pushes body 2
SENTENCE SIMPLE_SENTENCE ( body 1 pushes body
2 (S0) t1)
SUBJECT NOUN NOUN-PHRASE ( body 1 (S0 t1) t2)
VERB_PHRASE ( pushes body 2 (S0 t1) t3)
DIRECT_OBJECT NOUN NOUN-PHRASE ( body 2 (S0 t1
t3) t5)
PROPELS VERB ( pushes (S0 t1 t3) t4)
20
Steps In Interpreting Explanations

• Infer motions from annotations and build event
  representations
• Find causal connections
• Search for consistent causal structures
• Pick best causal structure

21
Step 1 Inferring Motions from Annotations

• Inputs
• Arrows
• Utterances
• moves, pushes, the spring releases
• Outputs
• (moves body-1 moves-body-1-394)
• (describes arrow-2 moves-body-1-394)

22
Inferring Motion From Arrows

• Rule triggers
• Arrow
• Arrow referent (i.e. a body)
• The body is mobile

• Rule body records that
• The body moves
• The arrow describes the path

23
Inferring Motion From Arrows
(rule ((TRUE (arrow ?arrow) VAR ?f1)
(TRUE (arrow-referent ?arrow ?body) VAR
?f2) (TRUE (can-move ?body) VAR ?f3)
(TRUE (name ?name ?body)))
(rlet ((?id (new-id Moves ?name)))
(rassert! (implies (AND ?f1 ?f2
?f3) (AND (moves ?body ?id)
(describes ?arrow ?id))) ARROW-IS-MOTION)))
24
Multi-Modal References

• Match a sentence whose subject is this and a
  pointing gesture
• Assert the referent as the subject of the
  sentence
• Limitations
• User must point at referent before the utterance
• Allow one this per utterance

25
Redundant Events

• Redundant explanations lead to multiple move
  statements for some events
• Merge them into a unique event statement

Body 1 falls
26
Step 2 Find Causal Connections

• Plausible causes
• Arrow indicating motion near another object
• Exogenous forces
• Definite causes
• When then utterances
• Body 1 pushes body 2

27
Step 3 Search for Consistent Causal Structures

• Some events have several possible causes
• Find consistent causal chains
• Search
• Forward looking depth-first-search
• Avoids repeating bad choices by recording bad
  combinations of assumptions

28
Step 4 Find the Best Interpretation

• Filter out interpretations that have unnecessary
  exogenous causes
• Pick the interpretation that most closely matches
  the explanation order
• While there are multiple valid interpretations
• Choose one event with multiple possible causes
• Assume the causal relation whose cause has the
  earliest description time

29
Answer Queries and Adjust Parameters

• Queries
• Designer What is body 2 involved in?
• ASSISTANCE The motion of body 3 causes the
  motion of body 2 which causes the motion of body
  5
• Parameter Adjustment
• Set spring length

30
Roadmap

• The problem
• Our approach
• Implementation
• System architecture
• How ASSISTANCE interprets descriptions
• Demonstrating understanding
• Evaluation and contributions
• Related and future work

31
Limitations of the Implementation

• Scope of applicability restricted
• State transitions are one step deep
• Cannot handle conjunctions of causes
• Limited knowledge about common device patterns
• Latches, linkages, etc
• Supports and prevents
• Natural language limitations
• Use a full featured NL system like START
• Formally determine the grammar

32
Evaluation of the Approach

• Advantages
• Focus on behavior in accordance with survey
  results
• Move away from rigidity of WIMP interfaces
• Similar to person-to-person interaction
• Alternatives
• More dialog and feedback
• Natural vs. efficient
• Open claim that the domain is adequately
  constrained

33
Contributions

• Understanding naturally conveyed descriptions of
  behavior
• Generating representations of device behavior
• Match the designers explanation
• Generate simple explanations of causality
• Allow the calculation of simulation parameters

34
Related Work

• Understanding device sketches
• Alvarado 2000
• Multimodal interfaces
• Oviatt and Cohen
• Causality
• C. Rieger and M. Grinberg 1977

35
Future Work

• Direct manipulation
• Dialog
• Expand natural language capabilities
• Smart design tools
