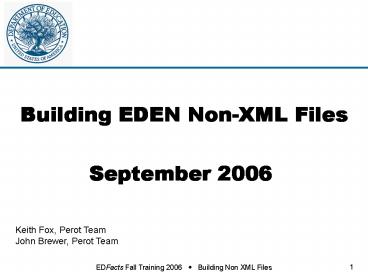

Building EDEN NonXML Files

1

• Building EDEN Non-XML Files
• September 2006

Keith Fox, Perot Team John Brewer, Perot Team
2
Agenda

• ESS Introduction
• ESS Databases
• File formats
• File Specification Review
• Order of File Submission
• Review of Errors and Edits
• SEA Tools - What do you use?

3
ESS Sub-Applications
Access to ESS Home Page
Access to transmit data files
Access to view status of transmitted files.
Access to view submission status by SEA, LEA and
School.
This sub-application is available to view and
verify data at a State, LEA, or School level.
Information on data groups, categories, permitted
codes, and file specifications
This area allows you to change your password as
needed.
4
System Components

• EDEN Submission System
• Receives files and checks for errors
• Staging Database
• Performs reasonability edits
• Data Repository
• Responsibility of data transferred to ED

5
EDEN Submission System

• Manages transmission of files from the SEAS to
  EDEN
• Receives files from SEA
• Performs format and validation edits
• Generates submission and error reports
• Emails file receipt and status to submitter
• If a file contains any format or validation
  errors, its data does not go beyond this point

6
Staging Database

• Contains data from files that passed format and
  validation edits
• Contents can be viewed from the Education Unit
  Profile
• Performs reasonability edits on submitted data
• Data requiring explanations from the SEA does not
  move past this point
• Before leaving this stage, ED will contact SEA
  regarding any data quality concerns

7
Data Repository

• Contains cleaned and edited files
• Responsibility of the data has transferred from
  SEA to ED
• SEA will receive notice 96 hours before data is
  moved to the Data Repository
• ED subject matter experts review the data in the
  Data Repository before it is used or made
  available to public

8
Component Overview
9
File Format Options
10
File Formats

• Fixed Format (.txt)
• Comma Delimited (.csv)
• Tab Delimited (.tab)
• XML Format (.xml)

11
Fixed Format

• Each record has a pre-defined length
• Each field has a beginning position and a
  pre-defined length
• All fields must be included in a record, whether
  used or not
• Filler fields and optional fields where no value
  is reported should be blank
• Unused positions of a field should be blank

12
Fixed Format

• The external file name in the header record must
  have a file extension of .txt
• Numeric fields must not contain commas
• Data in decimal fields must contain the decimal
  point (e.g., 1.123)

13
Fixed Format Examples

• Header Record Field Content

14
Fixed Format Example
15
Comma Delimited Format

• Similar to the fixed files order and format
• Each field is separated by a comma
• All fields, including filler fields, must be
  accounted for

16
Comma Delimited Format

• Except for the last field in a record, each field
  whether valued or not, must be designated by a
  comma, including filler fields
• Example ( indicates CRLF)
• First Field Three Bears School
• Second Field Filler
• Third Field 123 Main Street
• Last Field Filler
• Three Bears School,,123 Main Street,

17
Comma Delimited Format

• For valued fields, the comma should immediately
  follow the data value (e.g. no extra spaces, Ex.
  ,200,)
• For a comma delimited file, the external file
  name in the header must have a file extension of
  .csv

18
Comma Delimited Format Examples

• Header Record Field Content

19
Comma Delimited Format Examples

20
Tab Delimited Format

• Almost identical to comma delimited format except
  fields are separated by a tab character instead
  of a comma
• For a tab delimited file, the external file name
  in the header record must have a file extension
  of .tab

21
Tab Delimited Format

• Each field (valued, not valued, and filler
  fields) must be designated by a tab character,
• except for the last field in a record
• Examples
• gt indicates a tab character
• indicates CRLF)
• First Field Three Bears School
• Second Field Filler
• Third Field 123 Main Street
• Last Field Filler
• Three Bears Schoolgtgt123 Main Streetgt

22
Tab Delimited Format Examples

• Header Record Field Content

23
Tab Delimited Format Examples

24
Extensible Markup Language XML

• XML is a standard for creating documents that
  describe and apply a structure to data
• XML documents are self-describing making them
  readable by both humans and computers
• Extensible means there is not a fixed set of
  elements like HTML. Authors can define their own
  tags
• A common format for exchanging data over the web

25
Example of XML

• ltFILETRANSMISSION FILELAYOUTTYPELEA MEMBERSHIP
  TABLE"
• FILEIDLEA MEMBERSHIP 15 OCT 2006"
• SCHOOLYEAR"2006-2007"gt
• ltAGENCY FIPSSTATECODE80" STATEAGENCYIDNUMBER
  "01"
• STATELEAIDNUMBER"518"gt
• ltTABLETYPE TYPEABBRV"MEMBER"
  TOTALINDICATOR"N"gt
• ltCATEGORY TYPE"GRADELVMEM"
  VALUE"03"/gt
• ltCATEGORY TYPE"RACEETHNIC"
  VALUE"AS"/gt
• ltCATEGORY TYPE"GENDER" VALUE"F"/gt
• ltAMOUNTgt456lt/AMOUNTgt
• ltEXPLANATION/gt
• lt/TABLETYPEgt
• lt/AGENCYgt
• lt/FILETRANSMISSIONgt

26

• File Specifications

27
File Specifications

• Contain layout of all non-XML file types
• Have 1 specification for each file type
• All share a similar format
• Serve as the primary reference point for
  preparing and submitting files
• Current specifications are available at
  http//www.ed.gov/pbdmi

28
File Specification Sections

• Section 1.0 - Purpose
• Section 2.0 - Naming Convention
• Section 3.0 - Guidance for Submitting this file
• Sections 4-6 - Details for SEA, LEA, and School
  versions of the file

29
Section 1.0 - Purpose

• Provides an overview of what data is submitted in
  the file
• Lists changes from previous years specification
• Lists other ED collections that request this data
• Clarifies the set of Educational Units from which
  the data should be collected
• The Category Set table is now located in this
  section
• Easier to determine requirements of a file at a
  glance

30
Section 1.0 - Purpose, contd

• Category
• Lists the data groups that make up a specific
  table entry
• Details which fields should be populated for any
  given record in a file

31
Section 2.0 - File Naming Convention

• Describes naming convention for consistency
• File names can be no longer than 25 characters
• Not strictly necessary, but strongly recommended

32
Section 3.0 - Guidance for Submitting this File

• Helpful hints and frequently asked questions
  appear in this section
• Information is specific to each particular file
  specification

33
Sections 4-6 - File Level Specifications

• Sections 4, 5, and 6 provide the technical
  details needed to prepare the SEA, LEA, and
  School level files
• If data is not collected at a given level, that
  level is left out
• Includes tables listing the data groups and their
  permitted values
• Consists of 3 subsections
• Header Record Definition
• Data Record Definition
• Examples

34
Sections 4-6 - File Level Specifications, contd

• The Header and Data Record tables contain 7
  columns
• Data Group Name
• Start Position
• Length
• Type
• Mandatory/Optional
• Definition/Comments
• Permitted Values

35
Sections 4-6 - File Level Specifications, contd

• Data groups are listed in the order they should
  exist within each record
• Start position
• Indicates the starting point of a data group
  measured in characters from the beginning of a
  line
• Only applies to fixed-width files
• Length
• The maximum number of characters for a data group
  value
• Values exceeding this length can cause format
  errors
• Applies to all non-XML file types

36
Sections 4-6 - File Level Specifications, contd

• String
• Can consist of any alphanumerical character
• Leading zeros are significant in numbers
  expressed as strings
• Number
• Can consist of any integer value -1 or greater
• Leading zeros are not required
• Decimal
• Used to report percentages
• Consists of a digit followed by 4 decimal places
  (0.8355 83.55)

37
Mandatory vs. Optional

• An M in the Mandatory/Optional column indicates
  that the field is mandatory and must contain some
  data for each record within the file
• An O in the Mandatory/Optional column indicates
  that the field is Optional and data is not
  required for that field
• Optional fields may still be required in
  accordance with the category chart of the file
  specification

38
Zero, Missing, Not Collected

• Zero should be used in a numerical field when
  there are no instances of a requested count
• -1 can be used to indicate missing or not
  collected in a numerical field
• MISSING and NOTCOLLECT can be used as permitted
  values for most string fields

39
Definition

• Definition/Comments- gives a brief explanation of
  the data group along with additional information
  on preparing the file
• Permitted Values- lists the only accepted values
  for a given field
• If blank, permitted values must be consistent
  with the data type

40
Examples

• The examples section includes an excerpt of
  properly formatted file in each of the 3 non-XML
  formats

41
Order of File Submissions
42
Order of File Submissions

• Timing of 06-07 Submissions
• Importance of Directory Files
• Relationships Among Files

43
Timing for 06-07 EDEN Data Submissions

• The Submission time frame for School Year
  2006-2007 data begins in January 2007
• SEAs should begin submitting data as soon as the
  data is available after January 1, 2007
• SY 2006-07 EDEN Workbook will be provided before
  December 1, 2006

44
Importance of Directory Files

• Prior to any other data being submitted for an
  educational unit, a complete and correct
  Directory record must be in place.
• Directory files are hierarchical.

45
Importance of Directory Files

• Directory and Grades Offered files are not school
  year specific, but continue from year to year
• They only need to be submitted when data changes
  or if data for the education unit does not exist
  in the database

46
Relationships Among Files

• Grades Offered files should be submitted for any
  LEA or School which has students enrolled
• Data for an education unit will not be accepted
  unless a record for that education unit exists in
  the Directory file

47
Updating Directory Files

• Submitting a Directory file with only a new or
  corrected educational unit is satisfactory, or
  the entire Directory file may be resubmitted
• If the entire Directory file is submitted, be
  sure to include the new and/or corrected
  educational unit(s)
• Submit a Grades Offered file and Membership file
  for any new educational units

48
Directory File Identifiers

• State Identifiers are the primary identifiers
  used to match a submitted educational unit
  Directory record to an educational unit Directory
  record in the EDEN database.
• NCES Identifiers are used as secondary checks
  when a match cannot be determined with the
  primary identifiers.

49
Primary Identifiers
50
Adding/Updating an SEA
51
Adding/Updating an LEA/School
52
Modifying State Identifiers

• It is not currently possible to modify a states
  ID by submitting an updated Directory file.
• EDEN will see the modified ID as a new unit and
  add it to the system, resulting in duplicate
  records.
• Investigation is under way to better support
  updating primary identifiers.

53
06-07 Directory Enhancements

• Improved implementation of Directory data
  effective dating functionality
• Effective Dates will be required for all
  non-future education units
• EDEN will now track the history of certain
  fields Operational Status, Addresses, and
  Contact Information
• EDEN will prohibit file submissions against
  education units that have an Operational Status
  of Closed, Inactive, or Future Agency

54
File Submission Priorities

• States should submit the CCD related files first
  to support the CCD-EDEN merger
• Those files are Directory/Grades Offered,
  Membership, NCLB School Year Start Status, Staff
  FTE, Graduates and Dropouts
• Next states should submit files that can support
  the CSPR process.
• Those files are the Student Performance, Students
  Tested, NCLB end of year Choice, and Supplemental
  Services

55
EDEN Edits, Errors, and Warnings
56
Edits, Errors, and Warnings

• Format Edits Errors
• Validation Edits Errors
• Reasonability Edits Errors

57
Format Edits and Errors

• Definition transmitted file must be in an
  allowable specified format
• Purpose If the transmitted file is not in an
  allowable specified format, DRPS cannot interpret
  it
• Result If the file is acceptably formatted,
  Validation Edits are performed. If not, the file
  is rejected with a format error

58
Format Edits and Errors Format Error Checker

• PSC has developed an EDEN file format checker.
• PSC uses this internally.
• Currently there is only a 2003-05 version.
• Distributed to states last year
• The 2005-06 version is in the final testing phase
  and will be released in the near future.

59
Format Edits and Errors Format Error Checker,
contd

• Format Checker
• Need Perl interpreter installed
• Free download of Perl interpreter available
• Checks for Format Errors
• Shows Row Number, Record Number and Field Name
• Allows users to save, copy and paste to print
  results.
• Currently designed for Non-XML files only
• Can be edited with any text editor. We encourage
  improvements and sharing amongst other EDEN
  participants
• This tool is work in progress
• PSC will send updates

60
Format Edits and Errors Format Error Checker
Output

• Open the EDEN Format Checker
• Select the file you wish to check format of
• Click Go
• Results are provided
• Showing Record and Field Name

61
Validation Edits and Errors

• Definition Identification of invalid data used
  in a field where specific permitted values or a
  data type has been specified
• Purpose To ensure that the data stored in the
  Data Repository can be interpreted according to
  agreed upon rules
• Result Any validation error will cause the
  entire file to be rejected.
• If a file contains no validation errors
• Any applicable reasonability edits will be
  performed.
• The submission will be loaded into the Staging
  Database.

62
Validation Edits and ErrorsValidation Error
Thresholds

• Validation errors will be identified up to a
  threshold
• Currently 1000 or more errors identified will
  result in the termination of validation edit
  processing

63
Reasonability Edits

• Definition Identification of submissions where
  questionable data has been submitted
• Purpose To flag for explanation data that
  changed significantly from one year to the next
• Result
• The submission is loaded into the staging
  database
• Records where the reasonability edits failed must
  be explained
• File submissions will not be transferred to the
  Data Repository until a reasonable explanation
  has been approved

64
Errors and Edits

• Questions concerning specific errors?
• Questions concerning problems or concerns with
  regards to file submissions?

Open Session
65
Recap - Objectives

• Provided a basic understanding of ESS and its
  sub-applications.
• Provided an understanding of the data file
  submission lifecycle.
• Provided an in-depth knowledge of the File
  Specifications and how to read them.
• Provided information on ESS edits, errors, and
  warnings.
