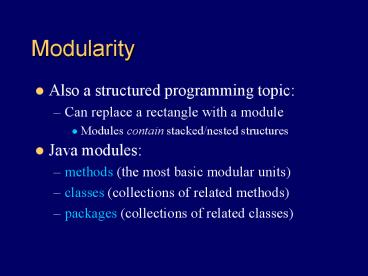

Modularity

1
Modularity

• Also a structured programming topic
• Can replace a rectangle with a module
• Modules contain stacked/nested structures
• Java modules
• methods (the most basic modular units)
• classes (collections of related methods)
• packages (collections of related classes)

2
Using methods invoking

• Direct translation of algorithm e.g.,
• getData()
• process()
• showResults()
• In turn, the method process() might do
• result calculate(x, y)
• where calculate is another method, one that
  returns a value based on x and y.
• And so on

3
static methods and variables

• A.k.a. class methods and class variables
• Technically, same for all instances of a class
• No particular instance (object) is involved
• So instance variables have no meaning in a static
  context
• Access by class name, not object reference
• Good for self-contained methods
• i.e., all necessary info is local to the method
• May not use non-static methods or variables of
  class
• Good for shared data and instance counts
• e.g., if (Martian.count gt 10) retreat()

4
java.lang.Math static methods

• Maths public methods are all static
• So no need to make an object first
• Invoke by class name and the dot . operator
• Math.max(x, y) and Math.min(x, y)
• max and min are overloaded return type same as
  x, y
• Usually double parameters and return type
• double r Math.toRadians(57.)
• System.out.println(Sine of 57 degrees is
• Math.sin(r))
• Also two constant values Math.PI and Math.E
• Math is in java.lang so no need to import

5
About constants like PI and E

• final variables are constants
• May only assign value once usually when declared
• More efficient code (and often programming)
• Should always avoid magic numbers
• e.g., decipher this line of code
• cost price 1.0775 4.5
• More typing, but worth it
• final double TAX_RATE 0.0775
• final double SHIPPING 4.5
• cost price (1. TAX_RATE) SHIPPING
• Class constants final static variables
• e.g., Math.PI is declared in java.lang.Math as
  follows
• public static final double PI
  3.14159265358979323846

6
Some String methods

• Accessing sub-strings (Note positions start
  at 0, not 1)
• substring(int) returns end of string
• substring(int, int) returns string from first
  position to just before last position
• charAt(int) returns single char
• length() the number of characters
• toUpperCase(), toLowerCase(), trim(),
• valueOf() converts any type to a String
• But converting from a String more difficult
  must use specialized methods to parse

7
Note parameters are copies

• e.g., void foo(int x)
• x 5 // changes copy of the value
  passed
• So what does the following code print?
• int a 1
• foo(a)
• System.out.print(a a)
• Answer a 1
• Same applies to immutable objects like Strings
• String s APPLE
• anyMethod(s)
• System.out.print(s) // prints APPLE

8
But references are references

• A reference is used to send messages to an object
• So the original object can change if not
  immutable
• e.g., void foo(Rectangle x)
• x.translate(5,5)
• // actually moves the rectangle
• Copy of reference is just as useful as the
  original
• i.e., although methods cannot change a reference,
  they can change the original object
• Moral be careful about passing object references

9
Random simulations

• Can use Math.random() method
• Pseudorandom double value range 0 to almost 1
• int diceValue 1 (int)(Math.random() 6)
• Better to use a java.util.Random object
• Random generator new Random()
• int diceValue 1 generator.nextInt(6)
• e.g., RandomIntegers.java (Fig. 6.7, p. 221)
• And more interesting Craps.java (Fig. 6.9, pp.
  225-226)
• Not just for integers (and not just for dice)
• double angle 360 generator.nextDouble()
• boolean gotLucky generator.nextBoolean()

10
Scope/duration of identifiers

• Depends on where declared
• i.e., in which set of in which block
• Instance variables
• Duration (lifetime) same as duration of object
• Scope available throughout the class
• Variables declared in method or other block
  (including formal parameters)
• Duration as long as block is being executed
• Scope available just within the block
• See Scope.java (Fig. 6.11, p. 230)

11
Overloading method names

• Method signature is name (parameter list)
• Can reuse a name with different parameter list
• List distinguished by (1) number of parameters,
  and (2) types and order of parameters
• e.g., three greeting methods (for a robot?)
• void hi() System.out.print(Hi)
• void hi(String name) // to greet a person by name
• System.out.print(Hi name)
• void hi(int number) // to greet a collection of
  people
• System.out.print(Hi you number)
• Another example MethodOverload.java (Fig. 6.13,
  p. 233)
• Cannot distinguish just by return type though
  (Fig. 6.15)

12
Another aside Coloring and animating drawings

• e.g., DrawSmiley.java (Fig. 6.16, p. 236)
• Now lets spice up the Car drawing
• First add a Color instance variable to class Car,
  and add ways to change a Cars position
• Animation is class CarComponents responsibility
• Change the two Car references to instance
  variables
• Create Car objects the first time paintComponent
  is called might as well make their colors
  random
• Add animate() method moves Cars, and uses a
  Thread
• try Thread.sleep(500)
• catch(InterruptedException e)
• And includes repeated calls to repaint() after
  moves
• Finally, must invoke animate() from class
  CarViewer

13
What is an array?

• General answer a fixed number of consecutive
  memory locations, all of the same type.
• Can refer to all as a group by arrays name
• Can refer to any one by nameposition
• Position is called array subscript or index
• First position is 0 (others are offset from 0)
• Additional Java answer an object whose purpose
  is to store collections of items of the same type
• Either primitive data values of the same type
• Or references to any one class of objects

14
Arrays are objects in Java

• Even a public instance variable length
• Range of positions 0 ... length-1
• Length is fixed after created (instantiated)
• Declare, instantiate separate steps
• int x // declare array of int named x
• int x // same thing (clear that x is an int
  array)
• x new int4 // instantiate array of length 4
• Both steps can be done with one statement
• int x new int4
• Assign values in a later step
• x0 53 // first element set to 53

15
Accessing array elements

• First, another way to instantiate
• And initialize at the same time
• int x 3, 7, 4, 5
• Quiz - what is
• x0 ?
• x1-x0 ?
• xx0 ?
• x4 ?

3
4
5
throws ArrayIndexOutOfBoundsException
16
Using arrays

• for loops are especially useful
• for (int i0 i lt x.length i)
• xigetValue() // access each xi in order
• Copying can be deep or shallow
• Shallow copy a new reference to same array
• int a x // if x is an int array already
• Deep copy a new array with copies of all values
• int a new intx.length // same length as x
• for (int i0 i lt x.length i)
• ai xi
• Using arrays to count RollDie.java (Fig. 7.7, p.
  262)

17
Enhanced for loop Java 5

• Actually a for each loop
• for (int element array)
• Reads for each element in array
• e.g., array of strings String words
• for (String s words)
• System.out.println(s)
• Note the loop control variable is the array
  element itself, not its array index
• So not applicable if index value is required
• Like deep copy algorithm, others

18
Some basic array operations

• Summing array elements
• int sum 0 // initialize before loop starts
• for (int item x) // for each integer item in
  array
• sum item
• Finding a maximum (or other extreme)
• int max x0 // initialize to first value
• for (int i1 i lt x.length i)
• if (xi gt max) max xi
• Printing on one row of standard output
• for (int item x) System.out.print( item)
• System.out.println() // newline after row is
  done
• Q How to print in reverse?

19

• Maybe more
• Maybe less

20
Handling array size limitations

• Issue array size is fixed after construction
• Dont always know what size to allocate at start
• Solutions (besides class ArrayList coming soon)
• Allocate way more than enough
• Absolutely limits the size of the problem not a
  good idea
• Create new, larger array, and copy values
• if (dataSize gt data.length)
• int newData new int2 data.length
• ... // here deep copy up to (data.length
  1)
• data newData // copy reference (discard
  old array)
