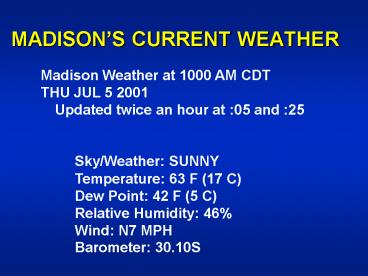

MADISONS CURRENT WEATHER

1
MADISONS CURRENT WEATHER
Madison Weather at 1000 AM CDT THU JUL 5 2001
Updated twice an hour at 05 and
25 Sky/Weather SUNNY
Temperature 63 F (17 C)
Dew Point 42 F (5 C)
Relative Humidity 46 Wind
N7 MPH Barometer 30.10S
2
Surface Weather Map from Today with Isobars
Fronts
3
Current Temperatures (oF) Isotherms
4
Current Dewpoints (oF)
5
(No Transcript)
6
(No Transcript)
7
Tomorrows 7AM Forecast
8
Current UVI Forecast
9
Last 24 hrs in Madison
10
(No Transcript)
11
At Southern Lake Michigan Buoy
12
Announcements

• Homework 2 is due today.
• Exam on Monday here (more _at_ end of class).
• Study sheet is online.
• Answers to Homeworks 1 2 to be posted.

13
ATM OCN 100 - Summer 2002 LECTURE 9

• BEHAVIOR OF GASES in the ATMOSPHERE
  Thermodynamics (cont.)
• Introduction
• Kinetic Theory of Matter
• The Gas Laws
• The Laws of Thermodynamic
• Vertical Motions
• Stability

14
ATM OCN 100 - Summer 2001 LECTURE 9

• BEHAVIOR OF GASES in the ATMOSPHEREThermodynam
  ics A. INTRODUCTION
• How are pressure temperature related?
• Why are lows cloudy and highs fair?

15
B. KINETIC THEORY OF MATTER

• Definitions
• Historical
• Assumptions for gases
• Tiny molecules with large space
• No attraction between molecules
• Random molecular motion
• Elastic molecular collisions.

16
B. KINETIC THEORY OF MATTER (cont.)

• Molecular Diffusion
• Transport of fluid properties by molecular
  motion
• Direction is from high toward low concentration
  regions.

17
B. KINETIC THEORY OF MATTER (cont.)

• Variables describing molecular state of a gas
• Density molecular mass per volume
• Temperature average molecular speed
• Pressure molecular momentum change
  ( molecular speed mass)

18
C. THE GAS LAWS

• Classical approach to Ideal Gas Law (or
  Equation of State)

19

• Atmospheric application of Ideal Gas Law
• If P constant, then ??increases as T
  decreases
• If ?? constant, then P increases when T
  increases
• If T constant, then ??increases as P
  increases.

20
C. THE GAS LAWS (cont.)

• Dalton's Laws of Partial Pressures
• Involves mixture of ideal gases

21
C. THE GAS LAWS (cont.)

• Dalton's Laws of Partial Pressures
• Involves mixture of ideal gases

• Each gas has own partial pressure, p(i).

• Then Total Pressure Sum of partial pressures

22
C. THE GAS LAWS (cont.)

• Dalton's Laws of Partial Pressures
• Involves mixture of ideal gases
• Each gas has own partial pressure, p(i).
• Then Total Pressure Sum of partial pressures

23
C. THE GAS LAWS (cont.)

• Atmospheric Applications of Dalton's Laws of
  Partial Pressures
• PTotal p(N2) p(O2) p(Ar) e ...
• Where p(N2), p(O2), p(Ar) are partial pressures
  of major atmospheric gases e (partial water)
  vapor pressure.
• So for air with some moisture PTotal 1020 mb
  ? (780 210 9) mb
  e ? (20 to 40 mb)

24
D. THE THERMODYNAMIC LAWS

• Introduction
• First Law of Thermodynamics
• Input Output Storage

25
D. THE THERMODYNAMIC LAWS (cont.)

• Atmospheric application of First Law of
  Thermodynamics
• Heat exchange Work Internal energy
  Change
• Heat exchange by radiation, etc.
• Work by volume change
• Internal energy change by temperature change.

26
D. THE THERMODYNAMIC LAWS (cont.)

• Adiabatic Processes
• No heat exchanged with environmentWork
  internal energy change
• Involves volume change only
• Volume change
  Temperature change
• Volume decrease (or Pressure increase)
  causes heating
• Volume increase (or Pressure decrease)
  causes cooling.

27
E. THE VERTICAL MOTION PROBLEM

• Response of an air parcel
• Rising motion Encounters lower pressure
  Expansion cooling
• Sinking motion Encounters higher
  pressure Compression warming
• Specification of the response

28
Response of Ascent/Descent of Air Parcel Dry
Adiabatic Lapse Rate (10C/1000m)See Fig. 6.8
Moran Morgan (1997)
P ? 600 mb, V 1.44 m3
P ? 700 mb, V 1.28 m3
P ? 800 mb, V 1.16 m3
P ? 900 mb, V 1.07 m3
T 20?C, P ? 1000 mb, V 1.00 m3
29
Response of Ascent/Descent of Air Parcel Dry
Adiabatic Lapse RateSee Fig. 6.8 Moran Morgan
(1997)
30
E. VERTICAL MOTION (cont.)

• Specification of parcel response
• describes cooling/heating by adiabatic
  expansion/compression process
• assume dry air parcel.
• The dry adiabatic lapse rate (DALR)
• Recall that lapse rate is how temperature
  decreases with height
• DALR ? 10 Co per 1000 meters or 5.5
  Fo per 1000 feet.

31
E. VERTICAL MOTION (cont.)

• Response of an air parcel
• An example

32
U.S. STANDARD ATMOSPHERE See Fig. 1.9 Moran
Morgan (1997)
Thermosphere
Mesopause
Mesosphere
Stratopause
Stratosphere
Tropopause
Troposphere
33
GREEN BAY RADIOSONDE SOUNDING Sunday PM
34
Why does the Hot Air Balloon Rise?
35
When Convection?
36
GREEN BAY RADIOSONDE SOUNDING Wednesday PM
37
F. STATIC STABILITY

• Importance
• Stability-Instability Concept
• Stable Return to initial state
• Unstable Continuation away from initial
  state
• Criteria for Static Stability (Instability)
  Determination

38
STABLE CONDITIONSCompare Environment with
DALRColder parcel sinks returns to start
39
UNSTABLE CONDITIONS Compare Environment with
DALR Warmer parcel continues upward
40
GREEN BAY RADIOSONDE SOUNDING Wednesday PM
41
GREEN BAY RADIOSONDE SOUNDING FRIDAY AM
42
F. STATIC STABILITY (cont.)

• Processes which change static stability
  (instability)
• Cool below, but warm above (stabilize)
• Warm below, but cool above (destabilize)
• Visual stability indicators

43
Example of Stabilization An Inversion
44
Example of Destabilization-- Cumulonimbus
45
F. STATIC STABILITY (cont.)

• Processes which change static stability
  (instability)
• Visual stability indicators
• Graphical Analysis The Thermodynamic Diagram

46
(No Transcript)
47
(No Transcript)
48
GREEN BAY RADIOSONDE SOUNDING Sunday PM
49
STABLE CONDITIONSCompare Environment with
DALRColder parcel sinks returns to start
50
UNSTABLE CONDITIONS Compare Environment with
DALRWarmer parcel continues upward
51
GREEN BAY RADIOSONDE SOUNDING Wednesday PM
52
GREEN BAY RADIOSONDE SOUNDING FRIDAY AM
53
(No Transcript)
54
(No Transcript)
55
GREEN BAY RADIOSONDE SOUNDING FRIDAY AM
56
Announcements

• Homeworks 1 2
• Please Pick up yours in front
• Ans. Keys for both are posted athttp//www.aos.wi
  sc.edu/hopkins/aos100/homework.
• First Hour Exam
• Is scheduled for Next Friday
• A review/help sheet has been posted at
  http//www.aos.wisc.edu/hopkins/aos100/exams.
• Honors students Have you talked with me?

57
MADISONS CURRENT WEATHER
at 900 AM CDT MON OCT 8 2001 Updated twice an
hour at 05 and 25 Sky/Weather MOSUNNY
Temperature 47 F (8 C) Dew Point 32 F (0 C)
Relative Humidity 56 Wind S13 MPH
Barometer 30.29R
58
Surface Weather Map from Today with Isobars
Fronts
59
CURRENT IR
Iris
60
CURRENT VISIBLE
61
Hurricane Iris A Cat. 4
62
Surface Weather Map from Today with Isobars
Fronts
63
Current Temperatures (F) Isotherms
64
Current Temperatures (oF) 24 Hrs Ago
65
Tomorrows 7AM Forecast
66
Announcements

• Homework 1
• Please Pick up yours in front.
• Homework 2
• Is being graded
• NOTE If you are had trouble with the
  extra-credit, you may submit this section after
  class.
• Honors students Have you talked with me?

67
Announcements

• Homework 2 is due today.
• Exam on Monday here (more _at_ end of class).
• Study sheet is online.
• Answers to Homeworks 1 2 to be posted.

68
U.S. STANDARD ATMOSPHERE See Fig. 1.9 Moran
Morgan (1997)
Thermosphere
Mesopause
Mesosphere
Stratopause
Stratosphere
Tropopause
Troposphere
