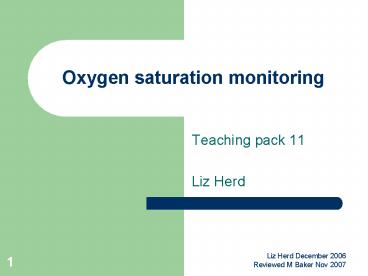

Oxygen saturation monitoring

1
Oxygen saturation monitoring

• Teaching pack 11
• Liz Herd

2
Introduction
What do you know
about oxygen saturation
3
Ground rules

• We value the young people we care for we would
  never put them or you at risk
• Always ask any questions when they occur to you,
  weve all asked questions that may seem
  silly-there is no such thing as a silly question!
• Stop me if you dont understand- the chances are
  others dont either
• Tell me if you need a break

4
Parent Experts

• All parents know their child/young person best
  They care for them daily
• Listen to them-act on what they say!!
• As a resource they are second to none Use
  Them-get to know the child as the parent does

5
Hand hygiene

• As with all care hand hygiene is extremely
  important
• Please follow the 8 point plan and repeat steps 5
  times
• Wash hands as required through out the procedure

6
Why do we need oxygen saturation?

• Oxygen is the fuel of the body and is essential
  to life, growth and development
• Oxygen saturation monitoring shows the level of
  oxygen attached to haemoglobin in the blood
• This helps us measure oxygen levels in the blood
  to ensure optimum health for our children and
  young people

7
Who needs oxygen saturation monitoring?

• Anyone on oxygen therapy
• Ventilated patients, as a secondary alarm
• Patients recently off oxygen therapy
• Patients who are respiratory compromised for any
  reason

8
Pulse oximeters

• These are the machines that give us the readings
• They can be spot check machines or give
  continuous readings like this one
• This one runs on mains but most will have a short
  life internal battery-check guidelines

9
Spot check machines

• Useful for intermittent checks
• Do not need to be attached all the time
• Are easily portable
• Use batteries as a power source-very useful in a
  power cut

10
Mains monitors

• They have 2 functions
• Heart rate and oxygen saturation monitoring
• Both functions have upper and lower alarm
  settings
• These should always be set according to the care
  plan

11
Alarm parameters

• These will be set according to the childs need
• The parameters may revert to factory settings
  when the machine is switched off
• You must be able to check the alarm settings as
  part of this competency

12
Important probe information

• Correct size for child/young person
• Compatible with machine in use
• Secured properly
• Ensure it is not near neck as there is an
  accidental strangulation risk

13
How it works

• Red and infra-red light pass through a vascular
  bed
• The monitor counts the O2 attached to the
  haemoglobin
• This is shown as a percentage
• It also counts the pulse

14
Attaching the probe

• Light sources must be in direct line
• Although the probe must be secure ensure it is
  not too tight as this can cause-
• pressure sores
• And restrict circulation
• Sight should be changed frequently as childs
  care plan states

15
Tissue damage from probe

• This is not a burn
• This is a pressure sore
• The younger the child the more need for vigilance
  in checking the probe site

16
Sites for attaching probes

• Fingers
• Toes
• Feet in very small children
• All sites need to be warm and well perfused if
  not the probe will be unable to accurately
  measure the readings

17
Saturation monitoring as a secondary alarm

• All children must have a saturation monitor in
  place whilst being ventilated. If the vent
  alarms fail then the drop in oxygen saturations
  will set the sats alarm off and alert us to the
  problem

18
Saturation monitoring during and after oxygen
therapy

• Spot checks will be done regularly
• It is the trends that are most important in the
  care of these children

19
Overnight monitoring

• Overnight readings will also be done to see how
  child is coping when asleep
• This also gives a longer and more detailed
  picture of how the child/young person is coping

20
Problem solving

• If the probe is letting in light it will give
  false readings, replace the probe
• Probe failure - replace probe
• If taking blood pressures ensure it is on the
  other arm if using the finger as a site
• Nail varnish may affect the readings

21
machine maintenance

• Annual PAK testing
• Regular check of the internal battery if
  appropriate
• Spare batteries available for spot check machines
• Individual child to have own probe

22
Playtime!!

• Spend some time looking and playing with the
  equipment
• Know how to set the alarm settings
• Know the battery life
• Be familiar with the equipment it is much easier
  doing it now than looking with parents
  watching!!!!!!

23
References

• C Simpson 2006An Introduction to Pulse Oximetery
  Tyco Healthcare
• Sidey A, Widdas D 2nd Edition 2005 Textbook of
  Community Childrens Nursing Elsevier Edinburgh .
• Coventry Teaching PCT hand hygiene Policy March
  2006
•
  Consent to Treatment April 2004
• Essence of Care 2001- Factors 10 record keeping
•
  11 privacy and dignity

• DOH National Service Framework for Children and
  Young People and Maternity Services 2004
  Standard 6,8
• Boosfield B, OToole M (2000) Technology
  Dependent Children Transition From Hospital to
  Home. Paediatric Nursing 12 6.
