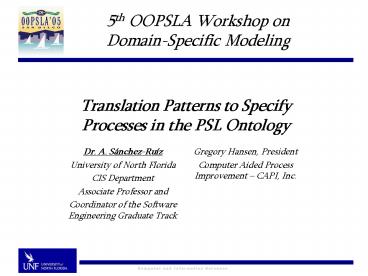

Translation Patterns to Specify Processes in the PSL Ontology

1
Translation Patterns to Specify Processes in the
PSL Ontology
5th OOPSLA Workshop on Domain-Specific Modeling
2
Context
Domain Manufacturing Process
PSL
Interoperation
3
Definition

• An Ontology is a formal explicit specification
  of a shared conceptualization for a domain of
  interest
• T. Gruber A Translation Approach to Portable
  Ontology Specifications. In Knowledge
  Acquisition, Vol. 5, 1993, pp. 199-220.

4
PSL Ontology

• PSL Process Specification Language
• Author National Institute for Standards and
  Technology (NIST http//www.nist.gov/)
• Domain of Application Manufacturing Processes.
• Sample of concepts and their relationships
  activity, activity occurrence, duration, object,
  sub-activity, consumes

5
PSL Ontology

• Documentation http//www.mel.nist.gov/psl/
• Formalism First-Order Logic (FOL)
• Structure Layered FOL theories (lattice of
  theories related by extension).
• Language Knowledge Interchange Format (KIF)
  any FOL language would suffice (e.g. UMLs Object
  Constraint Language OCL).

6
Example of a PSL Specification Simple
Sequential Process

• Consider a complex activity a, with primitive
  subactivities a1 and a2, respectively. Assume
  that we want to express the process characterized
  by occurrences of a1 followed by occurrences of
  a2, such that
• There are no occurrences before a1 and after a2.
• There are no occurrences of a between a1 and a2.

7
Example of a PSL Specification Simple
Sequential Process

• 1(activity a)
• 2(activity a1)
• 3(activity a2)
• 4(subactivity a1 a)
• 5(subactivity a2 a)
• 6(primitive a1)
• 7(primitive a2)
• 8(forall (?occ_a)
• 9 (implies
• 10 (and (occurrence_of ?occ_a a)
• 11 (legal ?occ_a))
• 12 (exists (?occ_a1 ?occ_a2)
• 13 (and
• 14 (occurrence_of ?occ_a1 a1)
• 15 (legal ?occ_a1)
• 16 (occurrence_of ?occ_a2 a2)
• 17 (legal ?occ_a2)
• 18 (subactivity_occurrence ?occ_a1 ?occ_a)
• 19 (subactivity_occurrence ?occ_a2 ?occ_a)

8
Example of a PSL Specification Simple
Sequential Process

• 1let a be an activity
• 2let a1 be an activity
• 3let a2 be an activity
• 4let a1 be a subactivity of a
• 5let a2 be a subactivity of a
• 6let a1 be primitive
• 7let a2 be primitive
• 8for all ?occ_a
• 9 if
• 10 ?occ_a is an occurrence of a and
• 11 ?occ_a is legal, then
• 12 there exist ?occ_a1, ?occ_a2, such that
• 13
• 14 ?occ_a1 is an occurrence of a1, and
• 15 ?occ_a1 is legal, and
• 16 ?occ_a2 is an occurrence of a2, and
• 17 ?occ_a2 is legal, and
• 18 ?occ_a1 is a
• subactivity occurrence of ?occ_a, and

9
This Paper

• Derives patterns that can be used to generate PSL
  specifications of processes comprised of
  activities, which can be complex/primitive, and
  are composed
• Sequentially.
• Concurrently.

10
Questions?

• Thanks!

11
The End
12
Outline

• Starting with the Basics
• Definitions
• Examples/Applications
• Requirements
• Research Problems
• Summary
• References

13
Starting with the Basics

• From the Merrian-Webster Dictionary
• Main Entry ontology Pronunciation
  än-'tä-l-jEFunction nounEtymology New Latin
  ontologia, from ont- -logia -logy1 a branch
  of metaphysics concerned with the nature and
  relations of being2 a particular theory about
  the nature of being or the kinds of existents-
  ontologist /-jist/ noun

14
Definitions
Application Body of Concepts
Application Domain
Applications
Local Lingo
Applications
Local Lingo
Applications
Local Lingo
15
Definitions
Application Domain Cooking
Appetizers Guacamole
Local Lingo Aguacate (L.A.)
Appetizers Guacamole
Local Lingo avocado (US, L.A.)
Appetizers Guacamole
Local Lingo Palta (Chile)
16
Definitions
Application Body of Concepts
Application Domain
Applications
Local Lingo
Applications
Local Lingo
Ontology Common Lingo!
Applications
Local Lingo
17
Definitions
Application Domain Cooking
Appetizers Guacamole
Local Lingo Aguacate (L.A.)
Appetizers Guacamole
Local Lingo avocado (US, L.A.)
Ontology Scientific Classification
Appetizers Guacamole
Local Lingo Palta (Chile)
18
Definitions
Application Domain Cooking
Ontology Scientific Classification
19
Definitions
Approaches to Interoperability
A1
A1
A2
A3
A2
A3
Ontology!
A4
A4
A5
A5
20
Examples/Application

• Web Ontology Language OWL
• Resource Description Framework (RDF) and its
  vocabulary description language (RDFS RDF
  Scheme).
• DAMLOIL joint effort
• DARPA Agent Markup Language (US)
• Ontology Inference Language (ontoknowledge.org
  Sponsored by European Community)
• Fundamental Application Semantic Web

21
Requirements

• Formalism-based
• Syntax and Semantics
• Model-based set theory, logic, algebras
• Ability to reason
• Use theorem provers, inference engines
• Ability to transport knowledge (domain-specific,
  lingo-neutral)
• Usability
• Humans do not directly use Ontologies, tools
  enable their use

22
Research Problems

• Core (Domain-Independent)
• New Formalisms (RDF, RDFS, F-Logic, Ontology
  Algebras)
• Frameworks/Tools to engineer ontologies
  (ONTOCLEAN, OTKM).
• Domain-Dependent
• Medical
• Defense/Intelligence
• Manufacturing
• Software Engineering
• Semantic Web
• Modeling

23
Summary

• Requirements
• Formalism-based
• Ability to reason
• Ability to transport knowledge (domain-specific,
  lingo-neutral)
• Usability
• Research
• Core research
• Applied research

A1
A2
A3
Ontology!
A4
A5
24
References

• Many references embedded in the document as
  hyperlinks.
• S. Staab, R. Studer (Editors) Handbook of
  Ontologies. Springer-Verlag, 2004.
• T. Berners-Lee, J. Hendler, O. Lassila The
  Semantic Web. Scientific American, May 2001.
