SplitStream: HighBandwidth Multicast in Cooperative Environments

1

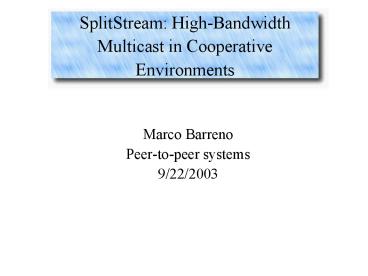

SplitStream High-Bandwidth Multicast in
Cooperative Environments

• Marco Barreno
• Peer-to-peer systems
• 9/22/2003

2
Background

• Tree-based multicast
• High demand on few internal nodes
• Cooperative environments
• Peers contribute resources
• We don't assume dedicated infrastructure
• Different peers may have different limitations

3
Goals of SplitStream

• Balance load over peers
• Accommodate different limitations
• Each node has a desired indegree and a forwarding
  capacity (max outdegree)
• Be robust to failures

4
The SplitStream approach

• Split data into stripes, each over its own tree
• Each node is internal to only one tree
• Built on Pastry and Scribe
• Recall that Pastry uses prefix routing

5
Scribe background

• Built on top of Pastry
• Any Scribe node may create a group
• Other nodes may join group or send multicast
• Node with nodeId numerically closest to groupId
  is the rendezvous point
• Root of multicast tree for the group
• Joins handled locally
• But it's only a single tree

6
Stripes

• SplitStream divides data into stripes
• Each stripe uses one Scribe multicast tree
• Prefix routing ensures property that each node is
  internal to only one tree
• Inbound bandwidth can achieve desired indegree
  while this property holds
• Outbound bandwidth this is harderwe'll have to
  look at the node join algorithm to see how this
  works

7
Respecting forwarding capacity

• The tree structure described may not respect
  maximum capacities
• Scribe's push-down fails to resolve the problem
  because a leaf node in one tree may have children
  in another tree

8
Compare this to Overcast

• Overcast also creates an overlay to spread
  multicast work around, but...
• Overcast is single-source, while SplitStream is
  multi-source
• Overcast uses a single tree, while SplitStream
  uses multiple trees
• Overcast is designed to maximize bandwidth
  between root and leaves, while SplitStream is
  designed to spread load evenly to all nodes
  (including leaves)

9
Parent location algorithm

• Node adopts prospective child
• If too many children, choose one to reject
• First, look for one in stripe without shared
  prefix
• Otherwise, select node with shortest prefix match
• Orphan locates new parent in up to two steps
• Tries former siblings with stripe prefix match
• Adopts or rejects using same criteria continue
  push-down
• Use the spare capacity group

10
The spare capacity group

• If orphan hasn't found parent yet, anycasts to
  spare capacity group
• Group contains all SplitStream nodes with fewer
  children than their forwarding capacity
• Anycast returns nearby node, which starts a DFS
  of the spare capacity group tree, sending first
  to a child...

11
Spare capacity group (cont.)

• At each node in the search
• If node has no children left to search, check
  whether it receives a stripe the orphan seeks
• If so, verifies that the orphan is not an
  ancestor (which would create a cycle)
• If both tests succeed, the node adopts the orphan
• May leave spare capacity group
• If either test fails, back up to parent (more
  DFS...)

12
A spare capacity example
13
Consequences

• Parent is likely to be physically near orphan due
  to locality of Pastry and Scribe
• However, it is possible for the parent already to
  be an internal node for another stripe
• If this parent fails it will bring down two
  stripes
• Anycast can still fail
• Adding the orphan may cause a cycle (fixable)
• No node with spare capacity provides stripe
  sought
• Declare failure and notify the application

14
Correctness and complexity

• Big assumptions
• All nodes join at the same time and communication
  is reliable
• Nodes do not leave the system either voluntarily
  or due to failures
• Splitstream can deal with violations of either,
  but problems may arise that prevent the forest
  from being constructed
• Simulation shows this isn't problematic in
  practice

15
Correctness and complexity (2)

• A fairly lengthy analysis reveals this rough
  upper bound on the probability that the algorithm
  fails to build a feasible forest

• But when the desired indegree of all nodes equals
  the total number of stripes, the algorithm never
  fails

16
Correctness and complexity (3)

• Expected state maintained by each node is
  O(logN)
• Expected number of messages to build forest is
  O(NlogN) if trees are well balanced and
  O(N2) in the worst case
• Trees should be well balanced if each node
  forwards its own stripe to two other nodes

17
Experiments
18
Experiments (2)
19
Experiments (3)
20
Experiments (4)
21
Conclusions

• So what are the major points? )
