Title: DETAILED TURBULENCE CALCULATIONS FOR OPEN CHANNEL FLOW


1

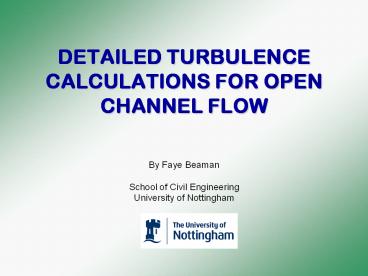

DETAILED TURBULENCE CALCULATIONS FOR OPEN CHANNEL
FLOW
  • By Faye Beaman
  • School of Civil Engineering
  • University of Nottingham

2
CONTENTS
  • Flood prediction and modelling
  • Importance of flood prediction
  • Differences between in-bank and over-bank
    modelling
  • Conveyance estimation
  • Shiono and Knight method (SKM) advanced by Ervine
    et al
  • Project aim
  • Computational Fluid Dynamics
  • Reynolds Averaged Navier-Stokes models (RANS)
  • Direct Numerical Simulation (DNS)
  • Large Eddy Simulation (LES)
  • Research
  • Initial trapezoidal channel
  • Compound channels
  • Summary

3
FLOOD PREDICTION MODELLING
  • Frightening statistics
  • 5 million people 2 million properties located
    in flood risk areas in the UK
  • Flood alleviation schemes are the focus of a
    large amount of engineering work
  • Prediction of conveyance capacity, and velocity
    and boundary shear stress distributions is a
    prerequisite for studies on bank protection and
    sediment transport
  • Very straightforward for in-bank flows
  • However when in flood it becomes much more
    difficult due to complex 3D flow structures

Example of stage-discharge relationship (rating
curve)
4
FLOOD PREDICTION MODELLING
  • Calculation of river flood conveyance in compound
    open channels is very complicated
  • Main channel velocities significantly greater
    than those in the floodplain
  • Large velocity gradients in the region of the
    main channel / floodplain interface develop,
    resulting in momentum transfer
  • Transverse shear layer produced influencing flow,
    within which large horizontal coherent structures
    develop
  • Superposition of high lateral shear on
    bed-generated turbulence and longitudinal
    secondary flow structures intriguing

Compound channel cross section
5
FLOOD PREDICTION MODELLING
Flow structures in a straight two-stage channel
(Shiono Knight)
6
TWO STAGE COMPOUND CHANNELS
Top view of compound channel experiment. The
large scale coherent structures can be seen from
the die injection.
7
CONVEYANCE ESTIMATION SKM
  • One very popular is that of Shiono and Knight
    extension by Ervine
  • Based on depth mean averaged form of momentum
    equation
  • 1D method, incorporating 2D parameters and
    modelling 3D effects
  • Incorporates empirical calibration constants
  • f, (local friction factor)
  • G (secondary flow parameter)
  • ? (dimensionless eddy viscosity coefficient)
  • Cav (Depth average cross flow coefficient)

8
COMPUTATIONAL FLUID DYNAMICS (CFD)
  • Application of full Navier-Stokes equations to
    environmental problems
  • Reynolds Averaged Navier-Stokes (RANS) models
    common
  • Other approaches to turbulence simulation
    include
  • Direct Numerical Simulation (DNS)
  • Large Eddy Simulation (LES)
  • LES
  • Intermediate approach to RANS and DNS
  • Large 3D unsteady turbulent motions are directly
    represented and computed exactly
  • Smaller-scale structures are not predicted
    directly, but their influence upon the rest of
    the flow is parameterised

Schematic of LES
9
LARGE EDDY SIMULATION (LES) cont.
  • Mesh generated forms volumetric filter above
    which structures computed exactly
  • Filter width delta, ? (volume)1/3
  • Reduced computational power, due to not directly
    computing small scales

10
LARGE EDDY SIMULATION (LES) cont.
  • COMPUTATIONAL POWER
  • DNS requires data points
  • Duration of simulation can be approximated as
  • Therefore computer power
  • Re 103, several days, Re 104, weeks
  • Ratio of number of points for LES compared to DNS

11
TRAPEZOIDAL CHANNEL
Isosurface of vorticity coloured with pressure
  • Initial case
  • Re 18,000
  • 300,000 cell mesh
  • Inlet velocity 0.05m/sec
  • Smooth walls
  • Free surface effects included using a symmetry
    boundary condition
  • Periodic boundary conditions
  • reduce channel length gt no of cells
  • Parallel runs
  • Computational time months
  • Physical simulated time 5000sec
  • 4 processors

Contour plot of streamwise vorticity
12
TRAPEZOIDAL CHANNEL MESH
  • Increased Re case
  • Re 200,000
  • 3 proposed mesh resolutions
  • 0.5mil, 4mil, 30mil
  • Trapezoidal channel awkward to get good skewness
    and aspect ratio
  • Paved mesh
  • Non-conformal
  • Throws together a mesh from hexs or tets
  • But still structured where possible
  • Not axisymmetric
  • Cells more isotropic than those of the structured
    mesh

Structured mesh 0.5mil hex
Non conformal paved mesh 0.5mil hex
13
TRAPEZOIDAL CHANNEL INITIAL RESULTS
Non conformal paved mesh 0.5mil hex
Structured mesh 0.5mil hex
14
TWO STAGE COMPOUND CHANNEL
  • Initial runs at Re 150,000
  • Available FCF data for validation

15
SUMMARY
  • Wide variety of channel geometries can be
    simulated
  • LES
  • Captures large structures exactly
  • Very computationally demanding
  • Long run times but simulating reasonable results
  • Increased computer power means
  • more detailed grids
  • higher Reynolds numbers, therefore more realistic
    flow simulations
