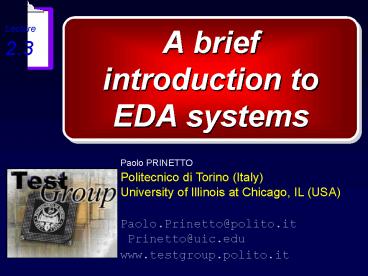

A brief introduction to EDA systems

1
A brief introduction to EDA systems
2
Goal

• This lecture briefly introduces Electronic Design
  Automation (EDA) systems.

3
Prerequisites

• Lecture 2.2

4
Homework

• Students are warmly invited to visit the home
  pages of major EDA system vendors, such as
• Mentor Graphics at
• http//www.mentor.com/
• synopsys at
• http//www.synopsys.com/
• LogicVision at
• http//www.logicvision.com/
• Avant! at
• http//www.avanticorp.com/

5
Further readings

• No particular suggestion

6
Abraham Lincoln
If some one gave me eight hours to cut a tree,
I would spend six hours sharpening the axe!
7
EDA Systems

• An Electronic Design Automation (EDA) system is a
  collection of integrated tools to support the
  overall product life-cycle.

8
EDA Systems

• An Electronic Design Automation (EDA) system is a
  collection of integrated tools to support the
  overall product life-cycle.

9
EDA Systems

• An Electronic Design Automation (EDA) system is a
  collection of integrated tools to support the
  overall product life-cycle.

10
EDA Systems

• An Electronic Design Automation (EDA) system is a
  collection of integrated tools to support the
  overall product life-cycle.

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Basic structure of EDA systems
Automatic Synthesis
Design entry
DesignData Base
Physical design
Production support
Test support
Verification Validation
16
The Design Database

• Is the kernel of the EDA system
• Interfaces a large variety of different tools
• Collects all the needed information items.

DesignData Base
17
Libraries

• Collection of modules and/or blocks, available in
  the different design phases

18
Libraries

• Collection of modules and/or blocks, available in
  the different design phases
• Provided by the Silicon Foundries via the EDA
  vendors

19
Design entry
Design entry
Schematic editors
HDL compilers
DesignData Base
20
Verification Validation
Verification Validation
Simulators
Design rule checkers
Formal verifi-cation tools
Modelcheckers
DesignData Base
21
Automatic Synthesis
Automatic Synthesis
Low level synthesis
Logic level synthesis
RT level synthesis
High level synthesis
DesignData Base
22
Physical design
Physical Design
Floorplanners
Design rule checkers
Placers routers
Symboliclayout tools
DesignData Base
23
Testing support
Testing support
Test pattern generators
Fault simulators
ATE interfaces
Fault manager
DesignData Base
24
A little bit of history...

• 1978 Physical layout tools (Calma, Applicon)
• 1980 Schematic editors (Daisy, Mentor, Valid)
• 1985 Behavioral simulation (Gateway)
• 1988 Automated synthesis (synopsys)
• 1992 Test automation (Sunrise)

25
EDA system structure for this course
Design entry
HDL compilers
DesignData Base
Physical design
Production support
Test support
26
