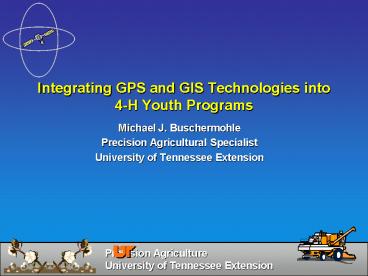

Integrating GPS and GIS Technologies into 4H Youth Programs

1
Integrating GPS and GIS Technologies into 4-H
Youth Programs

• Michael J. Buschermohle
• Precision Agricultural Specialist
• University of Tennessee Extension

2
Overview

• What is Global Positioning System (GPS)
• How GPS works
• Types of GPS receivers
• What is a Geographic Information System (GIS)
• Integrating GPS and GIS into 4-H programs

3
What is GPS

• GPS is a navigational system that can accurately
  locate your position anytime, anywhere, and
  regardless of weather on Earth
• Satellite-based navigation systems made up of a
  network of 24 satellites placed into orbit by
  the U.S. Department of Defense
• Satellites orbit the earth at an altitude of
  about 12,500 miles
• Radio signals from the satellites can be used
  to determine accurate georeferenced position
  information

4
Satellite Signal

• Satellites broadcast several pieces of
  information
• Emphemeris (Orbital) data
• Timing data

5
How Does GPS Work
Speed of light 186,000 mi/sec
6
Trilateration
7
Sources of GPS Error

• Clock Errors
• Atmospheric Interference
• Ephemeris (Orbital) Variation
• Satellite Configuration
• Signal Multipath

8
Sources of GPS Error
Clock Errors
Lets put some numbers on it Altitude 12,500
mi. Speed of light 186,000 mi/sec Transmission
Time 0.067 sec What happens if we are off a
little? 0.001 sec 186,000 mi/sec 186 mi
9
Sources of GPS Error
Atmospheric Interference
10
Sources of GPS Error
Ephemeris (Orbital) Variation
11
Sources of GPS Error
Satellite Configuration
Good (low) DOP
Poor (high) DOP
Measure of the geometrical strength of the GPS
satellite configuration
12
Sources of GPS Error
Signal Multipath
13
Counteracting GPS Errors

• Land-Based Differential Correction
• Satellite-Based Differential Correction
• User Base Station RTK Correction

14
Counteracting GPS Errors
Land-Based Differential GPS Correction
Coast Guard Beacon
Differential Correction Codes
15
Counteracting GPS Errors
Satellite-Based Differential GPS Correction
Differential Correction Codes
WAAS Omnistar Deere
16
Counteracting GPS Errors
Kinematic Differential GPS Correction
Operators Base Station
Differential Correction Codes
17
GPS Receivers
18
Basic Navigation Information Supplied by GPS
Receivers

• Your current position
• Coordinates (Latitude and Longitude, UTM, etc.)
• Elevation
• Direction to specified waypoints
• Distance to specified waypoints
• Your speed of travel
• Your direction of travel

19
Geographic Information Systems (GIS)
GIS is a collection of computer hardware,
software, and geographic data for capturing,
managing, analyzing, and displaying all forms of
geographically referenced information.
20
GIS Maps are Based on Layers
Capitals
Rivers
Roads
States
Lakes
21
Integrating GPS and GIS Technologies into 4-H
Youth Programs

• What Type of GPS receiver should you buy?

What is your application?
22
GPS Applications

• Teaching users about GPS receivers
• Hiking
• Geocaching
• Nature Study
• Hunting
• Fishing
• Boating
• Biking
• Skiing
• Golf

23
Low Cost (Handheld) GPS Receivers
Cost 100 400
Features Internal Memory 8 30 M SC Card
Expandability Mapping Software Compatibility
24
Mapping Software
Cost 100 - 150
Compatibility depends on the unit
25
GPS Applications

• Collecting geo-referenced data
• GIS Mapping

26
Pocket PCs Running Windows CE
400
600
HP IPAQ
27
Integrating GPS and GIS Technologies into 4-H
Youth Programs
What GIS software should you buy?
28
GIS Software

• ESRI
• ArcMap
• ArcPad for Windows CE
• Farm Works
• Map Shots
• JD Office
• Easy Suite

29
On-Line Training CourseLearning How to Use
ArcPad 7.0
30
On-Line Training CourseLearning How to Use
ArcPad 7.0
Learning Module 1 Moving Data to and From Your
PDA Learning Module 2 Getting to Know
ArcPad Learning Module 3 Displaying
Data Learning Module 4 Creating
Features Learning Module 5 Using Your GPS
Receiver Learning Module 6 Capturing Features
Using Your GPS Receiver Learning Module 7
Making Your Map Look Pretty Learning Module 8
Retrieving Information from Your Map
31
Some GPS Applications for Youth
Geocaching
32
Some GPS Applications for Youth
Collecting and Mapping Geo-referenced data in
Your Community
33
Questions?
