Title: Ikelos


1

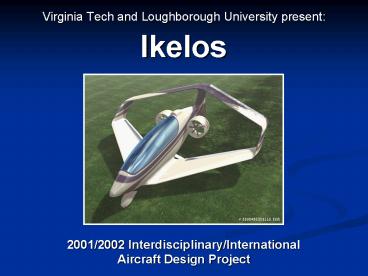

Ikelos
  • Virginia Tech and Loughborough University present

2001/2002 Interdisciplinary/International
Aircraft Design Project
2
Original Specification
  • Key Requirements
  • Aircraft fits on trailer
  • Lightweight and Simple
  • STOL or VTOL
  • Land in 46m (150ft) over 5m obstacle
  • Cruise gt 90 kts
  • Range gt 150nm
  • 1 Seat Aircraft

3
Initial Design Ideas
  • Each group produced 3 concepts
  • Counter-rotating Helicopter
  • 2 Gyroplanes
  • VTOL tilt duct
  • Vectored jet
  • Pusherprop
  • Selected VTOL Tilt duct
  • Most adaptable
  • Most Original

4
Initial Concepts
VTOL Tilt Duct
Pusher Prop
5
Design Development
  • Reviewed advantages and disadvantages of
  • STOL
  • VTOL
  • Vectored Thrust
  • Modified Design to
  • STOL as standard aircraft
  • Vectored thrust option

6
Revised Specification
  • 46m (150ft) ground roll
  • Meet SSTOL requirement 150m (500ft) over
  • 15m (50ft) obstacle
  • Cruise speed to be competitive with GA
    aircraft
  • 110kts 150kts
  • Range - 500nm at cruise speed
  • 2 Seat Aircraft

7
Configuration
8
Configuration
9
Fuselage Structure Layout
10
Wing Structure Layout
11
Wing Detachment
  • Trailer criteria of 2.2m max. width
  • Front Wing
  • I section spars overlap in fuselage, bolted
    together in hollow box structure
  • Rear Wing
  • Connected to top of tail using two 3-way
    brackets
  • Vertical Spars
  • Bolted to outer ribs using hollow tube
    connections

12
Materials
  • Glass epoxy skin on wings and fuselage
  • Skin is honeycomb sandwich
  • Kevlar reinforcement on fuselage bottom and
    lower wing skins
  • Structure framework of carbon fiber with metal
    reinforcements in critical areas
  • Aluminum firewalls and steel undercarriage

13
V-n Diagram
14
Manufacturing
  • Planes assembled in individual bays
  • Composites used where possible
  • Internal skeleton
  • Assembly team at each bay
  • Team unity and pride in work
  • Important due to the complexity of wiring,
    controls, and electronics

15
Tornado VLM
  • Non-planar vortex lattice method
  • Incorporates various wing features

16
Wing Layout
  • Box-wing design
  • Front wing twisted
  • Unswept inboard TE flap

17
Lift Characteristics
  • Based on forward wing area
  • CLMAX 4.19
  • Leading edge devices
  • Front wing flapped
  • Fowler te flaps, fixed vane

18
Drag Characteristics
  • Induced drag reduction
  • CD0 .045 in cruise

INLETS AND OUTLETS
WINGS
SIDE PLATES
VERTICAL TAIL
35
3
12
4
12
OTHER
17
5
FUSELAGE
24
DUCTS
UNDERCARRIAGE
19
Stability and Control
  • Static Stability
  • Design Criteria Acceptable static margin in
    all configuration, FAR 23 compliance
  • Final Configuration balanced (positve Cm0L)
    with positive pitch stiffness (negative Cma)
  • Lateral-Directional stability satisfied but
    nearly neutral to retain maneuverability
  • Dynamic Stability
  • Design Criteria MIL-F-8785C specifications
    with Level 1 flight qualities

20
Control Surfaces
  • Aircraft equipped with standard elevators,
    ailerons, and rudder

21
Trim Diagram
22
Control Forces
  • Used Roskam methods to determine control
    forces
  • Analysis shows that FAR 23 stick force limits
    are satisfied

23
CG Excursion Graph
24
CG Travel in MTOM Flight
Conclusion Stable Aircraft
25
The Rand Cam Engine
  • Innovative diesel rotary engine
  • Inherently simple, no pistons, timing values,
  • spark plugs
  • Uses a system of axial vanes that rotate in a
  • cam shaped housing

26
The Rand Cam Engine
  • Light weight High power to weight ratio
  • Fuel efficient
  • Costs similar to that of an equivalent automotive
    engine
  • Low noise
  • Very little vibration
  • Low maintenance

27
Engine Layout
28
Ducted Fans
  • Higher thrust per horsepower for a given diameter
    than a propeller
  • Better performance at low speeds than propellers
    no recirculation at the tips
  • Quieter than propellers noise damping material
    used in ducts
  • Duct provides an additional safety feature.
  • Duct diameter 0.92 m (3 ft)
  • Fan consists of 5 rotor blades and 12 stator
    blades
  • Fans attached to engine via a 12 helical spiral
    bevel gear
  • Low noise 60dBs. Tip speed 113 m/s (370 ft/s)

29
Thrust Calculations
  • Static thrust calculated using disc actuator
    theory
  • Dynamic thrust found using general thrust
    equation
  • Efficiency found by reading from chart of
    empirical data charts

30
Thrust Curve
31
Cockpit Layout
32
Cockpit
  • Designed for 95th percentile male (tallest
    male) and adjustable to 5th percentile female
    (shortest female)
  • Adjustable seats and rudders
  • Center stick
  • Energy absorbing Confor foam seats for high
    impact landing
  • Canopy door allows ease of entrance
  • Harness seatbelts for pilot and passenger
    safety

33
Avionics
  • Base Cockpit Instrumentation
  • EFIS
  • Display
  • EFIS Computer
  • AHRS Computer
  • PFD Engine instrumentation
  • Transmission Reception devices
  • NAV/COMM Radio
  • Mode A/C Transponder

34
Avionics
35
Systems
  • Safety
  • Anti-lock brakes
  • Ballistic parachute
  • 5 Point seat belt
  • Control surface actuation
  • Mechanical
  • Canopy
  • Single piece with gas struts

36
Systems
  • Cabin Conditioning
  • Warm air taken from oil cooler
  • Mixed with external air
  • Provides de-misting (de-frosting)
  • Electrical
  • Standard 28V system
  • 120 Ampere alternator

37
Landing Issues
  • Original Specification 46m (150ft) landing
    distance over 5m obstacle

If stall speed 25kts and free roll 1
second free Roll 15m
38
Revised Specifications
  • Target ground roll 46m (150ft)
  • Total landing and take off NASA SSTOL
  • 9o Glideslope used in NASA analysis


39
Landing and Take-off
Landing
Target
Take-off
  • Target met at all take-off weights
  • Landing Target met with 1 pilot and full fuel

40
Landing and Take-off
  • Certification over 50ft (15m) obstacle
  • SSTOL requirement met at all conditions

Target
Landing
Take-off
41
Cruise Performance
  • Max Range Full Payload 650nm _at_ 80 knots
  • 500 nm _at_ 124 knots
  • Max Endurance over 8 hours _at_ 64 Knots

42
Climb Performance
  • 10,000 ft in under 10min _at_ 85 and 90 Knots
  • Max Climb 1364 ft/min _at_ 90 Knots

43
Turn Rates
  • Max Turn Rate 70 Deg/sec _at_ 57 knots

44
Mass Breakdown
  • kg lb
  • Structure 235 486 37
  • Propulsion 112 246 18
  • Equipment 28 62 4
  • OEM 375 794 59
  • Payload 182 400 29
  • Fuel 78 172 12
  • MTOM 635 1366 100

45
Aircraft Cost Analysis
  • Target price luxury sports car
  • US 200,000 price ceiling
  • Costing analysis is conducted using Roskam
  • methods
  • Anticipated cost reductions from avionics
    development are not yet considered

46
Certification Philosophy
  • Certify under Joint Airworthiness Requirements
    Very Light Aircraft Category
  • Federal Airworthiness Requirements
  • Sport aviation category
  • Revise requirements

47

Strengths
48
Strengths
49
Weaknesses and Threats
  • Risk Unproven propulsion system
  • Control authority in landing more analysis
    required
  • Specialized product for SSTOL market.

50
Opportunities
  • Range of aircraft basic to high performance
  • High performance options
  • More advanced avionics
  • Thrust vectoring
  • Circulation control
  • Higher end of Market
  • Military or law enforcement possibilities

51
Conclusions
  • Innovative modern technology employed.
  • Large scope for adaptability
  • Configuration set but still opportunity for
    adjustments
  • Project still in progress
