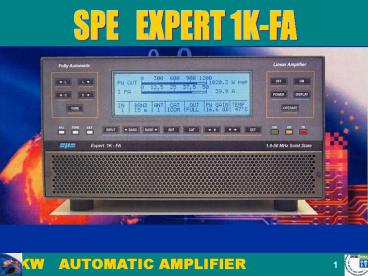

SPE EXPERT 1K-FA
2
PRESENTATION OF SPE
SPE is a company with private capital that
operates on the TLC business since 1975 planning
and realizing electronic systems with tall
technological content.
HEADQUARTER
3
PRESENTATION OF SPE
Founded in 1975 by Dr. Gianfranco Scasciafratti
(I0ZY), SPE is a private company located in Rome,
Italy.
4
SPE IS A SOLID FIRM
The firm is organized for facing the core
business regarding the planning, the
realization, the installation and the

maintenance of its own products.
MAIN FACTORY
5
SPE's TEAM
SPE, thanks to 35 years of experience and to the
continuous adjournment of its know-how is able
to offer innovative
solutions and inexpensive products for its own
customers demands.
6
QUALITY OF SPE
SPE since 1996 has quality certification UNI EN
ISO 90012000.
7
SPE EXPERT 1K-FA
THE SMALLEST IN THE WORLD
1 KW pep OUTPUT BUILT-IN POWER SUPPLY
AND AUTOMATIC ANTENNA TUNER DIMENSIONS W 28, H
14, D 32 cm. (CONNECTORS INCLUDED) WEIGHT
APPROX. 20 Kg
8
SPE EXPERT 1K-FA
THE MOST TECHNOLOGICALLY ADVANCED IN THE WORLD!
TWO CPUs ARE USED, ONE OF WHICH IS DEDICATED TO
THE CATs Pi-L OUTPUT CIRCUIT OVER 13,000 LINES
OF SW FOR PERFORMANCE THAT CANNOT BE FOUND
TOGETHER IN ANY OTHER AMPLIFIER
9
SPE EXPERT 1K-FA
FULLY AUTOMATIC!
EASY CONNECTION WITH ALL MODELS ICOM YAESU
KENWOOD TEN-TEC FlexRadio ELECRAFT FOR
IMMEDIATE MANAGEMENT OF THE BANDS, TUNER AND
ANTENNAS SAME PERFORMANCE WITH ALL MAKES OR
HOMEMADE RIGS THE OPERATOR HAS ONLY TO MOVE THE
FREQUENCY TUNING KNOB IN THE TRANSCEIVER!!!
10
SPE EXPERT 1K-FA
WIDE FREQUENCY COVERAGE
1.8 MHz TO 54 MHz INCLUDING WARC BANDS
11
SPE EXPERT 1K-FA
FULL SOLID STATE
1 KW pep SSB out 900 W pep CW out (typ.) 700 W
pep out (typ.) on 6 meters FULL/HALF power
selection
12
SPE EXPERT 1K-FA
AUTOMATIC ANTENNA TUNER BUILT-IN!
Capable of matching 31 SWR on HF and 2.51 SWR
on 6 meters Capable to manage 4 antennas Bands,
Antennas, Tuning conditions changed in 10
msec. Bands, Antennas, Tuning conditions are
managed also in STBY to support the exciter only
13
SPE EXPERT 1K-FA
TWO INPUTS AVAILABLE! VERY CLEAN AND LOW
DISTORSION OUTPUT
14
SPE EXPERT 1K-FA
INPUT 50 OHM ALWAYS PERFECTLY MATCHED!
15
SPE EXPERT 1K-FA
FULLY PROTECTED!

• Temperature, Over Voltage, Over Current, SWR,
  Reflected Power, Max RF Tuner Voltage, Over
  Drive, Amp. Unbalances are continously
  controlled.
• The same protection is realised in two different
  ways
• HW to assure great speed
• SW to assure great accuracy.
• Thanks to the SW, every relays commutation is
  carried out with zero current in the contacts.

16
SPE EXPERT 1K-FA
FULL BREAK-IN OPERATION (QSK)! NORMAL/CONTEST
OPERATION TO OPTIMIZE THE PERFORMANCE!
17
SPE EXPERT 1K-FA
SO2R OPERATION
RTX2
RTX1
INPUT 2
INPUT 1
ANT 1
SPE EXPERT 1K-FA
ANT 2
SO2R
ANT 3
ANT 4
MULTIBAND ANTENNA
TRASMITTING ANTENNAS
18
SPE EXPERT 1K-FA
VERY QUIET OPERATION! REGULATED POWER SUPPLY
INPUT 230/115 VAC With both the input voltages,
the out power is always 1 KW
19
SPE EXPERT 1K-FA
THE LINEAR CAN BE SWITCHED ON/OFF ALSO, SWITCHING
ON/OFF THE EXCITER! WITH A LARGE LCD DISPLAY IS
POSSIBLE TO HAVE A GREAT DEAL OF INFORMATION!
20
SPE EXPERT 1K-FA
USER FRIENDLY RS 232 PORT FOR A PC
CONTROL! EASY TRASPORTATION! A small bag is
supplied for QSY, FIELD DAY, DX PEDITIONS, etc.
21
SPE EXPERT 1K-FA
WORLDWIDE CERTIFICATIONS
22
SPE EXPERT 1K-FA
