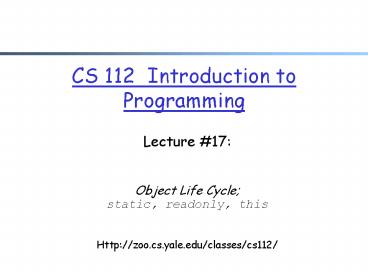

CS 112 Introduction to Programming

1
CS 112 Introduction to Programming

• Lecture 17
• Object Life Cycle static, readonly, this
• Http//zoo.cs.yale.edu/classes/cs112/

2
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference

3
Admin.

• Assignment 3
• If you have time, you can try to run your deign
  with a TA or with me
• This is called design review
• Part 1 PowerMod
• You can write a straightforward version or use
  the pseudo code
• It will be an interesting exercise to compare the
  performance of these two implementations
• Midterm 1
• Topics
• lectures 1 21
• a list of topics will be posted by this weekend
• Samples linked on the schedule page

4
Recap Encapsulation and Public and Private
Accessibility
private
public
violate Encapsulation Unless properties
enforce encapsulation
variables
provide services to clients
support other methods in the class
methods
Example a different implementation of Time3.
see Time3.cs of previous lecture
5
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference

6
Object Life Cycle

• Operator new allocates memory
• Constructor initializes the state
• Assigned to a variable declared with the class as
  the type
• the object is referenced by the variable, e.g.,
  Time1 t1 new Time1(11, 45, 59)
• An object may be referenced by multiple
  variables, e.g., Time1 t2 t1
• An object may be referenced by no variable (the
  object is a garbage)e.g., t1 new
  Time1(12, 55, 50) t2 null

7
Garbage Collection

• When objects are no longer referenced, the C
  Language Runtime (CLR) performs garbage
  collection
• Garbage collection avoids running out of memory
  because unused memory has not been reclaimed
• Allocation and deallocation of other resources
  (database connections, file access, etc.) must be
  explicitly handled by programmers

8
Garbage Collection

• You can use finalizers in conjunction with the
  garbage collector to release resources and memory
• Before garbage collector reclaims an objects
  memory, it automatically calls the objects
  finalizer
• Each class has only at most one finalizer (also
  called destructor)
• Name of a destructor is the character, followed
  by the class name
• Destructors do not receive any arguments

See TimeLifeCycle.cs and Time3.cs of the project
9
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference

10
static Class Members

• Every object of a class has its own copy of all
  instance variables
• Sometimes it is useful if all instances of a
  class share the same copy of a variable
• Declare variables using keyword static to create
  only one copy of the variable at a time (shared
  by all objects of the type)
• Static class members
• static data
• can be accessed in instance methods and static
  methods
• static methods
• invocation ClassName.MethodName( )
• can only access static data of the class
• Question why not instance data?

See Employee.cs and StaticTest.cs
11
Employee.cs

• 1 // Fig. 8.13 Employee.cs
• 2 // Employee class contains static data and a
  static method.
• 3
• 4 using System
• 5
• 6 // Employee class definition
• 7 public class Employee
• 8
• 9 private string firstName
• 10 private string lastName
• 11 private static int count // Employee
  objects in memory
• 12
• 13 // constructor increments static Employee
  count
• 14 public Employee( string fName, string
  lName )
• 15
• 16 firstName fName
• 17 lastName lName
• 18
• 19 count

Employee destructor
Decrease static member count, to signify that
there is one less employee
12
Employee.cs

• 34 // FirstName property
• 35 public string FirstName
• 36
• 37 get
• 38
• 39 return firstName
• 40
• 41
• 42
• 43 // LastName property
• 44 public string LastName
• 45
• 46 get
• 47
• 48 return lastName
• 49
• 50
• 51
• 52 // static Count property

13
StaticTest.cs

• 1 // Fig. 8.14 StaticTest.cs
• 2 // Demonstrating static class members.
• 3
• 4 using System
• 5
• 6 // StaticTest class definition
• 7 class StaticTest
• 8
• 9 // main entry point for application
• 10 static void Main( string args )
• 11
• 12 Console.WriteLine( "Employees before
  instantiation "
• 13 Employee.Count "\n" )
• 14
• 15 // create two Employees
• 16 Employee employee1 new Employee(
  "Susan", "Baker" )
• 17 Employee employee2 new Employee(
  "Bob", "Jones" )
• 18
• 19 Console.WriteLine( "\nEmployees after
  instantiation "

Create 2 Employee objects
Set Employee objects to null
14
StaticTest.cs Program Output

• 36 // wait until collection completes
  for demo only
• System.GC.WaitForPendingFinalizers()
• 39 Console.WriteLine(
• 40 "\nEmployees after garbage
  collection "
• 41 Employee.Count )
• 42
• 43

Employees before instantiation 0   Employee
object constructor Susan Baker count
1 Employee object constructor Bob Jones count
2   Employees after instantiation Employee.Count
2   Employee 1 Susan Baker Employee 2 Bob
Jones   Employee object destructor Bob Jones
count 1 Employee object destructor Susan
Baker count 0   Employees after garbage
collection 2
15
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference

16
const and readonly Members

• Declare constant members (members whose value
  will never change) using the keyword const
• const members are implicitly static
• const members must be initialized when they are
  declared
• Use keyword readonly to declare members who will
  be initialized in the constructor but not change
  after that

See UsingConstAndReadonly.cs
17
UsingConstAndReadOnly.cs

• 1 // Fig. 8.15 UsingConstAndReadOnly.cs
• 2 // Demonstrating constant values with const
  and readonly.
• 3
• 4 using System
• 5 using System.Windows.Forms
• 6
• 7 // Constants class definition
• 8 public class Constants
• 9
• 10 // PI is constant variable
• 11 public const double PI 3.14159
• 12
• 13 // radius is a constant variable
• 14 // that is uninitialized
• 15 public readonly int radius
• 16
• 17 public Constants( int radiusValue )
• 18
• 19 radius radiusValue

Readonly variable radius must be initialized in
constructor
Initialize readonly member radius
18
UsingConstAndReadOnly.cs Program Output

• 36 MessageBox.Show( "Radius "
  constantValues.radius
• 37 "\nCircumference "

• 38 2 Constants.PI
  constantValues.radius,
• 39 "Circumference" )
• 40
• 41 // end method Main
• 42
• 43 // end class UsingConstAndReadOnly

19
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference

20
Using the this reference

• Every object can reference itself by using the
  keyword this
• Often used to distinguish between a methods
  variables and the instance variables of an object
• e.g., in constructors

See Time4.cs and ThisTest.cs
21
Time4.cs

• 1 // Fig. 8.11 Time4.cs
• 2 // Class Time2 provides overloaded
  constructors.
• 3
• 4 using System
• 5
• 6 // Time4 class definition
• 7 public class Time4
• 8
• 9 private int hour // 0-23
• 10 private int minute // 0-59
• 11 private int second // 0-59
• 12
• 13 // constructor
• 14 public Time4( int hour, int minute, int
  second )
• 15
• 16 this.hour hour
• 17 this.minute minute
• 18 this.second second
• 19

22
Time4.cs

• 29 // convert time to standard-time (12
  hour) format string
• 30 public string ToStandardString()
• 31
• 32 return String.Format(
  "01D22D2 3",
• 33 ( ( this.hour 12 this.hour
  0 ) ? 12
• 34 this.hour 12 ), this.minute,
  this.second,
• 35 ( this.hour lt 12 ? "AM" "PM" ) )
• 36
• 37
• 38 // end class Time4

23
ThisTest.cs Program Output

• 1 // Fig. 8.12 ThisTest.cs
• 2 // Using the this reference.
• 3
• 4 using System
• 5 using System.Windows.Forms
• 6
• 7 // ThisTest class definition
• 8 class Class1
• 9
• 10 // main entry point for application
• 11 static void Main( string args )
• 12
• 13 Time4 time new Time4( 12, 30, 19 )
• 14
• 15 MessageBox.Show( time.BuildString(),
• 16 "Demonstrating the
  \"this\" Reference" )
• 17
• 18

24
Backup Slides
25
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference
• Two more examples
• Rational
• Using objects to draw multiple figures

26
Rational

• How to represent rational numbers such as ½, ¾?
• What methods does a rational number need to
  support?

See Rational.cs and RationalNumbers.cs
27
Outline

• Admin. and review
• More language structures
• object life cycle and finalizer/destructor
• static members
• const and readonly members
• using this reference
• Two more examples
• Rational
• Using objects to draw multiple figures

28
Graphics Drawing Shapes Using the Graphics
class

• Create a Windows application
• In the OnPaint() method, draw any objects you
  want
• Many methods to draw different shapesDrawString(
  string str, Font f, SolidBrush b, int x, int y)
  DrawLine(Pen p, int x1, int y1, int x2, int
  y2)DrawEllipse(Pen p, int x, int y, int width,
  int height)

C uses a coordinate system with the origin at
the upper left corner
29
Example Drawing a Line
10
150
20
45
30
Example Drawing a Rectangle
50
20
page.DrawRectangle (p, 50, 20, 100, 40)
31
The Color Class

• A color is defined in a program using an object
  created from the Color class
• The Color class also contains several static
  predefined colors

32
Using Objects to Draw Figures
See StickFigure.cs and LineUp.cs
