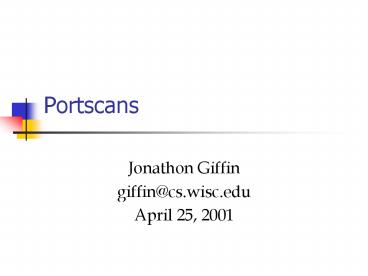

Portscans

1
Portscans

• Jonathon Giffin
• giffin_at_cs.wisc.edu
• April 25, 2001

2
In This Talk...

• Why scan?
• Anatomy of a portscan
• Methods
• Classical detection methods
• Statistical packet anomaly detection
• Responding to a portscan
• QmaybeA

3
Why Portscan Black Hats

• Locate exploitable machines
• Say, FTP Servers
• cecil.cs.wisc.edu (128.105.175.17) open
• bobby.cs.wisc.edu (128.105.175.18) closed
• ross.cs.wisc.edu (128.105.175.19) closed
• joyce.cs.wisc.edu (128.105.175.20) open
• Fingerprint operating systems

4
Administrators

• Monitor services running on own networks
• Test security policies

5
Anatomy of a Portscan

• Scan footprint
• Set of IPs and ports scanned
• Defines attackers information gathering
  requirements
• Horizontal scan
• Scan same port across multiple machines
• Idea attacker has an exploit for this particular
  service

6
Scan Footprint

• Vertical scan
• Scan multiple ports on a single machine
• Idea looking for vulnerable services on a
  specific machine
• e3-16.foundry2.cs.wisc.edu (128.105.100.247)
• 23/tcp open telnet
• 25/tcp filtered smtp
• 111/tcp filtered sunrpc
• 515/tcp filtered printer

7
Scan Footprint

• Block scan
• Host 21 telnet 22 ssh 23 ftp
• cygnet open open open
• cilantro open open open
• xena open open open
• bodik-soho closed closed closed
• salsa open open open
• bobby closed closed closed

8
Anatomy of a Portscan

• Scan script
• Method of carrying out scan
• Defines how a given footprint will be scanned
• Footprint and script together compose a portscan

9
Methods

• Scan tools available
• Nmap
• http//www.insecure.org/nmap/
• Portscans, OS fingerprinting
• QueSO
• http//apostols.org/projectz/queso/
• OS fingerprinting

10
Ping Scan

• Reveals network topology
• Host krishna.cs.wisc.edu (128.105.175.45) appears
  to be up.
• Host ursula.cs.wisc.edu (128.105.175.51) appears
  to be up.
• Host antipholus.cs.wisc.edu (128.105.175.111)
  appears to be up.
• Host ferdinand.cs.wisc.edu (128.105.175.112)
  appears to be up.
• Host wonderwoman.cs.wisc.edu (128.105.175.113)
  appears to be up.
• Host thugbert.cs.wisc.edu (128.105.175.114)
  appears to be up.
• Host paneer.cs.wisc.edu (128.105.175.115) appears
  to be up.
• Host coral.cs.wisc.edu (128.105.175.116) appears
  to be up.
• Host crow.cs.wisc.edu (128.105.175.118) appears
  to be up.
• Host chef.cs.wisc.edu (128.105.175.120) appears
  to be up.

11
UDP Scan

• Send any data to UDP port
• Receive ICMP port unreachable port closed
• No response port open or blocked

12
Vanilla SYN Scan
Client Server
socket bind listen accept accept returns
socket connect connect returns close
SYN
SYNACK
ACK
FIN
13
Vanilla SYN Scan

• crash10.cs.wisc.edu.42977 gt malakai.cs.wisc.edu.te
  lnet S
• malakai.cs.wisc.edu.telnet gt crash10.cs.wisc.edu.4
  2977 S ack
• crash10.cs.wisc.edu.42977 gt malakai.cs.wisc.edu.te
  lnet . ack
• crash10.cs.wisc.edu.42977 gt malakai.cs.wisc.edu.41
  212 F
• Defense
• Log completed connections that are immediately
  closed

14
Half-Open SYN Scan
Client Server
socket bind listen accept
raw socket bind constructed packet constructed
packet
SYN
SYNACK
RES
15
Half-Open SYN Scan

• crash10.cs.wisc.edu.42977 gt malakai.cs.wisc.edu.te
  lnet S
• malakai.cs.wisc.edu.telnet gt crash10.cs.wisc.edu.4
  2977 S ack
• crash10.cs.wisc.edu.42977 gt malakai.cs.wisc.edu.te
  lnet R
• Defense
• Log all SYN packets received

16
Stealth Scans

• Attempt to avoid server logging
• Send invalid TCP packets
• SYNFIN scan
• XMAS scan
• FIN scan
• Windows avoids this scan because its stack is
  broken (surprise)
• Null scan

17
FTP Bounce Scan

• RFC 959 defines FTP proxy
• Run portscan via an FTP proxy

18
Other Possibilities

• RFC 1413 defines ident protocol
• Find services running as root
• crash10.cs.wisc.edu
• Port State Service Owner
• 23/tcp open telnet root
• 25/tcp open smtp root
• 79/tcp open finger root
• 80/tcp open http apache
• 111/tcp open sunrpc rpc
• 113/tcp open auth nobody

19
Other Possibilities

• Insert decoy scans
• microsoft.com.54177 gt malakai.cs.wisc.edu.352 S
• malakai.cs.wisc.edu.660 gt crash10.cs.wisc.edu.5417
  7 R
• crash10.cs.wisc.edu.54177 gt malakai.cs.wisc.edu.12
  8 S

20
OS Fingerprinting

• Identification of the operating system running on
  a remote machine
• Different kernels perform differently
• TCP options
• Initial sequence number
• ICMP error messages
• IP fragment overlap

21
OS Fingerprinting

• Machine Operating System
• www Solaris 2.6-2.7, Solaris 7
• pub-nt2 WinNT4 / Win95 / Win98
• malakai Linux 2.1.122 - 2.2.14
• e3-16.foundry2 No OS Match
• dns Solaris 2.6-2.7, Solaris 7
• crash8 Linux 2.1.122 - 2.2.14
• crash10 Linux 2.1.122 - 2.2.14
• crash12 No OS Match
• openbsd.org Solaris 2.6

22
Classical Detection

• N events in time M
• Typically measure hits on closed ports
• Slow scan down to avoid detection
• Heuristics
• Hits on empty IP addresses

23
Statistical Packet Anomaly Detection

• Stuart Staniford, James Hoagland, and Joseph
  McAlerny of Silicon Defense
• Practical Automated Detection of Stealthy
  Portscans
• Conjecture
• Traffic patterns characteristic of portscans have
  low rates of occurrence

24
Statistical Packet Anomaly Detection
Anomaly correlation engine
Layer 2
Layer 1
Anomaly detection engine
Packet collection Probability table construction
Layer 0
25
Layer 0

• Build characteristic of expected traffic
• Packet collection
• Filtering
• Probability table construction
• Using header features, store probability of any
  given packet entering the network
• Adapt probabilities to changing network use

26
Layer 1

• Anomaly detection
• Rate the anomalousness of each incoming packet
• Pass any packet with anomalousness above an
  anomaly threshold to the correlator

27
Layer 2

• Anomaly correlation
• Reconstruct portscans from anomalous traffic
• Find clusters of similar packets

28
Data Flows
Alarms
Anomaly correlation engine
Anomaly detection engine
Incoming packets
Packet collection
Prob table construction
29
Implementation

• Packet collection
• Restricting to SYN packets
• Probability tables
• Relevant header fields
• Joint probabilities
• Bayes Net

30
Mutual Entropy

• 4.9 million SYN packets incoming to CS networks
• H( DestAddr ) 6.927819
• H( DestAddr SrcAddr ) 2.091069
• H( DestAddr DestPort ) 4.064494
• H( DestAddr SrcAddr, DestPort ) 1.274497
• H( DestAddr SrcPort ) 4.631317
• H( DestAddr SrcAddr, SrcPort ) 1.075178
• H( DestAddr DestPort, SrcPort ) 2.580522
• H( DestAddr Time ) 5.348499
• H( DestAddr SrcAddr, Time ) 0.862256
• H( DestAddr DestPort, Time ) 1.540623
• H( DestAddr SrcPort, Time ) 1.508940

31
Bayes Net
DestPort
SrcPort
Timestamp
SrcIP
DestIP
32
Anomaly Detection Engine

• Stanifords model packets in isolation
• Experiment N size window

p1
pN
Given packets ,
33
Anomaly Correlation Engine

• Stanifords algorithm bond graph
• ad hoc clustering method
• Experiment use established clustering algorithms

34
Field Relationships in a Vertical Scan Example

• 128.105.175.293776 gt 146.151.62.116224,TCP
• 128.105.175.293777 gt 146.151.62.116662,TCP
• 128.105.175.293778 gt 146.151.62.116768,TCP
• 128.105.175.293779 gt 146.151.62.116789,TCP
• 128.105.175.293780 gt 146.151.62.1162016,TCP
• 128.105.175.293781 gt 146.151.62.116194,TCP
• 128.105.175.293782 gt 146.151.62.1166009,TCP
• 128.105.175.293783 gt 146.151.62.116570,TCP
• 128.105.175.293784 gt 146.151.62.116493,TCP
• 128.105.175.293785 gt 146.151.62.1161393,TCP
• 128.105.175.293786 gt 146.151.62.1161007,TCP

35
Open Questions

• Data set size necessary to establish traffic
  characteristic
• Relevant header fields
• Manner of measuring probability
• Threshold values
• Malleability of traffic characteristic
• Packet types captured

36
Advantages of Statistical Packet Anomaly Detection

• Adaptive to changing network topology
• Encompasses classical detection methods
• Useful beyond port scans

37
Disadvantages

• Learning curve may be slow
• Anomalous packets skew expected traffic
  characteristic
• Does not evaluate payload
• Few relevant header fields
• Correlator must handle many false positives

38
Responding to a Port Scan

• What is appropriate action?
• No legal recourse
• Block at firewall? Set up for DoS
• microsoft.com gt malakai.cs.wisc.edu icmp echo
  request
• Log for later legal purposes?
• Tighten network security?

39
Recap

• Purposes
• Exploration of remote services
• OS fingerprinting
• Port scans have evolved to counter detection
  methods
• Classical detection methods inadequate
• Statistical packet anomaly detection offers an
  adaptive scan identifier

40
Questions?

• Maybe Ill know the answer
• But hey, I do know slides are posted at
  http//www.cs.wisc.edu/giffin

41
References

• Fyodor. The Art of Port Scanning. Phrack 51,
  volume 7. September 1, 1997.
• Fyodor. Remote OS detection via TCP/IP Stack
  Fingerprinting. Phrack 54, volume 8. December
  25, 1998.
• Maimon, Uriel. Port Scanning Without the SYN
  Flag. Phrack 49, volume 7.
• Man pages, nmap.
• Solar Designer. Designing and Attacking Port
  Scan Detection Tools. Phrack 53, volume 8.
  July 8, 1998.
• Staniford, Stuart, James A. Hoagland, Joseph M.
  McAlerny. Practical Automated Detection of
  Stealthy Portscans.
