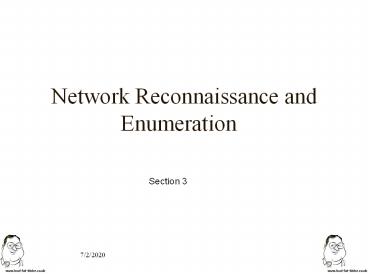

Network Reconnaissance and Enumeration

1
Network Reconnaissance and Enumeration
Section 3
2
Outline Passive Enumeration

• ARP
• Network Sniffing

3
Outline Active Enumeration

• Ping
• Traceroute
• Port/Service Scanning
• Banner Grabbing
• OS Fingerprinting
• Firewalking
• SNMP
• Routing Daemons

4
Objective

• Targeted Network Reconnaissance
• Network topology
• Host systems
• Host applications/services
• Host configuration
• Host users accounts
• Naming conventions

5
Passive Enumeration

• Generally LAN based
• Generally undetectable

6
ARP Enumeration

• All systems with IP stacks will have ARP
• Local ARP table contains a list of all MAC
  addresses mapped to IP addresses
• First 6 bytes of MAC address identify card/system
  vendor (e.g)
• 00067Cxxxxxx Cisco
• 080020xxxxxx Sun
• ARP mappings are gathered and released
  automatically by the system

7
ARP Enumeration

• Use the arp -a command to get access to the
  local ARP table
• C\gtarp -a
• Interface 158.177.248.190 on Interface 4
• Internet Address Physical Address
  Type
• 158.177.248.1 00-00-0c-07-ac-02
  dynamic
• 158.177.248.2 00-d0-d3-38-68-08
  dynamic
• 158.177.248.3 00-d0-d3-36-08-84
  dynamic
• 158.177.248.191 00-d0-59-05-d2-13
  dynamic

8
Network Sniffing

• Placing a network adapter in promiscuous mode
  enables the reception of all network traffic
  passing the adapter.
• Most effective on non-switched networks
• Even on switched networks all broadcast traffic
  may be received
• No valid IP address required

9
Network Sniffing What do we get?

• MAC addresses
• IP addresses and IP structure
• RIP, OSPF packets
• System names
• NetBIOS broadcasts
• Cisco Discovery Protocol
• IPX service announcements
• Default gateways
• Not to mention usernames, passwords and databut
  more on that later

10
Network Sniffing The Tools

• Windows
• NetMon (Microsoft)
• Sniffer Pro (NAI)
• Tcpdump winpcap (GPL)
• UNIX
• Tcpdump (GPL)
• Etherreal (GPL)
• Dsniff (more attack than recon GPL)

11
Network Sniffing - Filtering

• On high throughput networks use capture filters
• Whole packet is usually not needed just headers
  and start of data portion
• Any IP or TCP/UDP protocol may be included or
  excluded from a capture filter
• Noisy addresses may be filtered out
• All network sniffing tools support filtering to
  some degree
• For extended periods of sniffing filters will be
  essential

12
Network Sniffing - tcpdump

• Console based, highly configurable, low resource
  usage.

13
Network Sniffing Ethereal
14
Active Enumeration

• Can yield a great deal of data
• Can be detected
• May require specialised software/OS

15
The Mighty Ping

• Used to determine host reachability
• Nearly all systems with an IP stack have a ping
  facility
• Uses the ICMP protocol
• Provides
• Round trip time (RTT)
• Time to live (TTL) indicates hop-count
• Generally unnoticed if used in moderation

16
Ping test
H A C K E R
T A R G E T
ICMP Echo Request
ICMP Echo Response
17
Ping - Usage

• Ping is used on one system at a time
• It is possible to ping a broadcast address,
  sometimes multiple responses are returned
• C\gtping 158.177.248.1
• Pinging with 32 bytes of data
• Reply from bytes32 time1ms TTL255
• Reply from bytes32 time1ms TTL255
• Reply from bytes32 time1ms TTL255
• Reply from bytes32 timelt10ms TTL255
• Packets Sent 4, Received 4, Lost 0 (0
  loss)
• RTT Minimum 0ms, Maximum 1ms, Average 0ms

18
Ping Sweeping

• Ping-sweeping is a term for sweeping multiple
  addresses with a ping query to determine host
  reachability.
• Used for finding targets within a network range.
• Will not work on targets that have ICMP traffic
  filtered or blocked.
• Tools such as NMAP, MingSweeper and Pinger will
  perform a ping-sweep.

19
More with ping Identifying the Firewall
Good commercial firewalls block time stamp
requests and source routed packets. Use ping to
send them, and it will show there is a firewall
in the way ping -v -T tsandaddr
10.0.0.120 PING 10.0.0.120 (10.0.0.120) from
10.0.0.1 56(124) bytes of data. --- 10.0.0.120
ping statistics --- 16 packets transmitted, 0
received, 100 loss ping -v -T tsandaddr
10.0.0.125 PING 10.0.0.125 (10.0.0.125) from
10.0.0.1 56(124) bytes of data. --- 10.0.0.125
ping statistics --- 8 packets transmitted, 0
received, 100 loss
20
More fun with ICMP Identifying the Firewall
W Richard Stevens a god amongst men and author
of TCP/IP Illustrated etc left us with the
ability to to generate ICMP address mask requests
and ICMP time requests icmpaddrmask
10.0.0.120 Received mask fffff00, from
10.0.0.120
21
Traceroute

• Used to determine both connectivity AND the IP
  route used to reach the target.
• Available on most but not all systems that have
  an IP stack.
• Relies on the fact that routers should always
  decrement the TTL of a packet as it passes.
• Generally uses ICMP packets on Windows and UDP
  packets on UNIX systems. However any IP protocol
  could be used in theory.

22
Traceroute - Visual route
Probably the Firewall or the perimeter router
23
Port/Service Scanning

• Used to determine what TCP or UDP ports are
  available on a target system.
• The scanner will attempt to connect to each port
  on the target.
• The scanner should detect the port in one of
  three states
• Closed port reachable but no service present
• Open port is reachable and service is present
• Filtered port is non-reachable, possible
  firewall or packet filter is present

24
Background to TCP scanning

• Determine what ports of a host are listening for
  connections
• 4 main types of TCP scans
• TCP connect()
• SYN scan
• FIN scan Null ACK XMAS
• Fragmentation scanning

25
TCP Connect Scan

• Uses a system call provided by the operating
  system
• If the port is listening, connect will succeed
• Does not require any special privileges
• Easily detectable
• Most reliable
• Cannot usually detect filtered ports

26
TCP Connect

• The Three-way handshake

C L I E N T
T A R G E T
27
SYN Scan

• Commonly referred to a half open scanning
• Sends a SYN packet and waits for a response
• A SYN/ACK response indicates port is listening
• A RST packet indicates the port is not listening
• Less likely to be logged
• No response indicates port is filtered
• Requires raw sockets requiring root or
  Administrator privileges
• Some IDS confuse this with a SYN flood

28
FIN Scan Null XMAS

• More stealthy than a SYN scan
• Reply with a proper RST packet indicates that the
  port is closed
• Open ports tend to ignore the FIN packet
• However Microsoft boxes tend to send a RST packet
  regardless
• Can be used to differentiate a Unix box from a
  Microsoft box

29
ACK Scan

• Not used to identify open and closed ports
• Used to identify filtered ports
• Can be useful for mapping packet filter rules

30
Fragmentation scanning

• A modification of other techniques of scanning
• Breaks the probe packet into a couple of small IP
  fragments
• Breaking up the TCP header into several smaller
  packets makes it harder to detect and some packet
  filters will pass the packet unchecked rather
  than wait for all of the fragments to arrive.

31
UDP Port Scanning

• Single UDP packet to each port being tested
• Closed ports respond with an ICMP unreachable
  message.
• Open ports will NOT respond
• Filtered ports will NOT respond
• Results can be ambiguous on filtered targets
• Can be very slow due to ICMP message rate
  limiting which is specified within the RFCs
  describing IP ICMP. Some systems do not
  implement this (e.g. all Windows systems.)

32
Banner Grabbing

• The process of examining banner strings returned
  by services bound to open TCP ports
• Enables identification of service applications
  including software version.
• Not effective for non-character based services
  (e.g. SMB, HTTPS)
• Some service applications will not send banner
  information until prompted (e.g. HTTP)
• Useful for identification of service applications
  on non-standard ports

33
Banner Grabbing Manual Testing

• Use netcat or telnet to connect to the port

C\nc 10.0.0.120 25 220 Sendmail/8.8.8 ESMTP
Looks like Sendmail 8.8.8 mail server - easy
34
Banner Grabbing - Automation
35
Fingerprinting

• Stack fingerprinting is used to determine the
  operating system of a target host
• Utilises differences in the implementation of the
  IP stacks
• Involves sending non-standard packets to the
  target and examining any responses
• Not always accurate
• Very easy to spot for IDS

36
Fingerprinting A Simple Test

• A single ping can be used to aid in OS detection
  and is a very basic way of fingerprinting a
  target.

Windows !!
ping 10.0.0.120 PING 10.0.0.120 56(84)
bytes of data. 64 bytes from 10.0.0.120
icmp_seq1 ttl128 time0.280 ms --- 10.0.0.120
ping statistics ---

• Note that TTL128 in the reply. That almost
  guarantees that the target is a Windows system of
  some description.

37
Fingerprinting A Simple Test

• Here are the default TTL (Time To Live) values
  for a few common systems
• Cisco Devices 255
• Most Windows Systems 128
• Windows 95 32
• Linux lt 2.0.x 64
• Linux gt 2.1.x 255
• Solaris 255

38
Advanced IP Stack Fingerprinting

• Involves sending crafted packets to the target
• Ideally requires gt1 open port and gt1 closed
  port
• Packet filters, firewalls and transparent proxies
  can render IP stack fingerprinting useless when
  using automated tools such as NMAP, Queso or
  MingSweeper because they sometimes re-write
  packets.

39
Advanced IP Stack Fingerprinting

• Tools for automated stack fingerprinting
• NMAP stack fingerprinting
• Xprobe ICMP stack fingerprinting
• MingSweeper combined NMAPICMP
• Queso early stack fingerprinting, NMAP draws
  tests from this software.

40
NMAP

• Network Mapper
• Open source utility for network exploration
• Its functions include a wide variety of port
  scanning mechanisms, OS detection and ping
  sweeps.
• Runs on most Unix based operating systems
• Has a graphical user interface
• Its FREE!

41
nmap -sS -n -p 1-10000 10.0.0.125 Starting
nmap 3.48 ( http//www.insecure.org/nmap/ ) All
10000 scanned ports on 10.0.0.125 are
filtered Nmap run completed -- 1 IP address (1
host up) nmap -sU -n -p 1-10000
10.0.0.125 Starting nmap 3.48 (
http//www.insecure.org/nmap/ ) All 10000
scanned ports on 10.0.0.125 are filtered Nmap
run completed -- 1 IP address (1 host up)
42
Mingsweeper

• Windows based network reconnaissance utility
• Performs ping sweeps, Reverse DNS sweeps, TCP
  UDP port scans, OS identification and application
  identification.
• It is also FREE!

43
Scanning - Ming-sweeper
44
Stack Fingerprinting Test Probes

• NMAP tests comprise of 9 probes
• TClass TCP Initial Sequence Number probe
• T1 to T4 Four TCP open port probe
• T5 to T7 Three TCP closed port probe
• PU Port Unreachable UDP probe
• MingSweeper adds 4 probes
• I1 Four ICMP echo probes
• I2 Four ICMP timestamp probes
• I3 Four ICMP address mask probes
• I4 Four ICMP information query probes

45
Firewalking

• Attempting to route packets through firewall
• Vary IP protocol, TCP/UDP port numbers
• Use decrementing TTL values to illicit responses
  from devices behind firewall
• Not particularly successful on modern firewall
  systems

46
Firewalking

• Hping useful tool for generating many types of
  hand-crafted IP packets. UNIX only.
• Mptraceroute performs traceroutes using
  multiple IP protocols and allowing port
  specifications. Win 2000/XP only.

47
Identifying the FW Ike-scan
ike-scan -v 10.0.0.125 Starting ike-scan 1.6
with 1 hosts --- Pass 1 of 3 completed --- Pass
2 of 3 completed --- Pass 3 of 3 completed
Ending ike-scan 1.6 1 hosts scanned in 22.595
seconds (0.04 hosts/sec). 0 returned handshake
0 returned notify
48
Identifying the Firewall - LFT
lft -vv E -n 10.0.0.120 Looks like we made
it. Everyone responded. Moving on... Will
finish TWO Concluding with 2 hops. TTL LFT
trace to 10.0.0.12080/tcp 4.2 BSD bugnext
gateway may errantly reply with reused TTLs 1
target 10.0.0.12080 6.5ms 4.2 BSD bugnext
gateway may errantly reply with reused TTLs 2
target 10.0.0.12080 1.6ms
49
SNMP Enumeration

• Community string is equivalent to a password used
  to control access to node information
• Very often set to public and private
• All transmissions are in clear text
• SNMP daemons found on many network devices and
  hosts systems.
• Generally all SNMP nodes in a network share the
  same community name

50
SNMP Enumeration

• SNMP community names can be brute forced easily
• SNMP can yield a huge amount of information
• ARP tables
• Routing tables
• Device specific information
• Traffic statistics
• Host based SNMP daemons may yield process,
  service and user information (e.g. Windows NT
  SNMP service)

51
SNMP Enumeration Tools

• Snmpget Unix and Win32 tool for enumerating
  individual SNMP keys
• Snmpwalk unix and Win32 tool for enumerating
  whole or partial MIB trees

52
Routing Daemons

• Network topology is broadcast and may be obtained
  by network sniffing
• Routers may be queried directly for routing and
  topology information
• Network topology maps may be built using data
  obtained from routing daemons on hosts and
  routers
• Can be more thorough and less intrusive than
  multiple traceroute queries

53
Route Analysis Tools

• Ripquery
• A diagnostic tool for interrogating RIP gateways
• Have a look on the Net for a RIP Spoofing tool
  I wrote a decade ago
• BGP
• looking glass servers divulge BGP information
  about routes
• Ospf_monitor
• A diagnostic tools for interrogating OSPF routers

54
Network Reconnaissance and Enumeration
Section 3
