Analysis of the SPIDER FaultTolerance Protocols

1

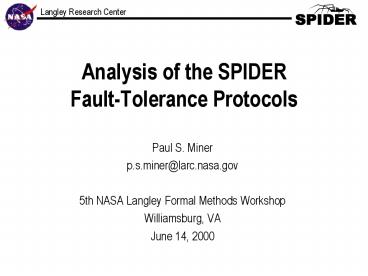

Analysis of the SPIDER Fault-Tolerance Protocols

• Paul S. Miner
• p.s.miner_at_larc.nasa.gov
• 5th NASA Langley Formal Methods Workshop
• Williamsburg, VA
• June 14, 2000

2
What is SPIDER?

• A general purpose fault-tolerant architecture
• Scalable Processor-Independent Design for
  Electromagnetic Resilience
• Intended to serve as a platform to explore
  recovery strategies for HIRF/EMI induced faults
• Developed as part of an FAA funded case-study to
  exercise RTCA DO-254 Design Assurance Guidance
  for Airborne Electronic Hardware

3
RTCA DO-254/EUROCAE ED-76

• Developed by RTCA Special Committee 180 and
  EUROCAE Working Group 46
• Approved by RTCA Program Management Committee in
  April 2000
• Approved by EUROCAE(?)
• FAA Advisory Circular (?)
• Earliest would be sometime this fall

4
Formal Methods in DO-254

• Formal Methods is one of the advanced analysis
  techniques suggested when developing hardware to
  support safety-critical (Level A or B) aircraft
  functions
• DO-254 section on Formal Methods based upon
  material from NASA Formal Methods Guidebook,
  Volume II, (NASA-GB-001-97)

5
DO-254 Case-Study Participants

• NASA LaRC (Design Team)
• Paul Miner, Project Lead
• Mahyar Malekpour, Design Engineer
• Wilfredo Torres-Pomales, Design Engineer
• Victor Carreño, Process Assurance
• FAA (Sponsor and Certification Liaison)
• Leanna Rierson, Pete Saraceni, Dennis Wallace,
  Connie Beane, and Will Struck

6
Strategy for DO-254 Case-Study

• Fault-tolerance protocols and reliability models
  use the same fault classifications
• Reliability analysis using SURE (Butler)
• Calculates P(enough good hardware)
• Formal proof of fault-tolerance protocols using
  PVS (SRI)
• enough good hardware gt correct operation

7
SPIDER Design Concept

• Inspired by several earlier designs
• Main concept inspired by Palumbos Fault-tolerant
  processing system (U.S. Patent 5,533,188)
• Developed as part of Fly-By-Light/Power-By-Wire
  project
• Other ideas from Drapers FTPP, FTP, and FTMP
  Allied-Signals MAFT SRIs SIFT Kopetzs TTA
  Honeywells SAFEbus . . .

8
SPIDER Architecture

• N simplex general purpose nodes logically
  connected via a Reliable Optical BUS (ROBUS)
• A ROBUS is an ultra-reliable unit providing basic
  fault-tolerant services
• A ROBUS is implemented as a special purpose
  fault-tolerant device

9
SPIDER Architecture
4
3
5
ROBUS
2
6
1
7
0
10
Logical View of ROBUS

• ROBUS operates as a time-division multiplexed
  access broadcast bus
• ROBUS strictly enforces write access
• no babbling idiots
• Processing nodes may be grouped to provide
  differing degrees of fault-tolerance
• some voting available within ROBUS

11
Logical view of ROBUS(Sample Configuration)
0
4
2
3
1
6
5
7
ROBUS
12
ROBUS Characteristics

• Bus access schedule statically determined
• similar to SAFEbus, TTA
• Some fault-tolerance functions provided by
  processing nodes
• ROBUS will not have general purpose processing
  capabilities
• Processing Elements need not be uniform
• support for dissimilar architectures

13
ROBUS Requirements

• All fault-free nodes observe the exact same
  sequence of messages
• ROBUS provides a reliable time source (RTS)
• The nodes are synchronized relative to this RTS
• ROBUS provides correct and consistent system
  diagnostic information to all fault-free nodes
• For 10 hour mission, P(ROBUS Failure) lt 10-10

14
Interactive Consistency(Byzantine Agreement)

• Agreement For any message, all non-faulty
  receiving nodes will agree on the value of the
  message
• Validity If the originator of the message is
  non-faulty, good receivers will receive the
  message sent

15
Clock Synchronization

• Precision There is a small positive constant
  dmax such that for any two clocks that are good
  at t,
• C1(t) - C2(t) ? dmax
• Accuracy All good clocks maintain an accurate
  measure of the passage of time (within a linear
  envelope of real time)

16
Diagnosis

• Correctness Every node diagnosed as faulty by a
  good node is faulty
• A good node can never conclude that another good
  node is faulty
• Completeness Every faulty node is (eventually)
  diagnosed as being faulty
• This is not always possible (pathological case
  involves asymmetric fault)

17
Physical Segregation

• ROBUS decomposed into physically isolated Fault
  Containment Regions (FCR)
• Two main design elements
• Bus Interface Unit (BIU)
• Redundancy Management Unit (RMU)
• Processing elements may form separate FCRs
• FCRs fail independently
• This is necessary to achieve reliability goals

18
ROBUS Topology
19
Hybrid Fault Assumptions

• The failure status of an FCR is subdivided into
  four mutually exclusive cases
• Good (or fault-free)
• Benign Faulty (Known bad by all good)
• Symmetric Faulty (Same to all good)
• Asymmetric Faulty (Byzantine, Malicious)
• This is a global classification, individual FCRs
  do not know the failure status of other FCRs

20
Fault Classification

• Partition the RMUs into disjoint subsets based
  upon fault classification
• GR, BR, SR, and AR for good, benign, symmetric,
  and asymmetric RMUs respectively
• Similarly partition the BIUs
• GB, BB, SB, and AB

21
Tolerating Asymmetric Faults

• Requires 3f 1 participants in protocol to
  withstand f simultaneous asymmetric faults
• Requires 2f 1 disjoint communication paths
  between any two participants
• Requires f 1 levels of communication
• ROBUS Topology satisfies these conditions for N ?
  3, M ? 3, f 1
• For target reliability, we must tolerate at least
  1 asymmetric fault

22
Interactive Consistency

• SPIDER IC protocol is simple adaptation of IC
  algorithm for Draper FTP Architecture
• Existing PVS proof due to Lincoln and Rushby,
  COMPASS94, pages 107-120
• Protocol generalizes one suggested in
• Daniel Davies and John Wakerly, Synchronization
  and Matching in Redundant Systems, IEEE Trans. on
  Computers, Vol. C-27, No. 6, June 1978

23
SPIDER IC Protocol

• Algorithm OMS (ignoring hybrid fault model)
• 1. Processing element j sends value v to BIU j
• 2. BIU j broadcasts v to all RMUs
• 3. All RMUs broadcast value received from BIU j
  to all BIUs
• 4. Each BIU votes on the values received from the
  RMUs to determine value from j
• 5. Each BIU forwards the voted value to its PE

24
Adapting for hybrid faults

• Simple modification to steps 3 and 4 to enable
  special handling of manifestly bad messages
• from benign faulty or asymmetrically faulty
  sources
• OMHS(p,v,q) denotes the value received by q, when
  p broadcast value v using hybrid oral messages
  protocol on SPIDER
• Verified in PVS, using simple modifications to
  Lincoln and Rushbys proof of the Draper FTP
  Interactive Consistency Protocol

25
Interactive Consistency Results

• Agreement For BIU g, if (AR 0) or (g ? AB
  and GR gt SR AR), then for p,q ? GB
• OMHS(g,v,p) OMHS(g,v,q)
• Validity If GR gt SR AR, then for p ? GB

• If g ? GB, then OMHS(g,v,p) v
• If g ? BB, then OMHS(g,v,p) Error
• If g ? SB, then OMHS(g,v,p) sent(g,v)

26
Alternative Verification Options

• For a fixed number of participants, it is easy to
  demonstrate correctness of Interactive
  Consistency protocol using symbolic simulation
• Amount of effort needed to verify using theorem
  prover is negligible
• PVS proof is mostly symbolic evaluation
• there is a small amount of deductive reasoning
  to evaluate the abstract specification of hybrid
  majority

27
Clock Synchronization Goal

• To match the degree of Fault-Tolerance of the IC
  protocol, the synchronization protocol should
  ensure synchronization using the following fault
  assumptions
• GR gt SR AR
• Not (AR gt 0 AB gt 0)

28
Clock Synchronization

• Need added assumption
• GB gt SB AB
• With this assumption, a modified form of the
  Davies and Wakerly protocol (1978, IEEE ToC)
  ensures synchronization of the RMUs
• Modified protocol is similar to the Srikanth and
  Toueg protocol (1987, JACM)

29
Clock Synchronization Basics

• Clocks (counters) driven by oscillator with a
  bounded drift (?) from its stated frequency
• Periodically (every P ticks) clocks will adjust
  the count based on exchange with other clocks
• The periods are indexed by round number (k)
• Protocol seeks to ensure that at beginning of
  every round, all good clocks are within dmin

30
Synchronization Basics

• If all good clocks start round within dmin of
  each other, by the end of the round they can be
  at most dmin 2 ? P apart
• If good clocks then make a small adjustment so
  that they start the next round within dmin, then
  both precision and accuracy are satisfied
• Several machine checked proofs exist

31
Network Imprecision

• There is imprecision in communication
• If a node transmits a message at time t,
  observing nodes will receive it within time
  interval
• t d, t d e
• d is the minimum communication delay
• e is the inherent imprecision (e gt (1 ?) ticks)
• e is a lower bound on synchronization precision
• For many Byzantine Resilient protocols,
• dmin ? 2e

32
Simple Protocol (for round k)

• RMU (Perform the following concurrently)
• If Ready?(k) then broadcast (round k) to all BIUs
• If Accept?(k) then reset counter for round k
• BIU
• If Accept?(k) then broadcast (round k) to all
  RMUs

33
Informal Description

• Each good RMU broadcasts when its clock reaches a
  specific value
• Each good BIU waits until it knows it has
  received a message from at least one good RMU.
  It then relays this information to all RMUs
• Each RMU waits until it knows it has a message
  from at least one good BIU before resetting

34
Ready and Accept

• Ready?(k) is an event triggered by a
  pre-determined local counter value, kP - a,
• a is a constant offset for communication delays
• P is the nominal duration of a round
• k is the round index
• Degree of fault-tolerance is determined by
  Accept?(k)

35
Accept?(k)

• Wait until there is a hybrid majority of observed
  (round k) events to trigger Accept?(k)
• A selection function under the hybrid fault model
  ignores manifestly bad values
• This protocol ensures that all good RMUs accept
  (round k) within a short time interval, provided
  the maximum fault assumptions are not violated
• Can also synchronize BIUs by echoing RMU accept

36
Verification in PVS

• Built generic clock synchronization theory in PVS
• PVS theory from Ulm introduced too much potential
  error in formulation of clock drift assumptions
• New theory allows proofs of clock skew as tight
  as best theoretical results
• Support for some protocols absent
• All pieces in place to complete SPIDER
  verification
• Estimate 1-2 weeks effort to tie up loose ends

37
Alternative Verification Options

• Protocol is (almost) finite state
• Should be possible to use a model checker to
  confirm that all good nodes start each round
  within dmin of each other
• Plausible tools for this are HyTech, UPPAAL
• Still need theorem prover to get Precision and
  Accuracy results
• Theorem prover can verify for arbitrary number of
  participants

38
Diagnosis

• Plan to adapt MAFT on-line diagnosis algorithms
  to SPIDER architecture
• MAFT algorithms previously verified using PVS
• Chris Walter, Patrick Lincoln, and Neeraj Suri.
  Formally verified on-line diagnosis, IEEE Trans.
  On Software Engineering, Nov. 1997
• For diagnosis of Processing Elements, there exist
  verified Group Membership protocols
• Katz, Lincoln, and Rushby, Low overhead
  time-triggered group membership, In 11th Workshop
  on Distributed Algorithms (WDAG97), pages
  155-169, LNCS 1320

39
Summary

• New conceptual design for a family of
  fault-tolerant systems
• Design being developed using DO-254 guidance
• Critical fault-tolerance verified using PVS
• Able to reuse or adapt many existing proofs of
  fault-tolerance protocols
• Unable to reuse existing Clock synchronization
  proofs

40
Future Plans

• Report documenting SPIDER Conceptual design and
  proofs of fault-tolerance by end of summer
• First laboratory prototype implementation of
  SPIDER by December
• Second generation design in 2001
