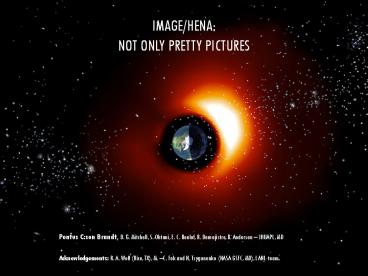

IMAGE/HENA: NOT ONLY PRETTY PICTURES

1
IMAGE/HENANOT ONLY PRETTY PICTURES

• Pontus Cson Brandt, D. G. Mitchell, S. Ohtani,
  E. C. Roelof, R. Demajistre, B. Anderson
  JHUAPL, MD
• Acknowledgements R. A. Wolf (Rice, TX), M. C.
  Fok and N. Tsyganenko (NASA GSFC, MD), LANL-team

2
OUTLINE

1. IMAGE mission
2. Why ENA imaging?
3. MI-coupling at work
4. Global substorms?
5. Next step multi-point observations
6. What else?
7. Conclusions

3
B. R. Sandel, Univ. of Arizona Lead Investigator
4
THE IMAGE MISSION

• Lifetime 2000-2005
• 800 x 8 Re solar inertial orbit (more later on
  orbit)
• LENA 50 eV-10 keV
• MENA 1-50 keV
• HENA 10-200 keV (hydrogen) 50-180 keV (oxygen)
• FUV auroral imager (proton and electron aurora)
• EUV plasmaspheric imager. Images light
  resonantly scattered sunlight scattered on He.

5
Charge Exchange
A magnetically trapped ion captures an electron
from a neutral hydrogen atom...
creating an energetic neutral atom (ENA) that is
no longer trapped.
6
(No Transcript)
7
(No Transcript)
8
High-Energy Neutral Atom (HENA) Imager
Lead Investigator D. Mitchell, Applied Physics
Lab
9
STORM AS SEEN BY HENA March 31 2001 (60-119 keV
protons)
-40 nT
21 nT
26 nT
0730 UT
0830 UT
0930 UT
10
WHY ENA IMAGING?

• The only way to image proton plasma.
• The hot plasma (ring current/plasma sheet) in the
  Terrestrial magnetosphere has proven to be more
  dynamic than anticipated.
• Need to measure global pressure on timescales lt
  10-20 min.
• All of the region 2 and probably a large portion
  of the nightside region 1 current system is
  PRESSURE DRIVEN.

11
MEASURED/COMPUTED QUANTITIES
SCIENTIFIC UNDERSTANDING
ENA
STORM, SUBSTORM DYNAMICS
PRESSURE
CURRENTS
MI-COUPLING
B-FIELD TOPOLOGY
DB (Biot-Savarts)
ADIABATIC EFFECTS ON RADIATION BELTS
12
Drawback when using PAD components currently the
same PAD everywhere in space.
13
(No Transcript)
14
Dipole validity
15
(No Transcript)
16
IONS ? CURRENT
17
(No Transcript)
18
Field aligned currents (FAC)(Region 2 system)
HENA
IRIDIUM (Courtesy Dr. B. Anderson, JHUAPL)
Micro A/m2
-0.91
-0.1
0.1
0.91
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
WHAT HAVE WE LEARNED SO FAR?

• The morphology of the storm-time ring current
  depends heavily on the ionospheric conductivity.
• Storm main phase ring current peaks around
  midnight.
• Storm-time substorm injections can have an
  extreme local time extent (to noon).
• Heavy ions (O) are energized dramatically during
  storm-time substorms.
• Storm-substorm relationship confirming the
  convection dominated storm picture.

23
MI COUPLING AT WORK (Storm main phase modeling
by M. C. Fok et al., JGR, 2001)
NEW PICTURE
OLD PICTURE
24
MI COUPLING AT WORK
The Comprehensive Ring Current Model (CRCM) Fok
et al., 2001 computes the E-field
self-consistently via the closure through the
ionosphere. Matches HENA observations.
25
MI-COUPLING AT WORK

• Old picture storm-time ring current peaks at
  dusk, because thats where the Alfven layer comes
  closest to the Earth in a dawn-dusk E-field.
• New picture Wolf, 1980 Fok et al., 2001
  storm-time ring current peaks at midnight.
  Consistent with IMAGE results Cson Brandt et
  al., 2002.
• Mechanism
• The convectional E-field (dawn-dusk) try to force
  Hall currents to flow across the terminators
  (conductivity jump)?positive charge
  build-up?skewing of potential pattern.
• Probably some additional intricate effects.

26
SubAuroral Polarization Stream (SAPS) (Foster et
al., EOS and JGR, 2002)
27
GLOBAL SUBSTORMS?

• Substorms during extended storm main-phases
  appears to have an extremely wide injection front
  that can wrap around the Earth.
• Are we dealing with an azimuthal current sheet
  rather than a cross-tail current?

28
0903 MLT
1110 MLT
1714 MLT
29
(No Transcript)
30
(No Transcript)
31
1940 MLT
32
2304 MLT
33
NOT PARTICLE TRANSPORT!

• LANL, 75-113 keV. Propagation speed 11.4
  deg/min
• Proton drift speed at L6.6, E100 keV is 22
  deg/min
• GOES B-field. Propagation speed 8.5 deg/min
• A survey of events have shown that dipolarization
  and particle injections go together. The most
  extreme injection/dipolarization at noon,
  midnight and dawn!
• Dipolarization at extended local times?
• Propagating dipolarization in the B-field, or,
• An azimuthally propagating current sheet
  disruption?
• HENA give insight in the local time extent.

34
MULTI-POINT OBSERVATIONS

• One single image cannot resolve the PAD (to any
  good accuracy)!
• Chinese mission with Irish/Swedish ENA imager
  will launch in mid 2004.
• IMAGE will then be close to Equator and on its
  way to south-pole apogee.?
• one polar vantage point and on at the equator can
  resolve large-scale pitch-angle distributions
  (PAD) for the first time!
• Specifically is there a high-energy (100 keV)
  component of trapped ions during storm main
  phase?
• Perigee passes with IMAGE and simultaneous apogee
  passes with DSP will give essential information
  on upper atmosphere interactions during different
  phases of the storm/substorm.
• Note tomography requires far more vantage points
  than just a couple.

35
CONJUNCTIONS
JAN 2001
JAN 2002
JAN 2003
JAN 2004 Mostly equatorial vantage point
JAN 2005 Mostly polar
36
(No Transcript)
37
PAD AND VANTAGE POINTS60-119 keV hydrogen ENA
EQUATORIAL VANTAGE POINT Dst-54 nT
POLAR VANTAGE POINT Dst-71 nT
Note a factor of 2 stronger flux for equatorial
vantage point?Anisotropy2.
38
MULTI POINT OBSERVATIONPRE-LAUNCH STUDIES

• Simulate DSP ENA images with instrumental
  response
• Apply and improve APL inversion technique on
  simulated DSP images and observed HENA images.
  Individually and as multipoint data.
• Develop intercalibration techniques by using
  e.g. Cluster/CIS data
• Important develop a method for including a
  spatially varying PAD.

39
WHAT ELSE?

• Storm-substorm relationship computing DENA
  (equivalent Dst through DSP-relation)
• Plasmasheet studies during substorms
• O and substorms
• Upper bounds on ENAs from the heliospheric
  termination shock much weaker than expected.
• Characterization of storm ring current to improve
  Tsyganenko magnetic field model.

40
CONCLUSIONS
REPRINTS AVAILABLE

• sd-www.jhuapl.edu/IMAGE
