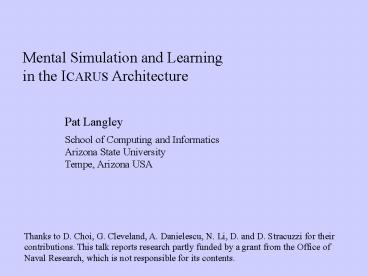

Mental Simulation and Learning in the ICARUS
Architecture
Pat Langley School of Computing and
Informatics Arizona State University Tempe,
Arizona USA
Thanks to D. Choi, G. Cleveland, A. Danielescu,
N. Li, D. and D. Stracuzzi for their
contributions. This talk reports research partly
funded by a grant from the Office of Naval
Research, which is not responsible for its
contents.
2
Cognitive Architectures

• A cognitive architecture (Newell, 1990) is the
  infrastructure for an intelligent system that is
  constant across domains

• the memories that store domain-specific content
• the systems representation and organization of
  knowledge
• the mechanisms that use this knowledge in
  performance
• the processes that learn this knowledge from
  experience

An architecture typically comes with a
programming language that eases construction of
knowledge-based systems. Research in this area
incorporates many ideas from psychology about the
nature of human thinking.
3
The ICARUS Architecture
ICARUS (Langley, 2006) is a computational theory
of the human cognitive architecture that posits

• Short-term memories are distinct from long-term
  stores
• Memories contain modular elements cast as
  symbolic structures
• Long-term structures are accessed through pattern
  matching
• Cognition occurs in retrieval/selection/action
  cycles
• Learning involves monotonic addition of elements
  to memory
• Learning is incremental and interleaved with
  performance

It shares these assumptions with other cognitive
architectures like Soar (Laird et al., 1987) and
ACT-R (Anderson, 1993).
4
Goals for ICARUS

• Our main objectives in developing ICARUS are to
  produce

• a computational theory of higher-level cognition
  in humans
• that is qualitatively consistent with results
  from psychology
• that exhibits as many distinct cognitive
  functions as possible

Although quantitative fits to specific results
are desirable, they can distract from achieving
broad theoretical coverage.
5
Distinctive Features of ICARUS
However, ICARUS also makes assumptions that
distinguish it from these architectures

• Cognition is grounded in perception and action
• Categories and skills are separate cognitive
  entities
• Short-term elements are instances of long-term
  structures
• Skills and concepts are organized in a
  hierarchical manner
• Inference and execution are more basic than
  problem solving

Some of these tenets also appear in Bonasso et
al.s (2003) 3T, Freeds (1998) APEX, and Sun et
al.s (2001) CLARION.
6
Cascaded Integration in ICARUS
Like other unified cognitive architectures,
ICARUS incorporates a number of distinct modules.

learning
problem solving
skill execution
conceptual inference
ICARUS adopts a cascaded approach to integration
in which lower-level modules produce results for
higher-level ones.
7
Structure and Use of Conceptual Memory
ICARUS organizes conceptual memory in a
hierarchical manner.
Conceptual inference occurs from the bottom up,
starting from percepts to produce high-level
beliefs about the current state.
8
ICARUS Concepts for In-City Driving
((in-rightmost-lane ?self ?clane) percepts
( (self ?self) (segment ?seg) (line ?clane
segment ?seg)) relations ((driving-well-in-segme
nt ?self ?seg ?clane) (last-lane ?clane) (not
(lane-to-right ?clane ?anylane)))) ((driving-well
-in-segment ?self ?seg ?lane) percepts ((self
?self) (segment ?seg) (line ?lane segment ?seg))
relations ((in-segment ?self ?seg) (in-lane
?self ?lane) (aligned-with-lane-in-segment ?self
?seg ?lane) (centered-in-lane ?self ?seg
?lane) (steering-wheel-straight
?self))) ((in-lane ?self ?lane) percepts
( (self ?self segment ?seg) (line ?lane segment
?seg dist ?dist)) tests ( (gt ?dist -10)
(lt ?dist 0)))
9
Representing Short-Term Beliefs/Goals
(current-street me A) (current-segment me
g550) (lane-to-right g599 g601) (first-lane
g599) (last-lane g599) (last-lane
g601) (at-speed-for-u-turn me) (slow-for-right-tur
n me) (steering-wheel-not-straight
me) (centered-in-lane me g550 g599) (in-lane me
g599) (in-segment me g550) (on-right-side-in-segme
nt me) (intersection-behind g550
g522) (building-on-left g288) (building-on-left
g425) (building-on-left g427) (building-on-left
g429) (building-on-left g431) (building-on-left
g433) (building-on-right g287) (building-on-right
g279) (increasing-direction me) (buildings-on-righ
t g287 g279)
10
Skill Execution in ICARUS
Skill execution occurs from the top down,
starting from goals to find applicable paths
through the skill hierarchy.
This process repeats on each cycle to produce
goal-directed but reactive behavior, biased
toward continuing initiated skills.
11
ICARUS Skills for In-City Driving
((in-rightmost-lane ?self ?line) percepts
((self ?self) (line ?line)) start
((last-lane ?line)) subgoals ((driving-well-in-s
egment ?self ?seg ?line))) ((driving-well-in-seg
ment ?self ?seg ?line) percepts ((segment
?seg) (line ?line) (self ?self)) start
((steering-wheel-straight ?self)) subgoals
((in-segment ?self ?seg) (centered-in-lane ?self
?seg ?line) (aligned-with-lane-in-segment ?self
?seg ?line) (steering-wheel-straight
?self))) ((in-segment ?self ?endsg) percepts
((self ?self speed ?speed) (intersection ?int
cross ?cross) (segment ?endsg street ?cross
angle ?angle)) start ((in-intersection-fo
r-right-turn ?self ?int)) actions ((?steer
1)))
12
Execution and Problem Solving in ICARUS
Skill Hierarchy
Problem
Reactive Execution
?
no
impasse?
Primitive Skills
Executed plan
yes
Problem Solving
Problem solving involves means-ends analysis that
chains backward over skills and concept
definitions, executing skills whenever they
become applicable.
13
ICARUS Learns Skills from Problem Solving
Problem
Reactive Execution
?
no
impasse?
Primitive Skills
Executed plan
yes
Problem Solving
Skill Learning
14
Learning from Problem Solutions
ICARUS incorporates a mechanism for learning new
skills that

• operates whenever problem solving overcomes an
  impasse
• incorporates only information available from the
  goal stack
• generalizes beyond the specific objects concerned
• depends on whether chaining involved skills or
  concepts
• supports cumulative learning and within-problem
  transfer

This skill creation process is fully interleaved
with means-ends analysis and execution. Learned
skills carry out forward execution in the
environment rather than backward chaining in the
mind.
15
ICARUS Summary
ICARUS is a unified theory of the cognitive
architecture that

• includes hierarchical memories for concepts and
  skills
• interleaves conceptual inference with reactive
  execution
• resorts to problem solving when it lacks routine
  skills
• learns such skills from successful resolution of
  impasses.

We have developed ICARUS agents for a variety of
simulated physical environments, including urban
driving. However, it has a number of limitations
that we must address to improve its coverage of
human intelligence.
16
Limitations of ICARUS Learning Abilities
ICARUS provides a plausible account for learning
hierarchical skills from successful problem
solving. Recent work (Li et al., in press) has
adapted this mechanism to learn from worked-out
problem solutions by

• storing states that arise in each step of the
  given solution
• using means-ends analysis to explain why each
  step occurred
• acquiring a new skill for each subproblem
  explained this way

However, ICARUS cannot learn from mistakes, such
as those that result from unexpected goal
interactions.
17
Goal-Driven Execution A Recipe for Disaster
ICARUS incorporates a goal memory that contains a
prioritized set of top-level goals. On each
cycle, the architecture notes the most important
goal not satisfied by its current beliefs.

• This goal determines which path through the skill
  hierarchy ICARUS selects for execution.
• As a result, the system ignores already satisfied
  goals while working on this objective.

However, unforseen interactions among goals can
produce undesirable outomes.

• For instance, suddenly changing lanes to avoid a
  stalled vehicle can lead to collision with
  another one.

18
Learning from Goal Violations
An extended ICARUS that learns from unforseen
events might

• Encounter a situation in which pursuing goal A
  leads it to violate previously satisfied goal B.

• Use counterfactual reasoning to identify what it
  could have done differently to avoid the error.
• Analyze the alternative to acquire a specialzed
  skill indexed by goals A and B.
• In future runs, prefer the specialized skill
  during execution, leading it to avoid the error.

Implementing this approach requires three basic
extensions to the ICARUS architecture.
19
An Episodic Belief Memory
Before it can analyze the reasons why an error
occurred, ICARUS must encode its previous
experience. We have introduced an episodic
belief memory (Stracuzzi et al., in press) that

• retains all beliefs inferred on earlier cognitive
  cycles and
• annotates beliefs with time stamps specifying
  when they held.

These let the architecture reconstruct states
that the agent has encountered recently. The
current implementation has no mechanisms for
forgetting or retrieval, but we plan to add these
in the future.
20
Learning from Counterfactual Reasoning
Before it can learn what it should have done
differently, ICARUS must identify an alternative
behavioral trajectory. We have developed a
counterfactual reasoning capability that

• works backward from the violated goal to consider
  the agents choices at each step
• carries out repeated forward search to find a
  path that would have avoided the goal violation
  and
• analyzes this path to create a new skill that
  takes both goals into account.

Because analysis starts with the conjoined goal,
it produces a new skill with a specialized head
and preconditions.
21
A Trace of Counterfactual Reasoning
avoid-obstacles
on-left-side
lane-aligned-straight
crossing-into-left- lane-straight
crossing-into -left-lane
throttle- special- value
crossing- into-left- lane
crossing- into-left- lane
wheels- straight
on-left- side
on-right- side
failed attempt
failed attempt
successful attempt
crossing- into-right- lane
crossing- into-right- lane
wheels- straight
on-right- side
22
A Specificity Bias for Skill Execution
For ICARUS to benefit from skills learned by its
counterfactual reasoning, it must prefer them
over ones that caused errors. We have altered
the architectures execution module to prefer

• skills with more specific heads that match
  top-level goals
• skills with more specific conditions that match
  the state

These lead ICARUS to mask skills indexed by
single goals with ones that handle goal
interactions. This in turn lets the system
improve its ability to avoid errors in an
incremental, cumulative manner.
23
Related Work on Error-Driven Learning
Our approach to learning from execution errors
differs from, but bears similarities to

• Learning search-control rules by discrimination
  in SAGE (Langley, 1985)
• Analytical learning from failure in Soar (Laird
  et al., 1986) and Prodigy (Minton, 1988)
• Ohlssons (1996) theory of learning from
  constraint violations
• Mueller and Dyers (1985) model of learning by
  daydreaming

The latter comes closest to our use of
counterfactual reasoning, but it was not cast
within a unified cognitive architecture.
24
Research Plans Reasoning about Others
We designed ICARUS to model intelligent behavior
in embodied agents, but our work to date has
treated them in isolation.

• The framework can deal with other independent
  agents, but only by viewing them as other objects
  in the environment.

Yet people can reason more deeply about the goals
and actions of others, then use their inferences
to make decisions.
Adding this capability to ICARUS will require
extending its representation, performance
processes, and learning methods.
25
An Extended Representation
For ICARUS to reason about other agents mental
states, it must first represent and store them.
We plan to introduce modal predicates like
belief, goal, and intention to modify inferences
like

• (goal me (in-left-lane me segment16))
• (belief me (goal driver2 (in-right-lane driver2
  segment16)))
• (belief me (belief driver2 (in-right-lane me
  segment16)))
• (goal me (belief driver2 (goal me (in-left-lane
  me segment16))))

This scheme eliminates the need for separate goal
and belief memories, so a single working
meomory will suffice. We can also include time
stamps with each substructure to indicate its
temporal scope.
26
A Flexible Inference Mechanism
The current ICARUS inference process is both
deductive and exhaustive, making it implausible
and ineffective. The revised architecture will
carry out hill climbing through a space of
possible worlds (truth assignments on ground
literals). Each step will involve changing an
existing literals truth value or generating an
entirely new literal.

• ICARUS will guide its inferential choices either
  by posterior probabilities or by expected values.

• The system will also take into account recency of
  elements matched by consequents or antecedents.

This approach is influenced by Polyscheme, Markov
logic, and theories of spreading activation.
27
Default Reasoning and Revisions
Given basic inference rules, these changes should
let ICARUS make abductive leaps about others
mental states. The agents initial statements
about others beliefs will be the same as those
for the agent. But additional information can
lead the system to revise these assumptions
nonmonotically when needed.

• E.g., we assume that others can see what we see,
  then alter these beliefs if we note evidence
  otherwise.

This explains why making inferences about others
often takes extra time and effort.
28
Learning to Reason about Others
Reasoning about others comes more easily to the
experienced than to children and novices. We can
explain this with a mechanism that learns
inference rules from empirical regularities among
beliefs by

• Generating new structures based on co-occurrences
  of literals in working memory and
• Updating probabilities associated with
  antecedents and rules based on later
  co-occurrences.

When these specialized rules drive inference,
they mask more basic ones, reducing the need for
later revisions. This causes more direct
inferences about others mental states, thus
reaching conclusions with less time and effort.
29
Summary of Planned Research
To provide ICARUS with the capability to reason
about others mental states, we plan to

• Extend its representation to support embedded
  modal literals
• Alter inference to hill climb through possible
  worlds guided by recencies and probabilities
• Combine default reasoning about others with
  nonmonotonic revision when appropriate and
• Acquire specialized inference rules from
  experience to reduce the need for such belief
  revision.

We will implement these extensions to ICARUS and
test them in urban driving and other settings.
30
End of Presentation
