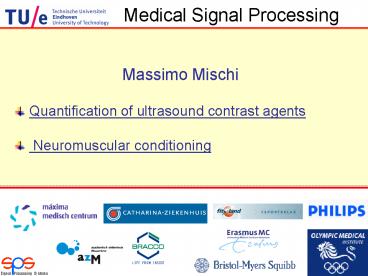

Medical Signal Processing

1
Medical Signal Processing

• Massimo Mischi
• Quantification of ultrasound contrast agents
• Neuromuscular conditioning

2
Ultrasound Contrast Agents (UCA)

• UCA are microbubbles with a diameter from 0.1 to
  10 ?m.
• They are made of an inert gas enclosed in a
  phospholipidic, albumin, or polymer shell.
• When invested by US, they scatter energy with a
  nonlinear behavior.

Electron microscopy 13500?
3
UCA quantification
Nonlinear behavior of contrast agents
linear behavior of tissue
Nonlinear contrast imaging techniques
4
UCA quantification
Requirement Linear or known relationship between
measured acoustic intensity and UCA concentration.
5
Unexpected artifact
Fundamental (linear) imaging
Harmonic (nonlinear) imaging
6
Nonlinear US distortion
1st hypothesis effects of nonlinear propagation.
Increasing distance from source
7
Forward scattering model
It is more complex than expected

• Forward scattering model
• Derived from dynamic bubble behavior using the
  modified RPNNP1 equation
• Combined with the non-homogeneous wave equation

de Jong (1993)
Zabolotskaya Soluyan Sov Phys Acoust, 1973
1 Rayleigh-Plesset Noltingk Neppiras and Porisky
8
Implementation

• Forward scattering model
• Finite difference in time domain
• Combined with the modified
• RPNNP equation for the bubble
• radius dynamics

9
Measurement setup
Latex tube with saline-UCA dilution
Acoustic absorber (sponge)
Water filled basin
A/D converter PC
Pulse generator RF Amplifier
Focal zone transmitter (7.1cm)
Transmitting single element US transducer
(Panametrics, 2.25MHz)
Receiving hydrophone/ Amplifier (Onda HGL-0400/
Onda AH-2010-025)
10
Measurement setup

• Transmission of 16-cicle sine-wave pulses (0.5 to
  and 3.5 MHz)
• Low pressure (MI 0.1)
• Definity concentrations 0-300 µL/L
• Sampling frequency 100 MHz

11
Results
12
Results
13
Neuromuscular conditioning
Dedicated Lab (room PT 5.32) for prototyping and
measurements

• Applications
• Sports,
• Rehabilitation,
• Prevention of injuries
  or diseases,
• Esthetics.

14
Prototyping
15
Prototyping
16
Expected advantages

• Strong reduction of effort and risks
• Lower joint stress and damage
• Additional benefits
• increase of

• Neuromuscular control and muscle co-activation
• Bone density
• Oxygen glucose uptake

17
sEMG measurement

• Isometric contraction of
• - biceps (arm flexion )
• - triceps (arm extension)
• 2 pairs of differential electrodes on biceps
  brachii and triceps muscles.
• Isometric contractions (flexion extension) of
  10 s at 20, 40, 60, 80, and 100 of MVC.
• With and without 28-Hz force modulation (FM).

18
Motion artifact suppression
Removal of motion-artifact harmonics from the
frequency spectrum with adjustable filters.
19
Results (hyperactivation)
M. Mischi and M. Cardinale, Medicine Science in
Sports Exercise, in press.

Triceps normalized activation



Biceps normalized activation
plt0.05
20
Results (co-activation)
M. Mischi and M. Cardinale, Medicine Science in
Sports Exercise, in press.
Arm extension biceps/triceps activation
Arm flexion triceps/biceps activation


plt0.05
21
Ultimate goal
Dynamic feedback control
control unit
actuator
body
Input setting
sensors
signal processing
22
Further sEMG signal analysis
Motor Unit Action Potential (MUAP)
23
Future developments

• Multi channel analysis (ICA, PCA, etc.)
• Mechanomyography (MGM)
• Oxygen saturation measurements

TMSi System (64-128 channels for high density EMG)
24
Traineeship / graduation publications

• C. Rabotti, M. Mischi, M. Gamba, M. Vinken, G.S.
  Oei, and J.W.M. Bergmans, Identification of the
  electrohysterographic volume conductor by
  high-density electrodes, 4th European Congress
  for Medical and Biomedical Engineering, Antwerp,
  Belgium, Nov. 23-27, 2008, pp. 235-238.
• J.J.F.A.H. Grootens, M. Mischi, M.Böhmer, H.H.M.
  Korsten, R.M. Aarts, Modeling of ultrasound
  propagation through contrast agents, 4th
  European Congress for Medical and Biomedical
  Engineering, Antwerp, Belgium, Nov. 23-27, 2008,
  pp. 440-443.
• M. Mischi and I. Kaashoek, Electromyographic
  hyperactivation of skeletal muscles by
  time-modulated mechanical stimulation, IEEE-EMBS
  Proc. on the 29th Annual International
  Conference, Lyon, Aug. 23-26, 2007, pp.
  5373-5376.
• B. Hermens, M. Mischi, M. Böhmer, R.M. Aarts,
  H.H.M. Korsten, Nonlinear propagation of
  ultrasound through varying contrast-agent concentr
  ations, 2nd IEEE/EMBS Benelux Symposium, Heeze,
  Dec. 6-7, 2007, pp. 42-45.
• C. Rabotti, M. Mischi, J.O.E.H. van Laar, P.
  Aelen, S.G. Oei, and J.W.M. Bergmans,
  Relationship between electrohysterogram and
  internal uterine pressure a preliminary study,
  IEEE-EMBS Proc. on the 28th Annual International
  Conference, New York, Aug. 30 - Sep. 3, 2006, pp.
  1661-1664.
• P. Aelen, C. Rabotti, M. Mischi, B. de Vries,
  J.O.E.H. van Laar, S.G. Oei, and J.W.M. Bergmans,
  Electrohysterographic estimation of intra
  uterine pressure, IEEE SPS DARTS Symposium,
  Antwerp, Mar. 28-29, 2006.
• E.C.A. van Drunen and M. Mischi, Novel device
  for dynamic force modulation in muscular
  training, 1st IEEE/EMBS Benelux Symposium,
  Brussels, Dec. 7-8, 2006, pp. 271-274.
• M. Sieben, M. Mischi, H.C.M. van den Bosch, and
  H.H.M. Korsten, Fully automated left ventricle
  segmentation method for local synchronicity
  quantification, IEEE SPS DARTS Symposium,
  Antwerp, Mar. 28-29, 2006.
• M. Mischi, A.H.M. Jansen, R.P.J. de Waard, H.H.M.
  Korsten, Contrast Ultrasound Methods for
  Left-Ventricle Ejection Fraction Measurements,
  IEEE-EMBS Proc. on the 27th Annual International
  Conference, Shanghai, Sep.1-4., 2005, pp.
  4306-4309.

25

• More information

http//www.sps.ele.tue.nl
