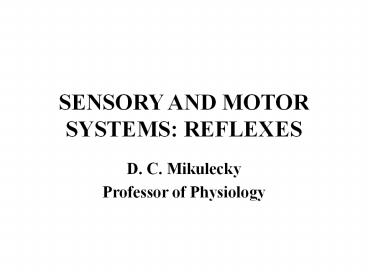

SENSORY AND MOTOR SYSTEMS: REFLEXES

1
SENSORY AND MOTOR SYSTEMS REFLEXES

• D. C. Mikulecky
• Professor of Physiology

2
ADEQUATE STIMULUS

• A SPECIFIC STIMULUS UNIQUE TO A SENSORY RECEPTOR
• FOR EXAMPLE, PHOTORECEPTORS IN THE EYE RESPOND
  ONLY TO ELECTROMAGNETIC RADIATION

3
TYPES OF ENERGY TRANSDUCED
4
GRADED VS ALL OR NONE

• A RECEPTORS RESPONSE TO A STIMULUS IS GRADED
• IF THRESHOLD IS EXCEEDED, THE ACTION POTENTIAL
  RESULTING IS ALL OR NONE

5
SENSORY TRANSDUCTION
ADEQUATE STIMULUS
MEMBRANE CONDUCTANCE CHANGE
GENERATOR POTENTIAL
ACTION POTENTIAL
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
EXAMPLE THE PACINIAN CORPUSCLE

• PRESSURE RECEPTOR
• PRESSURE DISTORTS THE CAPSULE, STRETCHING THE
  CELL MEMBRANE
• SODIUM CHANNELS OPEN, DEPOLARIZING THE MEMBRANE
• IF BEYOND THRESHOLD, ACTION POTENTIAL RESULTS

10
(No Transcript)
11
HOW IS THE INTENSITY OF THE STIMULUS ENCODED?

• FREQUENCY CODING
• POPULATION CODING

12
FREQUENCY CODING
LIGHT PRESSURE
LOW FREQUENCY
MORE PRESSURE
HIGHER FREQUENCY
13
POPULATION CODING
LIGHT PRESSURE
MORE PRESSURE
14
THE LABELED LINE CODE OF STIMULUS QUALITY
NEOCORTEX
LIMBIC CORTEX
NOSE
SMELL
THALAMUS
EYE
VISION
TASTE
TONGUE
BRAIN STEM
EAR
AUDITION
SKIN
SOMATIC
SPINAL CORD
15
LOCALIZATION, DISTRIBUTION, AND ACUITY

• CODING OF LOCATION DEPENDS ON RECEPTOR LOCATION
• AREA COVERED BY RECEPTORS IN A SENSORY UNIT IS A
  RECEPTIVE FIELD
• ACUITY DEPENDS ON THE DENSITY OF RECEPTORS

16
(No Transcript)
17
GENERAL FEATURES OF THE MOTOR SYSTEM

• HIERARCHICAL ORGANIZATION
• VS
• PARALLEL ORGANIZATION

18
HIERARCHICAL ORGANIZATION
MOTOR CORTEX

CEREBELLUM AND BASAL GANGLIA
BRAIN STEM
SPINAL CORD
SKELETAL MUSCLE
19
PARALLEL ORGANIZATION
MOTOR CORTEX
BRAIN STEM

SPINAL CORD
SKELETAL MUSCLE
20
THE MOTOR UNIT

• A SINGLE MOTOR NEURON AND ALL THE MUSCLES IT
  INNERVATES
• THE FUNCTIONAL UNIT OF THE MOTOR SYSTEM
• CORRESPONDS TO THE SENSORY UNIT/RECEPTIVE FIELD
  RELATIONSHIP
• SIZE OF MOTOR UNIT DETERMINES FINENESS OF MOTOR
  RESPOSE

21
THE MOTOR RESPONSE SYSTEM SPINAL LEVEL

• THE ORGANIZATION OF MOTOR NERVES IN THE SPINAL
  COLUMN
• THE ROLE OF INTERNEURONS
• THE ROLE OF LOCOMOTOR GENERATORS

22
THE ORGANIZATION OF MOTOR NERVES IN THE SPINAL
COLUMN

• DORSAL AREA OF VENTRAL HORN FLEXOR MOVEMENTS
• VENTRAL AREA OF VENTRAL HORN EXTENSOR MOVEMENTS
• DORSOLATERAL AREA OF VENTRAL HORN INNERVATE
  EXTREMITIES
• VENTROMEDIAL REGION AXIAL MUSCLES TO MAINTAIN
  POSTURE

23
LOCATION OF CELL BODIES FOR EXTENSORS AND FLEXORS
FLEXORS

EXTENSORS
24
THE ROLE OF INTERNEURONS

• LOCATED IN THE INTER MEDIATE ZONE OF THE SPINAL
  CORD
• LATERAL SIDE NEURONS SYNAPSE IPSILATERALLY (TO
  DISTAL LIMB MUSCLES)
• MIDLINE NEURONS SYNAPSE BOTH SIDES (MUSCLES FOR
  POSTURE) ALPHA MOTOR NEURONSEXCITE SYNERGISTIC
  AND INHIBIT ANTAGONISTIC

25
THE ROLE OF LOCOMOTOR GENERATORS

• RHYTHMIC ACTION OF ALTERANATING FLEXION AND
  EXTENSION INVOVED IN WALKING MOVEMENTS (CHICKEN
  WITH ITS HEAD CUT OFF)
• SPINAL TRANSECTED ANIMALS CAN WALK ON TREADMILL
• UNDER CONTROL OF LOCOMOTOR COMMAND CENTER IN THE
  BRAIN STEM

26
SENSORY FIBERS IN THE MUSCLE

• THE MUSCLE SPINDLE AS LENGTH DETECTOR
• GOGLI TENDON ORGANS TENSION RECEPTORS

27
THE MUSCLE SPINDLE AS LENGTH DETECTOR(SENSORY
FIBERS)

• TYPE Ia NERVE FIBERS TRANSMIT INFORMATION ABOUT
  LENGTH AND VELOCITY TO THE CNS
• TYPE II NERVE FIBERSTRANSMIT INFORMATION ABOUT
  MUSCLE LENGTH TO CNS

28
TWO TYPES OF INTRAFUSAL FIBERS
TYPE IA SENSORY FIBER
TYPE II SENSORY FIBER
NUCLEAR CHAIN FIBER
NUCLEAR BAG FIBER
29
TWO TYPES OF MOTOR NEURON

• ALPHA MOTOR NEURON INNERVATES EXTRAFUSAL FIBER
• GAMMA MOTOR NEURON INNERVATES INTRAFUSAL FIBERS

30
STRETCHING AN INTRAFUSAL FIBER SENDS SIGNALS TO
CNS
31
THE ROLE OF GAMMA MOTOR NEURONS IN REGULATING
MUSCLE SPINDLE RESPONSE
STIMULATE
RECORD
RECORD
Afferent Activity
Muscle Force
32
THE ROLE OF GAMMA MOTOR NEURONS IN REGULATING
MUSCLE SPINDLE RESPONSE
RECORD
RECORD
STIMULATE
Afferent Activity
Muscle Force
33
GOGLI TENDON ORGANS TENSION RECEPTORS

• IN SERIES WITH EXTRAFUSAL FIBERS
• TRANSMITS INFORMATION ABOUT FORCE OR TENSION TO
  CNS
• FREQUENCCY CODING

34
SPINAL REFLEXES

• THE STRETCH REFLEX
• THE INVERSE MYOTACTIC REFLEX
• THE FLEXOR WITHDRAWAL REFLEX

35
THE STRETCH REFLEX (KNEE JERK REFLEX)

• TAP PATELLAR TENDON BELOW KNEE
• SENSORY SIGNALS FROM MUSCLE SPINDLE INDICATE
  FLEXION OF LEG
• FLEXOR IS INHIBITED
• EXTENSOR ACTIVATED
• LEG EXTENDS

36
KNEE JERK REFLEX
EXTENSOR ACTIVATED
SENSORY NEURON FROM MUSCLE SPINDLE
DETECTS STRETCH
SPINAL CORD
FLEXOR INHIBITED
37
INVERSE MYOTACTIC REFLEX
ARM EXTENDS
BICEPS SYNERGYSTIC MUSCLE RELAXEDEXTENSOR
CONTRACTED
WEIGHT RELEASED
38
THE FLEXOR WITHDRAWAL REFLEX

• PAINFUL STIMULUS DETECTED
• IPSILATERAL EXTENSORS INHIBITED
• IPSILATERAL EXTENSORS EXCITED
• LIMB IS WITHDRAWN
• IF INVOLVING ONE FOOT WHILE STANDING,
  CONTRALATERAL SIDE EXTENSORS ACTIVATED AND
  FLEXORS INHIBITED TO SUPPORT GREATER WEIGHT

39
FLEXOR WITHDRAWAL REFLEX
SENSORY SIGNAL TO SPINE
STEPON TACK
VIA INTERNEURONS
IPSILATERAL EXTENSORS INHIBITED IPSILATERAL
FLEXORS CONTRACT-LEG LIFTS CONTRALATERAL
EXTENSORS CONTRACT CONTRALATERAL FLEXORS
INHIBITED- MAINTAIN BALANCE AND SUPPORT WEIGHT
