Integration Wrapup Indexing and Sorting

1

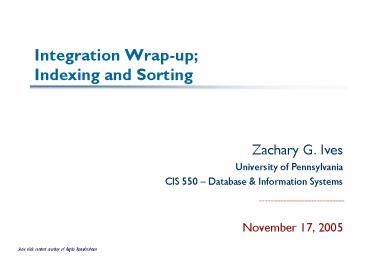

Integration Wrap-upIndexing and Sorting

• Zachary G. Ives
• University of Pennsylvania
• CIS 550 Database Information Systems
• November 17, 2005

Some slide content courtesy of Raghu Ramakrishnan
2
Reminders

• You should have a good understanding of how you
  will be using the database in your project
• How inverted indices (word -gt document tables)
  will be useful in answering queries
• How you will manage user IDs and preferences
• Etc.
• Homework 5 due on Tuesday

3
An Alternate Integration ApproachThe
Information Manifold (Levy et al.)

• When you integrate something, you have some
  conceptual model of the integrated domain
• Define that as a basic frame of reference,
  everything else as a view over it
• Local as View
• May have overlapping/incomplete sources
• Define each source as the subset of a query over
  the mediated schema
• We can use selection or join predicates to
  specify that a source contains a range of values
• ComputerBooks() ? Books(Title, , Subj), Subj
  Computers

4
The Local-as-View Model

• The basic model is the following
• Local sources are views over the mediated
  schema
• Sources have the data mediated schema is
  virtual
• Sources may not have all the data from the domain
  open-world assumption
• The system must use the sources (views) to answer
  queries over the mediated schema

5
Query Answering

• Assumption conjunctive queries, set semantics
• Suppose we have a mediated schema author(aID,
  isbn, year), book(isbn, title, publisher)
• Suppose we have the query
• q(a, t) - author(a, i, _), book(i, t, p)
• and sources
• s1(a,t) ? author(a, i, _), book(i, t, p), t
  123
• s5(a, t, p) ? author(a, i, _), book(i,t), p
  SAMS
• We want to compose the query with the source
  mappings but theyre in the wrong direction!
• Yet everything in s1, s5 is an answer to the
  query!

6
Answering Queries Using Views

• Numerous recently-developed algorithms for these
• Inverse rules Duschka et al.
• Bucket algorithm Levy et al.
• MiniCon Pottinger Halevy
• Also related chase and backchase Popa,
  Tannen, Deutsch
• Requires conjunctive queries

7
Summary of Data Integration

• Local-as-view integration has replaced
  global-as-view as the standard
• More robust way of defining mediated schemas and
  sources
• Mediated schema is clearly defined, less likely
  to change
• Sources can be more accurately described
• Methods exist for query reformulation, including
  inverse rules
• Integration requires standardization on a single
  schema
• Can be hard to get consensus
• Today we have peer-to-peer data integration,
  e.g., Piazza Halevy et al., Orchestra Ives et
  al., Hyperion Miller et al.
• Some other aspects of integration were addressed
  in related papers
• Overlap between sources coverage of data at
  sources
• Semi-automated creation of mappings and wrappers
• Data integration capabilities in commercial
  products BEAs Liquid Data, IBMs WebSphere
  Information Integrator, numerous packages from
  middleware companies

8
Performance What Governs It?

• Speed of the machine of course!
• But also many software-controlled factors that we
  must understand
• Caching and buffer management
• How the data is stored physical layout,
  partitioning
• Auxiliary structures indices
• Locking and concurrency control (well talk about
  this later)
• Different algorithms for operations query
  execution
• Different orderings for execution query
  optimization
• Reuse of materialized views, merging of query
  subexpressions answering queries using views
  multi-query optimization

9
Our General Emphasis

• Goal cover basic principles that are applied
  throughout database system design
• Use the appropriate strategy in the appropriate
  place
• Every (reasonable) algorithm is good somewhere
• And a corollary database people reinvent a lot
  of things and add minor tweaks

10
Storing Tuples in Pages
t1

• Tuples
• Many possible layouts
• Dynamic vs. fixed lengths
• Ptrs, lengths vs. slots
• Tuples grow down, directories grow up
• Identity and relocation
• Objects and XML are harder
• Horizontal, path, vertical partitioning
• Generally no algorithmic way of deciding
• Generally want to leave some space for insertions

t2
t3
11
Alternatives for Organizing Files

• Many alternatives, each ideal for some situation,
  and poor for others
• Heap files for full file scans or frequent
  updates
• Data unordered
• Write new data at end
• Sorted Files if retrieved in sort order or want
  range
• Need external sort or an index to keep sorted
• Hashed Files if selection on equality
• Collection of buckets with primary overflow
  pages
• Hashing function over search key attributes

12
Model for Analyzing Access Costs

• We ignore CPU costs, for simplicity
• p(T) The number of data pages in table T
• r(T) Number of records in table T
• D (Average) time to read or write disk page
• Measuring number of page I/Os ignores gains of
  pre-fetching blocks of pages thus, I/O cost is
  only approximated.
• Average-case analysis based on several
  simplistic assumptions.

• Good enough to show the overall trends!

13
Approximate Cost of Operations

No overflow buckets, 80 page occupancy

• Several assumptions underlie these (rough)
  estimates!

14
Speeding Operations over Data

• Recall that were interested in how to get good
  performance in answering queries
• The first consideration is how the data is made
  accessible to the DBMS
• We saw different arrangements of the tablesHeap
  (unsorted) files, sorted files, and hashed files
• Today we look further at 3 core concepts that are
  used to efficiently support sort- and hash-based
  access to data
• Indexing
• Sorting
• Hashing

15
Technique I Indexing

• An index on a file speeds up selections on the
  search key attributes for the index (trade space
  for speed).
• Any subset of the fields of a relation can be the
  search key for an index on the relation.
• Search key is not the same as key (minimal set of
  fields that uniquely identify a record in a
  relation).
• An index contains a collection of data entries,
  and supports efficient retrieval of all data
  entries k with a given key value k.
• Generally the entries of an index are some form
  of node in a tree but should the index contain
  the data, or pointers to the data?

16
Alternatives for Data Entry k in Index

• Three alternatives for where to put the data
• Data record wherever key value k appears
• Clustered ? fast lookup
• Index is large only 1 can exist
• ltk, rid of data record with search key value kgt,
  OR
• ltk, list of rids of data records with search key
  kgt
• Can have secondary indices
• Smaller index may mean faster lookup
• Often not clustered ? more expensive to use
• Choice of alternative for data entries is
  orthogonal to the indexing technique used to
  locate data entries with a given key value k

rid row id, conceptually a pointer
17
Classes of Indices

• Primary vs. secondary primary has the primary
  key
• Most DBMSs automatically generate a primary index
  when you define a primary key
• Clustered vs. unclustered order of records and
  index are approximately the same
• Alternative 1 implies clustered, but not
  vice-versa
• A file can be clustered on at most one search key
• Dense vs. Sparse dense has index entry per data
  value sparse may skip some
• Alternative 1 always leads to dense index Why?
• Every sparse index is clustered!
• Sparse indexes are smaller however, some useful
  optimizations are based on dense indexes

18
Clustered vs. Unclustered Index

• Suppose Index Alternative (2) used, with pointers
  to records stored in a heap file
• Perhaps initially sort data file, leave some gaps
• Inserts may require overflow pages
• Consider how these strategies affect disk caching
  and access

Index entries
UNCLUSTERED
CLUSTERED
direct search for
data entries
Data entries
Data entries
(Index File)
(Data file)
Data Records
Data Records
19
B Tree The DB Worlds Favorite Index

• Insert/delete at log F N cost
• (F fanout, N leaf pages)
• Keep tree height-balanced
• Minimum 50 occupancy (except for root).
• Each node contains d lt m lt 2d entries. d is
  called the order of the tree.
• Supports equality and range searches efficiently.

Index Entries
(Direct search)
Data Entries
("Sequence set")
20
Example B Tree

• Search begins at root, and key comparisons direct
  it to a leaf.
• Search for 5, 15, all data entries gt 24 ...

Root
30
17
24
13
39
3
5
19
20
22
24
27
38
2
7
14
16
29
33
34

• Based on the search for 15, we know it is not
  in the tree!

21
B Trees in Practice

• Typical order 100. Typical fill-factor 67.
• average fanout 133
• Typical capacities
• Height 4 1334 312,900,700 records
• Height 3 1333 2,352,637 records
• Can often hold top levels of tree in buffer pool
• Level 1 1 page 8 KB
• Level 2 133 pages 1 MB
• Level 3 17,689 pages 133 MB
• Level 4 2,352,637 pages 18 GB
• Nearly O(1) access time to data for equality
  or range queries!

22
Inserting Data into a B Tree

• Find correct leaf L.
• Put data entry onto L.
• If L has enough space, done!
• Else, must split L (into L and a new node L2)
• Redistribute entries evenly, copy up middle key.
• Insert index entry pointing to L2 into parent of
  L.
• This can happen recursively
• To split index node, redistribute entries evenly,
  but push up middle key. (Contrast with leaf
  splits.)
• Splits grow tree root split increases height.

• Tree growth gets wider or one level taller at
  top.

23
Inserting 8 Example Copy up
Root
24
30
17
13
39
3
5
19
20
22
24
27
38
2
7
14
16
29
33
34
Want to insert here no room, so split copy up
8
Entry to be inserted in parent node.
(Note that 5 is copied up and
5
continues to appear in the leaf.)
3
5
2
7
8
24
Inserting 8 Example Push up
Need to split node push up
Root
24
30
17
13
5
39
3
19
20
22
24
27
38
2
14
16
29
33
34
5
7
8
Entry to be inserted in parent node.
(Note that 17 is pushed up and only appears once
in the index. Contrast this with a leaf split.)
17
5
24
30
13
25
Deleting Data from a B Tree

• Start at root, find leaf L where entry belongs.
• Remove the entry.
• If L is at least half-full, done!
• If L has only d-1 entries,
• Try to re-distribute, borrowing from sibling
  (adjacent node with same parent as L).
• If re-distribution fails, merge L and sibling.
• If merge occurred, must delete entry (pointing to
  L or sibling) from parent of L.
• Merge could propagate to root, decreasing height.

26
B Tree Summary

• B tree and other indices ideal for range
  searches, good for equality searches.
• Inserts/deletes leave tree height-balanced logF
  N cost.
• High fanout (F) means depth rarely more than 3 or
  4.
• Almost always better than maintaining a sorted
  file.
• Typically, 67 occupancy on average.
• Note Order (d) concept replaced by physical
  space criterion in practice (at least
  half-full).
• Records may be variable sized
• Index pages typically hold more entries than
  leaves

27
There are Many Other Kinds of Indices

• Other value indices
• Bitmap indices (a bit indicates a value)
• Multidimensional indices
• R-trees, kD-trees,
• Text indices
• Inverted indices (as youre defining in your
  project)
• Structural indices
• Object indices access support relations, path
  indices
• XML and graph indices dataguides, 1-indices,
  d(k) indices
• These describe connectivity between nodes or
  objects

28
Speeding Operations over Data

• Three general data organization techniques
• Indexing
• Sorting
• Hashing

29
Technique II Sorting

• Pass 1 Read a page, sort it, write it
• Can use a single page to do this!
• Pass 2, 3, , etc.
• Requires a minimum of 3 pages

INPUT 1
OUTPUT
INPUT 2
Disk
Disk
Main memory buffers
30
Two-Way External Merge Sort

• Divide and conquer sort into subfiles and merge
• Each pass we read write every page
• If N pages in the file, we need dlog2(N)e 1
• passes to sort the data, yielding a cost of
• 2Ndlog2(N)e 1

Input file
3,4
6,2
9,4
8,7
5,6
3,1
2
PASS 0
1-page runs
1,3
2
3,4
5,6
2,6
4,9
7,8
PASS 1
4,7
1,3
2,3
2-page runs
8,9
5,6
2
4,6
PASS 2
2,3
4,4
1,2
4-page runs
6,7
3,5
6
8,9
PASS 3
1,2
2,3
3,4
8-page runs
4,5
6,6
7,8
9
31
General External Merge Sort

• How can we utilize more than 3 buffer pages?

• To sort a file with N pages using B buffer pages
• Pass 0 use B buffer pages. Produce dN / Be
  sorted runs of B pages each
• Pass 2, , etc. merge B-1 runs

INPUT 1
. . .
. . .
INPUT 2
. . .
OUTPUT
INPUT B-1
Disk
Disk
B Main memory buffers
32
Cost of External Merge Sort

• Number of passes 1dlogB-1 dN / Bee
• Cost 2N ( of passes)
• With 5 buffer pages, to sort 108 page file
• Pass 0 d108/5e 22 sorted runs of 5 pages each
  (last run is only 3 pages)
• Pass 1 d22/4e 6 sorted runs of 20 pages each
  (final run only uses 8 pages)
• Pass 2 d6/4e 2 sorted runs, 80 pages and 28
  pages
• Pass 3 Sorted file of 108 pages

33
Speeding Operations over Data

• Three general data organization techniques
• Indexing
• Sorting
• Hashing

34
Technique 3 Hashing

• A familiar idea, which we just saw for hash
  files
• Requires good hash function (may depend on
  data)
• Distribute data across buckets
• Often multiple items in same bucket (buckets
  might overflow)
• Hash indices can be built along the same lines as
  what we discussed
• The difference they may be unclustered as well
  as clustered
• Types
• Static
• Extendible (requires directory to buckets can
  split)
• Linear (two levels, rotate through split bad
  with skew)
• We wont get into detail because of time, but see
  text

35
Making Use of the Data IndicesQuery Execution

• Query plans exec strategies
• Basic principles
• Standard relational operators
• Querying XML
