Title: SESSION 2.4 Experience Feedback


1

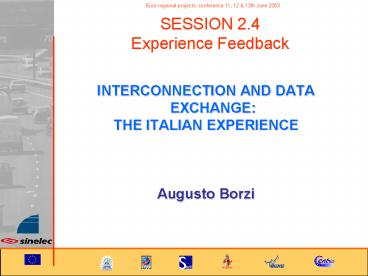

SESSION 2.4 Experience Feedback
  • INTERCONNECTION AND DATA EXCHANGE
  • THE ITALIAN EXPERIENCE
  •
  • Augusto Borzi

2
PRESENTATION TITLE
History
Italian situation
European Network of traffic centres
Testing phase
Real implementations
CCISS - Problems and perspectives
Conclusions
3
History
Interconnection Data exchange the Italian
experience
  • In 1997 within the European Project Hannibal was
    introduced the use of the DATEX-Net protocol as
    interconnection with different Traffic Control
    Centres.
  • For this purpose Sinelec developed the first
    version of RETICA (REte Telematica di
    Interscambio tra Concessionarie Autostradali) to
    exchange traffic and travel data.
  • RETICA is based on DATEX-Net protocol and, at
    present, it is used in few Traffic Control
    Centres belonging to ASTM-TLC and SIAS.
  • The interconnection is realised at Italian and
    European level.

History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
4
Italian sites interconnected to ASTM-TLC
Interconnection Data exchange the Italian
experience
1 ASTM TLC Torino 2 ASTM Rondissone
(TO) 3 Autocamionale della Cisa Parma 4
SATAP Villanova dAsti (AT) 5 SAV Chatillon
(AO) 6 SALT Lido di Camaiore (MS) 7
Autostrada dei Fiori (IM) 8 SITAF
Salbertrand (TO) 9 SITRASB Traforo
S.Bernardo 10 ATIVA
History
Italian Situation
European TICs Network
Testing phase
Real implementations
Conclusions
5
Venice-Padua motorway DATEX connections
Interconnection Data exchange the Italian
experience
History
A Datex connection between Autostrada VE-PD TCC
(Venice) and SUS (Servizi Utenza
Stradale-Cessalto) TIC is in operation since
2000. Real time information on traffic events
that could take place along the Autostrada VE-PD
motorway network is provided to the users by SUS
TIC via various different media. Datex
connections between Autostrade VE-PD TCC (Venice)
and other motorway operator TCCs are under
development. The first link will be activated by
September 2003. Traffic data will be exchanged
mainly to support the every day motorway
operation.
Italian Situation
European TICs Network
Testing phase
Real implementations
Conclusions
6
Venice-Padua motorway DATEX connections
Interconnection Data exchange the Italian
experience
  • A VPN (Virtual Private Network) connects the
    various TCCs and Emegency Services Control
    Centers in the Venice area in order to share
    information (traffic data, videosurveillance,
    fleet management, etc.) in efficient and
    coordinated way.
  • A specific SW tools support the operators in the
    incident management process.

History
Italian Situation
European TICs Network
Testing phase
Real implementations
Conclusions
7
Italian TICs
Interconnection Data exchange the Italian
experience
History
The three Italian Traffic Information Centres
uses DATEX to exchange information.
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
8
DATEX nodes and connections in SERTI Area
Interconnection Data exchange the Italian
experience
History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
At European level within Serti, Arts and Centrico
Projects, has been created a connection among
DATEX nodes to Bordeaux at Cètè.
9
DATEX nodes situation
Interconnection Data exchange the Italian
experience
History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
10
Status of data exchange
Interconnection Data exchange the Italian
experience
History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
11
DATEX message tests
Interconnection Data exchange the Italian
experience
History
  • Two levels of tests
  • Test each segment its syntax and content.
  • Test some scenarios real messages sent in one
    day compared with the one received by the
    partners through the DATEX connection on the same
    day.

Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
12
Problems encounterd in the test phase
Interconnection Data exchange the Italian
experience
  • It was found a problem in the attribute PHC
    (Cause) it was inserted in an incorrect segment
    within Retica

History
Italian Situation
UNA.? ' UNBUNOC3ITSINfrcn1030519100800010
2' UNH1TRAVIN1497BDX' BGM1100096420030518
07302811' DTMINP200305181730P02303' DTMSTA2
00305181729P02303' DTMMST200305190808P02303' G
ISARI1' GISENDY' GISBROY' LOCLOC1815
2501Svincolo di ALESSANDRIA EST1816Intercon
nessione con ALLAC. A7 MILANO-GENOVAN' NADMSE
IT422SATAP 'RFFLTV1' RFFVNM2' STSDOBLOS'
STSPHRLS2' STSPHCRWK' UNT161' UNZ1000102'
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
13
Interconnection for data exchange using the
DATEX-Net protocol
Interconnection Data exchange the Italian
experience
History
  • To safely exchange traffic and travel data among
    ASTM-TLC and its client it has been proposed to
    use a Virtual Private Network (VPN).
  • This technology enables different partners to be
    connected to the same private network.

Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
14
Web Portal
Interconnection Data exchange the Italian
experience
History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
15
Infonodo Torino
Interconnection Data exchange the Italian
experience
System Architecture
History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
16
Information
Interconnection Data exchange the Italian
experience
ASTM-TLC gives detailed information regarding the
regional area
CCISS gives national synthesis
History
Italian Situation
European TICs Network
Testing phase
Real implementations
Conclusions
17
Filters
Interconnection Data exchange the Italian
experience
History
On event On location On field of interest
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
18
CCISS - Problems and perspectives
Interconnection Data exchange the Italian
experience
  • CCISS is the Italian Public Center responsible
    for collecting and distributing traffic
    information on national basis. It is coordinated
    by the Italian Ministry of Transport.
  • Police, Road Authorities, Automobile Club, RAI
    (as public broadcasting system) and Motorway
    Companies, operate all together inside this
    Center.
  • Some problems have been registered for the
    RDS-TMC functionality and for the data exchange
    at european level, due to the obsolescence of the
    central informatic system.

History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
19
CCISS - Problems and perspectives
Interconnection Data exchange the Italian
experience
  • The Italian Ministry of Transport has recently
    decided to launch the second phase of
    infomobility, consisting in a new generation of
    traffic information services based on criteria of
    interactivity, localisation and personalisation.
  • These new services will be coordinated by the
    Ministry in terms of general guidelines, common
    protocols and standards to be adopted.
  • The first decision to be taken was the complete
    reorganization of the CCISS information system.
    It will allow the management of both the existing
    and the new services mainly focussed on RDS-TMC
    and data exchange with European TICS.

History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
20
CCISS - The new information system SINT
Interconnection Data exchange the Italian
experience
  • SINT will
  • be an open system, capable to be interconnected
    with other realities, mainly with other TICS.
  • adopt the DATEX protocol in a native way.
  • work with a multimedia Data Base, georeferencied
    and enriched by graphic 3D images of virtual
    reality.
  • produce automatic video and audio bullettins in
    many European languages.
  • continuously send traffic information to RDS-TMC.
  • automatically exchange data with the European
    TICs network.
  • elaborate statistics on traffic problems.
  • be implemented starting from September 2003 up to
    June 2004.

History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
21

Interconnection Data exchange the Italian
experience
The Multimedia SINT DB



Different Input Formats
History
Connections
News
Cameras
Italian Situation
Sensors
Telephone
European TICs Network
Testing phase
MULTIMEDIA DATABASE
Real implementations
CCISS Problems perspectives
Conclusions
European TIC Network
Internet
Teletext
RDS TMC
Telephone
TV
Radio
Different Output Formats
22
The Multimedia SINT system
Interconnection Data exchange the Italian
experience
History
Italian Situation
European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
23
Conclusions
Interconnection Data exchange the Italian
experience
History
Italian Situation
  • Solve the problem with the RETICA software
    according to the tests already done.
  • Start the travel and traffic data exchange at
    European level.

European TICs Network
Testing phase
Real implementations
CCISS Problems perspectives
Conclusions
24
  • Description of the presentation
  • In this presentation is described the evolution
    from the past of the Data exchange using Datex.
  • It is possible to identify three levels
  • inside ASTM-TLC (SIAS) group
  • at Italian level
  • at European level.
  • In the last few years it has started the
    cooperation between European countries to
    exchange travel and traffic information.
  • At the present the data exchange is about to be
    operational. The testing phase it is almost
    finished. In the presentation are shown the main
    problems encountered.
  • Here are also reported a couple of ASTM/TLC real
    application based on DATEX
  • The Web portal
  • infonodo Torino (a system that gives traffic
    information along ASTM, SATAP, SITAF and ATIVA
    motorwas)
Write a Comment
User Comments (0)
About PowerShow.com
