Topic 7. Gamma Camera I

1

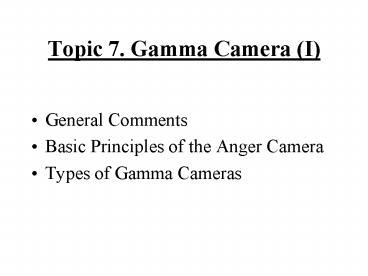

Topic 7. Gamma Camera (I)

• General Comments
• Basic Principles of the Anger Camera
• Types of Gamma Cameras

2
General Comments

• Why ? rays? (penetrating through the body, easily
  stopped by lead, ß emission or Auger electrons
  can not get out of body)
• Why NaI(Tl) detector (reasonable compromise
  between efficiency and cost etc. )
• Historically, ? ray imaging started from matrix
  detectors of late 40s to rectilinear scanner, and
  to the Anger scintillation camera of late 50s
  which is the most used today.

3
Basic Principles of the Anger Camera

• System Components
• Detector System and Electronics
• Collimators
• Event Detection in Gamma Cameras

4
System Components

• Collimator
• NaI(Tl) crystal
• Light Guide (optical coupling)
• PM-Tube array
• Pre-amplifier
• Position logic circuits (differentialaddition
  etc.)
• Amplifier (gain control etc)
• Pulse height analyzer
• Display (Cathode Ray Tube etc).

5
(No Transcript)
6
NaI(Tl) Crystal Assembly
7
Detector System and Electronics(1)

• Typical detector in Anger camera NaI(Tl) crystal
  with 1.25cm thick x 30-50 cm in diameter (thinner
  for low energies, 6mm)
• Thinner crystal is preferred for Anger camera in
  order to get better intrinsic resolution
  therefore better image (sacrifice intrinsic
  efficiency)

8
Detector System and Electronics(2)

• Optical coupling materials (silicon fluid,
  grease, or lucite light pipes) are placed between
  the NaI(Tl) crystal and the array of
  photomultiplier tubes --called light guide or
  pipe
• Array of PM tubes (37,61,75 or 91, round,
  hexagonal or square shapes) arranged in hexagonal
  pattern

9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Detector System and Electronics(3)

• Part of the signal processing circuitry
  (preamplifier, pulse height analyzers, amplifier,
  pulse pile-up rejection etc.) is attached to each
  PM tube and sealed in a light-tight protective
  housing

13
Position Circuitry(1)

• The photomultiplier tubes are divided into
  horizontal halves to obtain X and X- signals and
  vertical halves to obtain Y and Y- signals.
• Four summing matrix circuits are used to sum up
  for x,x-,y and y- signals from each TM tubes
  where each of these signals is the product of
  signal amplitude and position factor.
• A separate summing circuit is used to sum up a
  total signal Z from all PM tubes (signal
  amplitude only, no position factor)

14
(No Transcript)
15
Light Sharing Between PM Tubes
16
Position Circuitry(2)

• The radiation position is then determined by
  Xk(X-X-)/Z and Yk(Y-Y-)/Z where k is a scale
  constant, Z is the total signal amplitude and
  proportional to the incoming radiation energy.
• The positional signals X and Y must be normalised
  by total signal Z because X and Y themselves
  depend on the both signal and positional factors
  (different radiation energy gives different
  signal amplitude at the same position)

17
PM Tubes and Signal Positions
18
PMT Energy Window Correction
19
Pulse Height Displays

• Pulse height analyzer is used to analyse the Z
  signal and if accepted, signal will be displayed
  on the monitor (CRT etc.) at the position
  determined by X and Y.
• Two kind of display modes can be used to display
  the energy spectrum, namely, Z pulse display and
  multi-channel analyzer display.

20
(No Transcript)
21
Collimators

• Absorptive collimation is used for most ? ray
  image formation (inefficient method for
  utilisation of radiation)
• Four basic collimator types are used with Anger
  camera and similar camera-type imaging device
  pinhole, parallel hole, diverging and converging
  collimators.

22
Parallel-Hole Collimator
23
(No Transcript)
24
Pinhole Collimator(1)

• A cone shape lead with a small pinhole of a few
  millimeter in diameter, about 20-25 cm from the
  pinhole aperture to the detector.
• The image is inverted and could be magnified or
  minified depend on the object position I/Of/b
  where I and O are image and object sizes
  respectively, f is the distance between the
  pinhole and the detector, b is the distance
  between the object and the pinhole.

25
Pinhole Collimator(2)

• The size of the imaged area changes with the
  distance between the object and the collimator b
  DD/(I/O) where D is the diameter of the
  detector and D is the images area.
• Image size changes with the distance between the
  object and the collimator b, therefore, image is
  distorted in 3 dimension.

26
Parallel Hole Collimator

• Parallel holes are drilled or cast in lead
• Sept is the walls between holes and its thickness
  is chosen to prevent ? rays from crossing from
  one hole to the next.
• Image is the same size as the source distribution
  to the detector.
• Slant-hole collimator is a titled parallel holes
  collimator.

27
Diverging Collimator

• Diverging from the collimator face towards the
  object.
• The converging point is about 40-50cm behind from
  the collimator.
• Image is minified I/O(f-t)/(fb) where f is the
  distance between the front of the collimator and
  the converging point, t is the thickness of the
  collimator and b is the distance between the
  object and the front of the collimator.
• Useful image area becomes larger as the image
  becomes more minified. Image size depends on the
  object distance b (image has distortion).
• Useful for small detector to image large organ.

28
Converging Collimator

• Holes converge to a point in front of the
  collimator (about 40-50 cm from the collimator)
• Images are magnified non-inverted if the
  objects are placed between the converging point
  and the collimator surface I/O(ft)/(ft-b).
  (image distortion due to b dependence)
• Images are inverted magnified if the objects
  are placed between the converging point and twice
  the convergence length and an inverted minified
  image beyond that distance (not often used).
• Useful for using large detector to image small
  organs

29
Parallel vs Converging Collimators
30
Gamma Camera Detection Events
31
Image Display and Recording Systems(1)

• Persistence CRT displays light spots that do not
  fade immediately
• Non-persistence CRT display images for film
  decording
• Polaroid film is convenient in use but expensive.
  It is a positive type and has limited range of
  optical densities (limit both contrasts and
  latitude, the useful exposure range)
• Transparency film is a negative film type (darker
  for greater exposure) and has better contrasts
  and latitude than Polaroid film

32
(No Transcript)
33
Image Display and Recording Systems(2)

• Polaroid cameras often have three separate
  lenses, with different lens aperture opening, to
  provide three deferent densities on a single film
  simultaneously.
• Laser film printers are now replacing the old
  film making practice in nuclear medicine.

34
Stationary or Mobile

• Anger camera can be sued for static or dynamic
  imaging
• Stationary cameras are designed to be at a fixed
  location while mobile camera has wheels.

35
(No Transcript)
36
Types of Gamma Camera
37
Types of Gamma Camera
38
Types of Gamma Camera
39
Scanning Camera

• Scanning Anger cameras are used for whole body
  imaging
• Either detector or patient support table may be
  set to move
• Diverging collimator may be used to cover entire
  width of the patients body.
• Whole body images can be printed on a single film.

40
Whole Body Bone Scan
41
Dynamic Sequence of Planar Images
42
(No Transcript)
