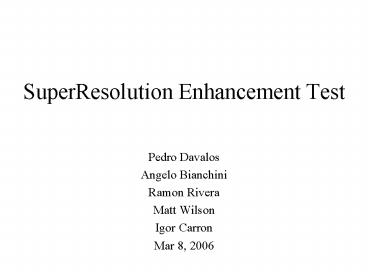

SuperResolution Enhancement Test

1
SuperResolution Enhancement Test

• Pedro Davalos
• Angelo Bianchini
• Ramon Rivera
• Matt Wilson
• Igor Carron
• Mar 8, 2006

2
Specifications

• Hardware
• Canon 20D Camera
• Canon EF 600mm f/4.0L IS USM Lens
• Canon EF 1.4x II Extender
• Tripod Dynatran AT-818
• Image Settings
• 20 Input Images, SS 1/1000, f/8.0, ISO 100
• Effective Focal Length 840mm
• Test Settings
• Test Time March 7, 2006 440 pm 442 pm
• KCLL 072253Z 14017KT 10SM BKN036 BKN065 26/17
  A2997 RMK AO2 SLP145 T02560172
• Winds 20mph, cloudy, Temp 78 F
• Camera was indoors with the garage door open
• Distance Away from OM Building 3.08 miles
  (16,240 ft)
• Enhancer Settings
• UCSC-MDSP Iterative Norm One

3
Test Setup
STC
3.08 mi
OM
4
Test Setup
OM Building
Canon EF 50mm f/1.4 USM Lens
11am, SS 1/800, f/5.6, iso 100
5
Full Frame
6
Original (Cropped)
7
Input Video
8
Enhanced Output
2000x2000 pixels
9
Enhanced Output Cropped
10
Comparison
Original 36x36
5x Enhanced 180 x 180
11
Conclusion

• Jitters proved to be important.
• Current UCSC-MSDP software is not able to handle
  jitters
• Other superresolution imagery algorithm
  (Vorontsov) will be implemented.
• In either algorithm, we may need to solve the
  jitter issue first through processing (optic
  flow) and then attempts both superresolution
  algorithms.
• Jitter issue may also have to be addressed at the
  hardware level (Inertial information, heavy
  base,.)
