Thermox Stack at 371 meters Unburned Hydrocarbons

1

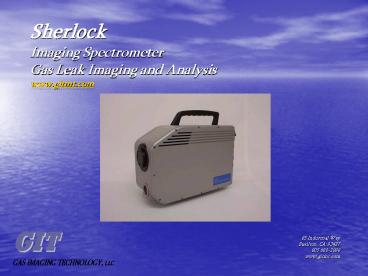

Sherlock Imaging Spectrometer Gas Leak Imaging
and Analysis www.gitint.com

2
Unlike Competition Sherlock Contains All
Components in Single Instrument
Data Logger
Computer
Infrared Camera
FTIR Spectrometer
Competition Doesnt Have These Combined
Capabilities
3
IMSS Fundamental Concept
4
Sherlock - IMSS Hyper-spectral Data Cube

• Typical IMSS Hyper-spectral Data Cube is
  Collected in a Band Sequential Mode With Each n x
  n image Corresponding to a Frame of Data.
• Modulation of the Lens Focal Length Distance
  Tunes the Wavelength of Interest.

5
Spectral Image of Stack Emissions
Quantification
Sherlock Image of Stack
Sherlock Image of Sulfur Stack Plume
6
Flare Analysis
