Adaptive Information Retrieval

1

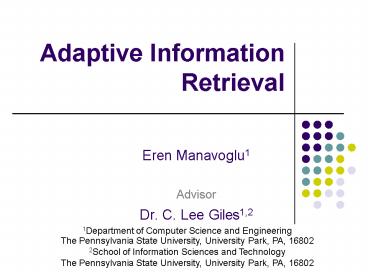

Adaptive Information Retrieval

• Eren Manavoglu1
• Advisor
• Dr. C. Lee Giles1,2

• 1Department of Computer Science and Engineering
• The Pennsylvania State University, University
  Park, PA, 16802
• 2School of Information Sciences and Technology
• The Pennsylvania State University, University
  Park, PA, 16802

2
Information Retrieval over the Web Today

• Main tools Search engines
• User input query terms/questions
• Result presentation ranked list of matching
  documents
• Ranking algorithm a combination of topical
  relevancy, citations and document popularity
  (probably)

3
Why Do We Need Adaptive Information Retrieval?

• Different users use the same query to access
  different information.
• Jaguar animal or automobile?
• Even the same user may have different information
  needs at different points in time about the same
  topic.
• Dick Cheney Scooter scandal last month, Hunting
  accident today.

4
Adaptive Information Retrieval Techniques

• Personalization
• Personalization on server side Relies on
  explicit user input mainly (MyYahoo, Personalized
  Google) and the parameters of the ranking
  algorithm is personalized
• Personalization on client side Uses both
  implicit and explicit user feedback. The user
  model is usually in the form of interest
  profile(s)
• Recommender Systems
• Will be discussed in more detail later
• Clustering search results
• Will be discussed in more detail later

A survey can be found in Manavoglu, Giles,
Sping, Wang, The Power of One - Gaining Business
Value from Personalization Technologies, Chapter
9
5
What this Proposal is about

• Learn the user behavior models to capture
  individual differences
• Group the documents at query time to capture the
  current state of available information sources
• Use the user model to highlight or recommend
  groups of documents of interest to him/her

6
Work Done So Far

• Recommender Systems
• User Behavior Modeling
• Clustering Search Results

7
Recommender Systems

• Goal To automate the word-of-mouth
  recommendations within a community.
• Approaches
• Content-based filtering Recommendations are done
  solely based on the content of the items (e.g.
  topic, author, etc.)
• Collaborative filtering Similar users are
  identified based on the items they view and then
  the items viewed by like-minded users are
  recommended to a given user Resnick 94
• Hybrid Both content of the items and the
  similarity of the users are used in making
  recommendations Shani 2005

8
Recommender Systems -A Probablistic Approach

• Represent the data as a collection of ordered
  sequences of document requests
• Assume that we are given a dataset consisting of
  ordered sequences in some fixed alphabet. The
  elements of the alphabet are documents.
• For each document define its history H as a
  so-far observed subsequence of the current
  sequence
• Our goal is to predict the next document Dnext
  given the history H
• Learn a probabilistic model P(Dnext H, Data)

9
Recommender Systems - Probabilistic Models

• A mixture model based approach could be taken for
  learning the probabilistic model P(Dnext H,
  Data)
• Nc is the number of components, P(Dnext
  H,Data,k) is the component model
• Component distribution, P(Dnext H,Data,k),
  should make use of the sequence information and
  the learning should be scalable
• Mixture of multinomials, mixture of markov models

10
Proposed Recommendation Model - Maximum Entropy
(maxent)

• Maximum entropy provides a framework to combine
  information from different knowledge sources.
• Each knowledge source imposes a set of
  constraints.
• Intersection of all constraints contains a set of
  probability functions.
• Maximum entropy principle chooses the one with
  the highest entropy, i.e. most flat function.
• Advantage of maxent approach
• Combine 1st-order Markov model features and long
  term dependencies among the data.

11
Representation for Long Term Dependence - Triggers

• Long term dependence of Dnext on H is represented
  with triggers.
• The pair of actions (a,b) is a trigger iff
• is substantially different from P(Dnextb).
• Triggers are pairs with high mutual information
  scores.

12
Maximum Entropy Model Definition

• Maximum entropy objective function leads to the
  following model

• Fs(D,H) are the feature indicator functions. S is
  the total number of bigramstriggers for document
  D
• s are maxent model parameters for component k
• If s corresponds to bigram (a,b) then Fs(D,H)1
  iff Da and Dprevb, and Fs(D,H)0 otherwise
• Z?,k(H) is a normalization constant

13
Maximum Entropy Model -A Complication and its
Solution

• Maxent computation is expensive if the number of
  items is large. On a dataset of 500K items it
  could take months
• This problem can be solved if the items are
  clustered before applying the maxent model
• We employed a user navigation based clustering
  algorithm using this simple idea documents that
  are requested consecutively are related
• Compute the document bigrams
• Apply greedy clustering using the bigram counts

Details of the algorithm can be found in
Pavlov, Manavoglu, Giles, Pennock, Giles 2004
14
Experimental Evaluation

• Competing Models
• Maxent
• 1st Order Markov model
• Mixture of Markov models (30-components)
• Mixture of Multinomial (60-components, with the
  similarity based CiteSeer predictors as its
  feature set)
• Correlation
• Individual CiteSeer similarity-based predictors
• CiteSeer merged-similarity-based predictor
• We call ResearchIndex Merge the recommender that
  is obtained by pulling all similarity-based
  recommenders togetheressentially, this
  corresponds to the currently available
  recommending system in CiteSeer.

15
Current Recommendation Algorithms in CiteSeer

• Similarity recommenders
• Content-based text or citation similarity
• Sentence Similarity, Text Similarity, Active
  Bibliography, Cited By, Co-citations, Cites
• Collaborative user similarity
• Users Who Viewed
• Based on source similarity
• On Same Site

For detailed information on CiteSeer
recommenders please see Lawrence, Giles,
Bollacker, 1999.
16
Experimental Setup

• Conducted on 6 months worth of CiteSeer data in
  the form of lt time, user, request gt
• Chronologically partitioned the data into 5
  million training and 1.7 million test requests
• Document requests were aggregated by userID and
  sessionized. An inactivity time of 300 seconds
  was used to break the requests into sessions
• Robots were identified and eliminated based on
  the number of requests submitted
• Documents that appeared less than 3 times were
  discarded (250,000 documents remained)

17
Evaluation Metrics

• Hit ratio the ratio of correct predictions to
  the total number of predictions made
• Average height of prediction Predictions are a
  list of ranked actions, where the ranking is done
  by ordering the actions by their probability
  values, thus average height of prediction is the
  average height of the hit within this list
• First N predictions in the list are considered
  and the performance is evaluated based on the
  success of these N predictions, for N1,,5,10
  (called bins hereafter)

18
Results

• Among the individual CiteSeer recommenders
  Active Bibliography was the best predictor.
  However the merged predictor performed better
  than Active Bibliography hence it will represent
  the CiteSeer recommender in the remainder of the
  experiments.

19
Results
Although merged CiteSeer predictor does better
for longer recommendation lists, maxent is the
best for small number of guesses. Correlation
improves as the recommendation list gets
longer Also presented is the average height
results of the competing models. With respect to
average height maxent outperformed all the other
recommenders
20
Conclusions - Discussion

• Maxent proved to be one of the best models
  especially when the number of recommendations to
  be made was limited
• But clustering the documents is a crucial point
  for its feasibility.
• Most of the experiments done in the field of
  recommender systems have been offline
  experiments. However this could be misleading,
  the effect of the recommendation on the user
  should also be taken into account. We plan to
  setup a medium for online experiments.

21
User Behavior Models
22
Motivation

• In the previous section we focused on only the
  items users viewed. But users do much more than
  just viewing items. They browse, query, look at
  recommendations, etc.
• Can we improve user experience by looking at
  these other actions as well?
• Can we detect what the users are trying to do in
  a given session?

23
User Behavior Modeling

• What data do we have about users?
• Web logs, in clickstream format
• How can we make use of this data?
• By applying web usage mining techniques

24
Previous Work on Web Usage Mining

• Frequent item set identification by association
  rule extraction methods1
• Collaborative Filtering for recommender
  systems2,3
• Probabilistic graphical models (e.g. Bayesian
  nets) to discover and represent dependencies
  among different variables4
• Sequential pattern analysis to discover patterns
  in time-ordered sessions5

1Liu et al, Integrating Classification and
Association Rule Mining. Fourth International
Conference on Knowledge Discovery and Data
Mining, 1998 2Resnick et al, GroupLens. An open
architecture for Collaborative Filtering of
Netnews. ACM 1994 Conference on Computer
Supported Cooperative Work. 3Pavlov, Manavoglu,
Pennock, Giles, Collborative Filtering with
Maximum Entropy. IEEE Intelligent Systens
2004 4D. Heckerman, Bayesian Networks for Data
Mining. Data Mining and Knowledge Discovery
1997 5Cadez et al, Predictive Profiles for
Transaction Data Using Finite Mixture Models. TR,
UC Irvine 2001
25
Problem Definition

• We propose the following sequential framework for
  modeling user behavior.
• Each user session is represented as a sequence,
  labeled with a user ID.
• Each individual item in the sequence represents a
  user action.
• For each action, history H(U) is defined as the
  so-far observed ordered sequence of actions.
• P(AnextH(U),Data) is the behavior model for user
  U that predicts the next action Anext, given the
  history H(U).

User U, time t
User U, time t1
User U, time t2
Action At Query
Action At1 Browse
Action At2 Help
H(U) empty
H(U) At
H(U) AtAt1
26
Problem Definition

• Problem
• To infer P(Anext H(U),Data) for each individual
  given the training data.
• Method Proposed
• Mixture Models

27
Why Mixture Models?

• Mixture models can handle heterogeneous data and
  provide a clustering framework.
• Mixture models are weighted combinations of
  component models.
• Each component represents a dominant pattern in
  the data.
• A global mixture model captures the general
  patterns among users.
• A mixture model can be personalized to capture
  individual behavior patterns.

Buyer Model
Browser Model
Customer A (Frequently visits, but rarely buys)
0.2Buyer Model 0.8Browser Model
McLachlan Basford 1988, Cadez 2001
28
Mixture Models

• Global Mixture Models
• Parameters are same for all individuals. An Nc-
  component mixture model

29
Personalized Mixture Models

• Learn individual component probabilities, aU,ks
  for each user. Resulting model is therefore
  specific to each user.

• For component distribution P(AnextH(U),Data,k)
  Markov and maximum entropy distributions are used.

30
Parameter Estimation

• Learn the parameters of the global model by
  expectation-maximization (EM) algorithm.
• Fix the component distributions.
• Learn the individual component weights, aU,ks,
  for known users by EM.
• The aU,ks for users who do not appear in the
  training data will be the global aks values.

31
Visualization

• Each component of a mixture model can be viewed
  as a cluster.
• Each session is a weighted combination of these
  clusters.
• Probability of user session Su belonging to
  cluster k is

Sample Cluster

• Each session is assigned to the cluster that
  maximizes P(kSU,Data).

32
Visualization - Graphs

• If number of actions is large, viewing and
  interpreting sample sessions becomes impossible.
• Build a graph for each cluster.
• Triggers and bigrams are computed and sorted for
  each cluster
• Pairs of actions gt threshold value are used to
  build the graph
• The sequence of actions defines the direction of
  the edges

33
Experimental Setup

• CiteSeer1 log files of approximately 2 months.
• Log files are series of transactions in the form
  of lttime, action, user ID, related infogt.
• lt1014151912.455 event authorhomepage 3491213
  197248 - - ip 42779 agent Mozilla/2.0
  (compatible MSIE 3.02 Update a Windows NT)gt
• Returning users are identified by cookies.
• Actions are broken into sessions based on time
  heuristics (300 seconds of inactivity indicates
  the end of a session).
• User1 Seesion1 37 31 34 31 32
• User1 Session2 37 31 34 31 34 33 34
• User2 Session1 31 34 33 20
• User2 Session2 33 20
• Robots are identified based on the number of
  requests per session and are removed.

http//citeseer.ist.psu.edu
34
CiteSeer user actions and descriptions used
during experiments
35
Experiments

• User behavior models are evaluated based on the
  accuracy of their predictions.
• User behavior clusters are visualized to
  demonstrate the descriptive ability of the
  models.
• For maxent models the history was empirically set
  to the last 5 actions.

36
Hit Ratio Results Returning Users
Hit ratio results on known users for 3 component
mixture model

• Personalized models outperformed global models.
• Personalization significantly improved for maxent
  model.
• Personalized Markov mixture is better for
  returning users.

Hit ratio results on known users for 10 component
mixture model
37
Hit Ratio Results All Users
Hit ratio results on all users for 3 component
mixture model

• Maxent performs better than Markov for all users.
• Maxent chooses the most flat function and has
  more parameters. Mixture of Markov models can
  better fit the training data (for returning
  users).

Hit ratio results on all users for 10 component
mixture model
38
User Behavior Clusters - Maxent Model Graphs

• Cluster 4 Users Querying CiteSeer through
  another search engine
• Cluster 6 Users who use CiteSeer query interface
• Cluster 9 Users who look at recommendations and
  citations

39
Conclusions

• Both mixture of maximum entropy and Markov models
  are able to generate strong predictive models.
• Markov models are better for predicting future
  actions of returning users.
• Maximum Entropy models perform better for
  predicting the global model and first time users.
• Predicting future actions could be useful in
  recommending shortcuts and personalizing the user
  interface.
• CiteSeer users significantly differ in the way
  they use the engine.
• Mixture models can be used to discover these
  different patterns.
• Identifying the cluster a session belongs to can
  be used to recommend certain functionalities of
  CiteSeer (e.g. bibtex, recommendations, etc).

Manavoglu, Pavlov, Giles ICDM 2003
40
Navigation Graph
41
Query Behavior Analysis(Work in Progress)
42
Query Behavior Patterns - Motivation

• Goal
• To investigate how the users interact with the
  query interface
• To identify dominant patterns of querying
  behavior, which could then be used in
  recommendations
• If the user is submitting the same query over and
  over should we show the same recommendations?
• If the user is modifying the original query
  string persistently should we change the
  recommendation criteria to give more priority to
  diversity of the recommendations (because
  modifying the query could be an indication of
  unsatisfactory results/recommendations)?

43
Query Types

• Query Types
• New Query String none the terms in the query
  (excluding stop words and logical operators) were
  seen in the previous query
• Modified Query String a partially new query,
  some terms are eliminated and/or added
• Same Query String same as the most previous
  query string
• Document Query Document database is queried
• Citation Query Citation database is queried

44
Query Behavior Patterns - Methodology

• Sequential Modeling
• Sessionize log files
• Consider the queries in a session as an ordered
  sequence
• Identify the query types within each session
• Investigate the patterns for the ordered sequence
  of query types
• Algorithm
• Mixture of 1st order Markov
• Experimental Setup
• Same as the previous section

45
Query Types - Example

• Input
• ltsessionID queryEvent userID queryStringgt
• 1 documentquery uid1 online routing
• 1 documentquery uid1 online routing lipmann
• 1 documentquery uid1 lipmann
• 1 documentquery uid1 Maarten Lipmann
• 1 documentquery uid1 oltsp
• 1 citationquery uid1 oltsp
• Output
• uid1 docNew docModified docModified docModified
  docNew citeOld

46
Query Behavior - Results
47
Query Behavior Analysis - Observations

• Users tend to submit the same query more than
  once in the same session
• Only a small portion of CiteSeer users are
  submitting citation queries (15)
• CiteSeer users are trying to modify their queries
  instead of giving up
• Can query modification be viewed as an indication
  to change document recommendation or ranking
  strategy?

48
Online Clustering of Search Results
49
Online Clustering of Search Results -Motivation

• So far we looked at users behavior to improve
  user experience and retrieval quality.
• Is it also possible to organize the data
  adaptively to improve the quality of the results?
• Grouping topically related items together in the
  result page may improve coverage and diversity of
  the displayed results

50
Why Online?

• An offline clustering/classification of search
  results would not be query dependent.
• Two documents could be related for the query
  machine learning but they may not be as
  relevant for a rather more specific one machine
  learning for recommender systems.
• The time of query changes the set of available
  documents.
• A news search on hurricane query today and
  hurricane query a week ago would result in very
  different set of documents

51
Online Clustering of Search Results - Test Case

• To evaluate the performance of clustering on a
  frequently updated index (with deletions as well
  as addition of documents) we chose to work on
  News articles.
• Due to architecture of the underlying news search
  engine (Yahoo! News) the implemented solution had
  to satisfy the following conditions
• Access to 100 documents per query
• Work in a stateless/memoryless environment
• Fetch original results, cluster them and return
  the clustered results in less than 300
  milliseconds

This work was done during an internship at Yahoo!
The paper is in review for confidentiality
requirements. Please ask about the details.
52
Online Clustering of Search Results - Algorithm

• Clustering Algorithm
• Hierarchical Agglomerative Clustering, Mixture of
  Multinomials, Cluto, KNN, Kmeans were implemented
  and compared. Hierarchical Aglomerative
  Clustering (HAC) algorithm outperformed others in
  news domain.
• HAC algorithm works on the pairwise similarities
  of news articles.
• Pairwise similarity matrix is computed at the
  time of query
• The similarity of a cluster to another one is
  computed as a factor of the pairwise document
  similarities.
• Similarity metric is an approximation of cosine
  similarity measure.
• Stopping criteria is a threshold on the
  similarity of the clusters. The optimum threshold
  value is discovered with an exhaustive search on
  the hold-out dataset.

For a survey on Clustering algorithms see
Berkhin, 2002
53
Online Clustering of Search Results - Clustering
Algorithm Evaluation

• HAC clustering algorithm was evaluated against
  the aforementioned algorithms and Google News
  Clusters by an editorial review.
• 300 queries were chosen in random from that days
  user logs.
• Reviewers were shown 4 documents per cluster.
• Results of 2 different algorithms were displayed
  side by side and reviewers were asked to chose
  between the 2.
• HAC was shown to outperform the rest of the
  algorithms (the difference was statistically
  significant)

54
Online Clustering of Search Results - Naming the
Clusters

• Users may not realize how and why the documents
  were grouped together. Having names for clusters
  serving as short descriptions would help users
  process and navigate through the result set
  easier.
• Common naming approaches
• Choose the most representative article for each
  cluster and use its title as the cluster label
  (Google news search http//news.google.com)
• Find the most representative phrases within the
  documents belonging to each cluster (Clusty
  http//news.clusty.com/)

For Keyphrase Extraction see Zha, SIGIR 2002
55
Online Clustering of Search Results - Naming the
Clusters

• Observations
• News articles are usually formulated to answer
  more than one of the following questions where,
  when, who, what and how.
• Articles belonging to the same cluster may be
  sharing answers to only some of these questions.
• Goal
• We want to partition the titles into substrings
  corresponding to one (or more) of these
  questions. And then choose among these substrings
  the most common one.

56
Online Clustering of Search Results - Naming the
Clusters

• Methodology
• Use POS tags to find the boundaries between
  compact substrings.
• Break the sentence into smaller parts at these
  points and generate a candidate set composed of
  these shorter substrings and their continuous
  concatenations.
• Example
• Title Wilma forces Caribbean tourists to flee
• Substrings Wilma, Caribbean tourists, flee
• Candidates Wilma, Wilma forces Caribbean
  tourists, Caribbean tourists, Wilma forces
  Caribbean tourists to flee, flee, Caribbean
  tourists to flee
• Score the candidates based on coverage, frequency
  or length or a combination of these metrics.
• Choose the candidate with the highest score to be
  the cluster label.

57
Online Clustering of Search Results - Naming the
Clusters

• Scoring Algorithms
• Coverage Score A metric to measure how well the
  candidate covers the information in all titles.
• Frequency Score Is the frequency score for the
  full string.
• Length normalized frequency Score Candidates
  with less number of words will have more
  frequencies. To avoid this bias towards shorter
  candidates we normalize the frequency scores
  based on the number of words they include

58
Online Clustering of Search Results - Naming
Evaluation

• 160 queries were chosen at random from the daily
  query logs. The results of these queries were
  clustered and saved.
• Candidate names for each cluster were generated
  offline. Candidates included titles as well.
• 8 users were asked to either select from the list
  of candidates the best label or type in their own
  choice if they could not find an appropriate
  candidate.
• At least 3 judgments were collected per query.
• 55 of the names chosen by reviewers were titles.
• Experimental results showed that length
  normalized frequency score outperforms the others
  (60 match with user labels).
• In the case of ties, coverage scores were found
  to be the best tie-breaker.

59
Work In Progress

• Further query analysis
• What are the users searching for Titles,
  abstracts, references, publication dates, venues?
• Are the users viewing/downloading on linked
  documents, or not?
• Investigating community based adaptation
  strategies
• Designing a framework for online evaluation of
  recommender systems
• Such a platform for CiteSeer was designed by
  Cosley et al (called REFEREE) in its early days.
  Our goal is to make it scale to and be available
  in the next generation CiteSeer.

Recently published paper on discovering
E-communities Zhou, Manavoglu, Li, Giles, Zha in
WWW 2006
60
My Proposal

• MyCiteSeer
• A unified adaptive information retrieval engine
  where document, action and query behaviors are
  all factored in

61
How?

• Action Model selects the modules and shortcuts to
  be displayed
• user U is interested in only users who viewed
  document recommendations gt only this document
  recommendation module will be shown on document
  page
• Query Model and Action Model selects the query
  interface
• user U searches for titles only and looks at more
  than 20 results gt the default query field is
  title and results are clustered
• Document model selects the content with input
  from Action and Query models.
• Action and Query models act as implicit feedback

62
Evaluation?

• A user study would give the most reliable and
  comprehensive assessment of the system.
  Individual components as well as the overall
  system can be evaluated.
• Some form of implicit feedback can also be used
  for evaluation.
• Clickthrough rate on results page, number of
  actions taken to access a given document/page,
  time spent on completing certain tasks.
• If used together with some explicit user feedback
  (through random questionnaires, ratings, or
  feedback via email, blogs or forums) the
  appropriate metrics could be identified and used.
