Radar Imaging and Waveform Design

1

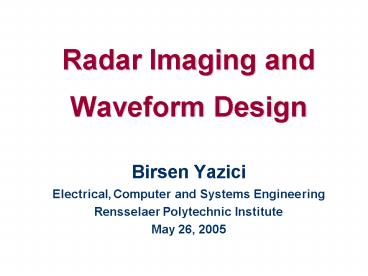

Radar Imaging and Waveform Design

• Birsen Yazici
• Electrical, Computer and Systems Engineering
• Rensselaer Polytechnic Institute
• May 26, 2005

2
Outline

• Range-Doppler imaging and adaptive diversity
  waveform design B. Yazici and G. Xie
• Synthetic aperture inversion for arbitrary flight
  path in the presence of noise and interference
  B. Yazici and M. Cheney
• Conclusions

3
Filtered Backprojection Method

• Range-Doppler imaging and waveform design based
  on simplified forward model that takes advantage
  of underlying invariant structure
• SAR imaging based on physics based forward model
  that takes into antenna beam pattern, array
  configuration, transmitted pulse, geometric
  spreading factors and flight path

4
Range-Doppler Imaging

• Ideal point target model
• Ideal extended target model

Doppler stretch
Time delay
Target reflectivity function
5
Clutter/Interference and Noise Models

• Target Object of interest
• Clutter All unwanted reflections and other
  scatterers
• Noise Thermal noise at the receiver

6
Problem Statement

• How do we recover target reflectivity function
  embedded in noise and clutter?
• What waveform(s) shall we transmit?
• To suppress noise clutter/interference
• For simultaneous estimation of target velocity
  and range

7
Approach

• View received echo from target as the Fourier
  transform of the target with respect to affine
  group evaluated at the transmitted waveform
• Fourier transform of functions defined on range
  and Doppler plans is not equal to the standard
  Fourier transforms with respect to range and
  Doppler
• Fourier transform of functions defined on
  range-Doppler plane is a matrix valued function

8
Advantages

• Address receiver and waveform design problems
  simultaneously
• Bypasses the concept of ambiguity function
• Waveform design for simultaneous estimation of
  target range and velocity
• Provides design of clutter rejecting waveforms
• Method of data fusion to synthesize high
  resolution range-Doppler images from multiple
  narrowband radars operating coherently

9
How to Estimate Target

• Send sufficient number of pulses to cover the
  spectrum of the target
• Use Fourier inversion formula for reconstruction
  Filtered back projection

10
How to Suppress Clutter/Interference

• Perform minimum mean square error filtering based
  on the spectra of target and clutter/interference
• Optimal MMSE filter spectrum
• Optimal filtering

11
Range-Doppler Image

• Implement inverse Fourier transform in different
  ways to obtain different receiver and waveform
  design algorithms
• Only need the diagonal terms for trace sum
• Alternatively use matrix elements of each
  transform

12
Algorithm 1
13
Algorithm 2
14
Numerical Simulations

• Transmit waveforms derived from Laguerre
  polynomials

Target
Clutter
15
Numerical Simulations
Wiener Filter
Difference between waveforms used in Algorithm 2
and deterministic algorithm
16
Numerical Simulations
Algorithm 2
Deterministic algorithm
Algorithm 1
Comparison of Algorithm 1, Algorithm 2 and
deterministic algorithm
17
Conclusions

• Clutter rejection can be performed either in
  transmission or reception
• Clutter rejection in transmission reduces
  receiver complexity
• In adaptive transmission, matching is NOT
  performed with respect to transmitted waveforms
• No limitation in the choice of orthogonal basis,
  but should be in the range space of the Wiener
  filter to avoid redundancy
• Algorithms applicable to MIMO scenario
• Narrowband case
• Discrete affine group

18
SAR inversion for arbitrary flight path in the
presence of noise and interference
19
Forward Model
20
Problem Statement

• Received data model
• C unwanted ground reflectivity function
• n additive noise.
• Problem determine from .

21
Noise and Interference Model

• Additive noise model Stationary in fast time,
  uncorrelated in slow time

• Target and interference model Not necessarily
  stationary

22
Image Formation

• Form image by filtered back projection

• Determined by minimizing the mean square
  error

23
How to solve for the filter?

• Apply change of variables so that when the
  forward and inverse map are composed the
  resulting operator is a pseudo differential
  operator.
• Perform stationary phase calculations to
  determine the leading order contributions to mean
  square error
• Perform variational calculations with respect to Q

24
How to solve for the filter?

• In general the filter is the solution of an
  integral equation
• If we assume that the target and interference are
  stationary then,
• Jacobian coming from the change of variables

• When filter becomes

25
Numerical Simulations
Target
Target and interference
Deterministic FBP reconstruction
Statistical FBP reconstruction
26
Numerical Simulations
Target
Statistical FBP reconstruction
Details of statistical FBP
Deterministic FBP reconstruction
Details of deterministic FBP
Target and interference
27
Numerical Simulation
28
Conclusion

• Microlocal reconstruction extended to a
  statistical setting
• Bistatic and multistatic mode of operation
• Design of flight trajectories for multistatic
  UAVs
• Design of waveforms

29
Inversion Methods

• Solving PDEs (Bellini et al. 1979)
• Filtered backprojection (Tretiak et al. 1980,
  Metz et al. 1995, Kuchment et al. 1994)
• Fourier Relation (Tretiak et al., Innouye et al.
  1989, Metz Pan, Kuchment et al.)
• Circular harmonic decomposition (Hawkins et al.
  1988)

30
Fourier Transform of the Affine Group

• Irreducible unitary representations of the affine
  group
• Fourier transform
• Fourier inversion
• Discrepancy operator
