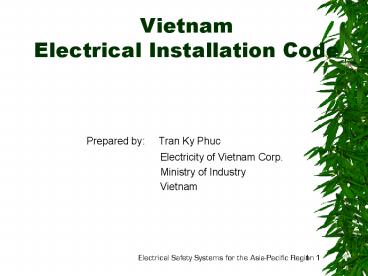

Vietnam Electrical Installation Code

1
Vietnam Electrical Installation Code

• Prepared by Tran Ky Phuc
• Electricity of Vietnam Corp.
• Ministry of Industry
• Vietnam

Electrical Safety Systems for the Asia-Pacific
Region 1
2
Electrical Installation CodeIntroduction

• Title of Code
• Electrical Installation Code National Electrical
  Code
• 11 TCN-18-84 11 TCN-19-84 11 TCN-20-84 11
  TCN-21-84.
• Date of latest version 22 Dec 1984 (18 years
  ago!- The Army Day!)
• Some other related Codes, Decree Regulations
• Safety Code for Exploitation of Power Plant and
  Network 11TCN-16-84
• Date of latest version 1984
• Decree of Government on Electricity Activities
  and Electricity Utilization
• Date of latest version 02 Aug 2001
• Lightning protection for buildings Standard for
  design and construction TCXD 461984
• Date of latest version 1984
• Electrical Safety Rules in Management, Operation,
  Maintenance, Installation of Power Lines and
  Substations
• Date of latest version 21 Oct 1999
• Organization approving and issuing the Code
  Electricity of Vietnam
• Some Standards issued by STAMEQ (TCVN-)

Electrical Safety Systems for the Asia-Pacific
Region
3
Electrical Installation Code Introduction

• Organization approving and issuing the Code
• Ministry of Electricity (now Ministry of
  Industry)
• Organization responsible for maintaining the
  Code
• Ministry of Industry Electricity of Vietnam
  Corp.
• Key contact person Tran Ky Phuc,
  phuctk_at_evn.com.vn
• Scope of application For the design and erection
  of electrical installations with voltage up to
  220kV
• Source document Based on former Soviet Union
  Electrical Installation Code (PUE
  1968-1978-1983). The Code is similar to Russian
  style.

Electrical Safety Systems for the Asia-Pacific
Region
4
Electrical Installation Code Participants

• Organizations participating in preparation of the
  Code
• Power Consulting Company
• Technical Department of Ministry of Electricity
• Power Utility N 1
• Electric Power Research Institute
• Hanoi University of Technology
• Electrical Erection Company N 1

5
Electrical Installation CodeStructure of the Code

• Structure of the Code 4 parts
• Part 1. General Provisions
• Part 2. Electrical Wiring System
• Part 3. Protection and Automation
• Part 4. Electrical Distribution Equipment and
  Substation

Electrical Safety Systems for the Asia-Pacific
Region
6
Electrical Installation CodeContent of the Code

• Part 1. General Provisions
• Chapter 1. General
• Chapter 2. Electrical Network and Supply
• Chapter 3. Selection of wire according to thermal
  regime, economical current density and by corona
  condition
• Chapter 4. Selection of wire and apparatus
  according to short circuit condition
• Chapter 5. Counting of electric energy
• Chapter 6. Electrical Measurement
• Part 2. Electrical Wiring System
• Chapter 1. Electrical wiring with voltage up to 1
  kV
• Chapter 2. Electrical cable line with voltage up
  to 110kV
• Chapter 3. Electrical overhead line with voltage
  up to 1kV
• Chapter 4. Electrical overhead line with voltage
  above 1kV

7
Electrical Installation CodeContent of the Code

• Part 3. Protection and Automation
• Chapter 1. Electrical network protection with
  voltage up to 1 kV
• Chapter 2. Relay protection
• Chapter 3. Electrical automation
• Chapter 4. Secondary circuit
• Part 4. Electrical Distribution Equipment and
  Substation
• Chapter 1. Electrical distribution equipment
  with voltage up to 1 kV
• Chapter 2. Electrical switchyard equipment and
  power substation with voltage above 1 kV
• Chapter 3. DC system

8
Electrical Installation CodeApplicability

• Is the code used by construction contractors on a
  local, regional or national basis?
• On a national basis.
• Possible alternative codes that are allowable
• No alternative codes.
• IEC60364 (Electrical installations of
  buildings), other related IEC standards IEEE 141
  Recommended Practice for Electrical Installations
  in Industrial Plants IEEE 241 Recommended
  Practice for Electrical Systems in Commercial
  Buildings are under consideration.
• Types of installations that require the use of
  the code industrial, commercial, residential,
  utility, public, private, etc.
• All types of installations must be in accord with
  the Code.
• New construction only? Or, does it also address
  maintenance?
• The Code is applied to both new construction and
  maintenance work

Electrical Safety Systems for the Asia-Pacific
Region
9
Electrical Installation CodeMaking Revisions

• How often is the Code updated?
• Formally, annually the Code must be revised. But
  in fact, during last 18 years only several small
  modifications were made.
• Is the time period fixed or variable?
• Fixed. But in fact, the Code is revised only when
  relating policy, equipment, technology are
  changed.
• The code has existed for 18 years. Now its
  necessary to modify the Code so that it will be
  in accord with real situation in power system
  development.
• The main reasons for modifying the Code are
• New electrical equipment has been introduced into
  power system
• New voltage levels have been introduced into
  power system (22kV, 500kV)
• Some safety (electrical fire protection) issues
  need to be revised

Electrical Safety Systems for the Asia-Pacific
Region
10
Electrical Installation CodeMaking Revisions

• Impact of external/international activities,
  organizations?
• We are looking for international organizations
  that can help us in revising the Code.
• How do organizations and individuals participate?
• A group of experts from different organizations
  (Consultant Companies, Universities,) formed by
  Ministry of Industry and EVN Corp. is responsible
  for preparing the Code.
• Draft of the Code will be circulated around the
  country to experts
• What organization gives final approval?
• Ministry of Industry
• What organization publishes and distributes?
• Ministry of Industry and Electricity of Vietnam
  Corp.

Electrical Safety Systems for the Asia-Pacific
Region
11
Electrical Installation CodeEnforcement

• Is it enforced in a legal process? Private or
  public sector enforcement? Uniform process
  throughout the economy?
• The scope of application of the code is
• Electric power industry
• All local organizations, individuals in Vietnam.

• Evidence of compliance-certificate issued?
• The certificate will be issued based on result of
  testing and inspection.
• What is the dispute settlement process?
• According to the signed contract. State
  management organizations in electricity
  activities are responsible for settlement
  process.

Electrical Safety Systems for the Asia-Pacific
Region
12
Electrical Installation CodeEnforcement

• What are the penalties of non-compliance?
• Shall be dealt with in accordance with the
  Governments Decree on penalizing administrative
  breaches in electricity area
• Individuals committing breaches of the Code such
  that the breach constitutes a crime shall be
  subject to criminal prosecution and liable to pay
  compensation in accordance with the laws.

13
Electrical Installation CodeExpectations for the
Future

• New code development process envisioned?
• We intend to develop these projects relating to
  national codes and standards
• Revision of the existing Electrical Installation
  Code
• Revision of the existing Safety Code for
  Exploitation of Power Plant and Electrical
  Network
• Preparations of Technical specifications and
  standards on electrical equipment, including both
  low-voltage and high-voltage levels.
• Preparations of a brand-new National Electrical
  Installation Code
• We hope to co-operate with international
  organizations, especially with NIST.

Electrical Safety Systems for the Asia-Pacific
Region
14
