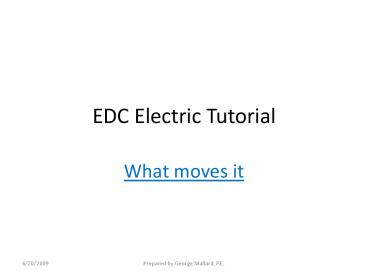

EDC Electric Tutorial

1
EDC Electric Tutorial

• What moves it

2
Soldering Safety

• Three types of burns
• Soldering Iron can inflict a really nasty burn
• Know where the tip is at all times
• Wear safety glasses
• Do not breath the fumes
• Wash your hands after handling solder

3
Soldering Basics

• Joining two pieces of metal with a metal that has
  a lower melting point
• Flux is a cleaning agent in the solder
• Clean the metal with eraser/Scotchbrite
• Joint should be mechanically secure
• Cold solder joint

4
Crimping

• Using a tool to attach a connector to wire
• Tug testing

5
3M Scotchlok
6
How to power a motor
Motor
7
How to Reverse a motor
Motor
8
Talking Switches

• Poles and Throws - DPDT
• (Momentary) Center Off
• (On) Off (On)

9
Torque
10
Equal Torque
11
Torque and Speed

• More Torque Less Speed

• More Speed Less Torque

12
Your Motor

• No Load Speed
• Stall Torque
• Speed varies with voltage
• Current varies with torque

13
Example Motor
14
How far do you need to go today?

• Measure Motor Shaft Diameter with Calipers
• How far does each rotation take you?

15
The EDC CourseNot to scale
8
Tomb
Up
1
Start
4
Seeding
16
Friction Drive

• The motor shaft drives the robot by rubbing
  against an idler wheel
• Simple and effective
• Wheel wear
• Slips

17
Gear Drive

• Positive connection with the wheels
• Does not wear the wheels
• Torque can turn corners
• Requires gears
• Requires good mechanical skills to build
• Torque can cause gears to slip / break

18
Belt Drive

• Similar to gears
• Slips if Overtorqued
• Easier to build than gear drive
• Requires Pulleys and Belts
• Belts can slip off if not properly designed

19
Where to find stuff

• Your own garage and recycle bin
• Fastenal 25275 Budde Rd [phone]
• All Electronics 888-826-5432
• Auto Parts Stores - OReilly, Auto Zone
• EPO Fondren - 3753 Fondren 713-784-0140
• ACE Electronics - 3210 Antoine Dr [phone]
• Larrys Hobbys - 156 FM 1960 Rd [phone]
• www.linguisticproducts.com community service
