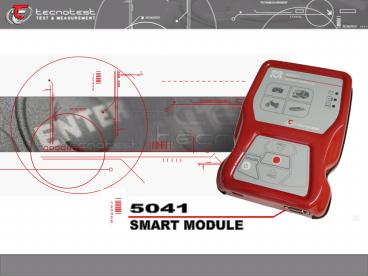

SMART MODULE

1
5041
SMART MODULE
2
Smart Module 5041 is more than an hardware
Interface. Born for any PC or Java compatible
devices, permits on-board diagnostics with all
vehicles on-board electronic systems.
3
Technical Features - Hardware
Multicolor power supply light
From internal battery
From vehicles battery
Recharging Battery mode
ECUs communication ON
PC Link ON
REC key for Flight Recorder function
ON/OFF key
4
Technical Features - Hardware
Comparing SM5041 to previouse 4041E, the concept
is totally different new Smart Module 5041 has
all the needed software ON-BOARD.
Smart Card slot (software validation)
Compact Flash slot
5
Technical Features - Hardware
Adapter
Extension cable
Main connector
Power supply from 8 to 42 Volts
6
Technical Features - Hardware
Hardware expansions slot ( for future
applications)
7
Technical Features - Hardware
Independent power supply
Battery case 4 Rechargeable batteries Type AA
NiMh
8
Technical Features - Hardware
Main units connection cable or wireless?
BT 50 Bluetooth expansion card WF 50 WI-FI
expansion card
Wi-Fi or Bluetooth expansion slot for
9
Standard PC/Main Unit Links
RS 232
USB
10
Optional PC/Main Unit Links

• WI-FI
• Bluetooth

11
Technical Features - Software
Graphic User Interface Smart Viewer
Vehicle/system selection
Standard onboard diagnostic
12
Technical Features - Software
1Step
2 Step
Diagnostic plug connection
Vehicle/system selection
An example of SM5041 linked to a PC
13
Technical Features - Software
3 Step ( Flight Recorder )
Once the function will be selected, SM5041 can be
disconnected from the main unit . Just pushing on
REC key, you can check the vehicle ON THE ROAD,
and all previously selected items will be stored
(a Compact flash memory is needed).
Test ON THE ROAD with Flight Recorderfunction
Flight Recorder KEY
14
Technical Features - Software
4 Step
Recorded data evaluation Reconnecting SM5041 (or
reading Compact flash files) to the PC, it will
be possible to check live data items and Fault
codes collected by Smart Module during the test
in Flight Recorder mode.
15
Technical Features - Software
4 Step
Data Analisys

• Indexes
• Rec Key
• Fault codes informations
• Item Range out of range indication

16
Case
17
What SM5042 can do?

• Suitable for Cars, Bikes Trucks
• Connectivity Serial or USB (cable), WI-FI or
  Bluetooth (wireless)
• Connectable to many different Operating Systems
• Temporary Data Storage ( graphics )
• ON THE ROAD tests can be easily done
• Flight Recorder function
• Fast and easy to use
• Ready for future applications

18
