AgGPS 114

1

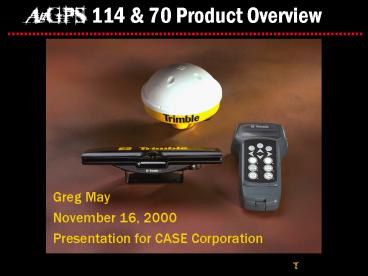

AgGPS 114 70 Product Overview

• Greg May
• November 16, 2000
• Presentation for CASE Corporation

2
AgGPS 114 DGPS Smart Antenna

• Antenna and GPS receiver in one housing
• Similar GPS technology to the AgGPS 132
• Satellite Differential Corrections
• Omnistar, Racal, WAAS
• Sub-meter accuracy
• (with Omnistar and Racal DGPS)
• High impact strength plastic
• Fully sealed
• Compatible with the AgGPS Parallel Swathing Option

3
The AgGPS 114 - Basic Connectivity

• Simple to connect
• DC power in, DGPS positions out!

4
AgRemote - A PC Control Program

• Windows application

5
Remote Display Interface AgRemote

• Allows third-party developer to easily take
  advantage of the configuration and status
  functionality similar to the current AFS
  receiver.
• Increased flexibility of where receiver
  information is displayed and how receiver is
  controlled.
• AgRemote is an example of how Remote Display
  Interface can be implemented.

6
AgGPS 114 - Product Configuration

• Standard Product Configuration
• AgGPS 114 Smart Antenna
• Magnetic Mount
• Serial Data/Power cable
• User Operating Manual
• Configuration programs

7
AgGPS 114 Product Specification

• One 12-pin AgGPS connector
• Two RS-232 serial ports
• One CAN bus (J1939) port
• Operating Temperature -30C to 60C
• Flash programmable program memory
• Input voltage Range 10 to 32 volts
• Power consumption 4 watts
• Electrical Compatibility CE, FCC Class B

8
AgGPS 114 Modular Configurations

• AgGPS 114 may be easily combined with
• AgGPS 70(Remote DataLogger or RDL)
• Parallel SwathingOption (with AgGPS 21 lightbar)

9
AgGPS 114 and RDL

• Add RDL For Control and Data Logging

10
AgGPS 114 with PSO Plus

• Add the PSO Guidance package with Data Logging

11
AgGPS 114 Product Summary

• A modular system component
• A new AgGPS DGPS receiver for SatelliteL-Band
  and WAAS
• Self contained receiver and antenna
• Compatible with
• AgGPS PSO Lightbar
• AgGPS 170 Field Computer
• AgGPS 70 Remote Display and Logger

12

AgGPS 70 Remote Display and Logger

• Log your DGPS position from your AgGPS 114 / 122
  / 124 / 132 on Compact Flash Cards
• Control your AgGPS 114 / 122 receiver in the
  field
• Control your PSO with the same button
  configuration as the PSO External Keypad button
  configuration

122 with part numbers 38073-00 Started shipping
2/99
13
AgGPS 70 RDL Product Configuration

• Standard Product Configuration
• AgGPS 70 RDL
• Cable RDL Data/Power
• 9 volt battery for BB RAM
• 8 Meg Compact Flash Card
• same as the AgGPS 170
• PCMCIA Adapter for Flash Card
• ArcExplorer CD ROM
• Manual

14
AgGPS 70 RDL Product Specification

• Two 12-pin AgGPS connectors
• Two RS-232 serial ports
• One CAN 2.0B (J1939) port
• Event input for external logging control
• Operating Temperature -20C to 65C
• LCD with backlight contrast control
• Input voltage Range 10 to 32 volts
• Power consumption 2.1 watts
• Electrical Compatibility CE, FCC Class B

15
AgGPS 70 RDL Display

• Display -
• Same LCD display as the AgGPS 124/132
• 2 lines, 16 characters each line
• All screens on the AgGPS 124/132 mirror the AgGPS
  70 RDL
• Backlight
• Adjustable contrast

16
AgGPS 70 RDL Keypad

• Mode button -
• Switch between GPS receiver and RDL control
  functions
• Menu navigation buttons
• 6 Button section for control of the Parallel
  Swathing Option

17
AgGPS 70 RDL Memory Card

• Compact Flash Memory Card - interchangeable with
  AgGPS 170
• Easily access through door
• Stores data in shapefile format, the same format
  as AgGPS 170
• Logged data compatible with ArcExplorer, ArcView
  or compatible mapping/GIS software

18
AgGPS 70 RDL Memory Card

• Recording type at user selected interval
• Detail maps - snail trail of points
• Coverage maps - polygons centered on detail point
• Automatic File naming

19
AgGPS 70 RDL Memory Card

• Magnetic door sensor
• Stops logging when the door is opened

20
Summary of AgGPS 70 RDL

• A versatile modular component
• Adds Data Logging
• Adds Remote Display
• An essential component of the AgGPS PSO Plus, the
  full-featured upgrade to the extremely
  successful AgGPS PSO
