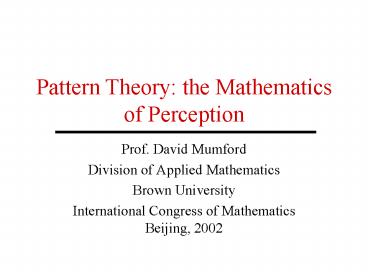

Pattern Theory: the Mathematics of Perception

1
Pattern Theory the Mathematics of Perception

• Prof. David Mumford
• Division of Applied Mathematics
• Brown University
• International Congress of Mathematics Beijing,
  2002

2
Outline of talk

• I. Background history, motivation, basic
  definitions
• A basic example Hidden Markov Models and
  speech and extensions
• The natural degree of generality Markov
  Random Fields and vision applications
• IV. Continuous models image processing via
  PDEs, self-similarity of images and random
  diffeomorphisms

URL www.dam.brown.edu/people/mumford/Papers
/ICM02powerpoint.pdf or /ICM02proceedings.pdf
3
Some History

• Is there a mathematical theory underlying
  intelligence?
• 40s Control theory (Wiener-Pontrjagin), the
  output side driving a motor with noisy feedback
  in a noisy world to achieve a given state
• 70s ARPA speech recognition program
• 60s-80s AI, esp. medical expert systems,
  modal, temporal, default and fuzzy logics and
  finally statistics
• 80s-90s Computer vision, autonomous land
  vehicle

4
Statistics vs. Logic

• Plato If Theodorus, or any other geometer,
  were prepared to rely on plausibility when
  he was doing geometry, he'd be worth absolutely
  nothing.

• Gauss Gaussian distributions, least squares ?
  relocating lost Ceres from noisy incomplete data
• Control theory the Kalman-Wiener-Bucy filter
• AI Enhanced logics lt Bayesian belief networks
• Vision Boolean combinations of features lt
  Markov random fields

• Graunt counting corpses in
  medieval London

5
What you perceive is not what you hear

• ACTUAL SOUND
• The ?eel is on the shoe
• The ?eel is on the car
• The ?eel is on the table
• The ?eel is on the orange

• PERCEIVED WORDS
• The heel is on the shoe
• The wheel is on the car
• The meal is on the table
• The peel is on the orange

(Warren Warren, 1970)
Statistical inference is being used!
6
Why is this old man recognizable from a cursory
glance?
His outline is lost in clutter, shadows and
wrinkles except for one ear, his face is
invisible. No known algorithm will find him.
7
The Bayesian Setup, I
8
The Bayesian Setup, II

• This is called the posterior distribution on xh
• Sampling Pr(xo,xh?), synthesis is the acid
  test of the model

• The central problem of Statistical learning
  theory
• The complexity of the model and the
  Bias-Variance dilemma
• Minimum Description LengthMDL,
• Vapniks VC dimension

9
A basic example HMMs and speech recognition
I. Setup
10
A basic example HMMs and speech recognition
II. Inference by dynamic programming
(c) Optimizing the ?s done by EM algorithm,
valid for any exponential model
11
Continuous and discrete variables in perception

• Perception locks on to discrete labels, and the

• world is made up of discrete objects/events

• High kurtosis is natures universal signal of
• discrete events/objects in space-time.
• Stochastic process with i.i.d. increments has
• jumps iff the kurtosis k of its increments is
  gt 3.

12
A typical stochastic process with jumps
Xt stochastic process with independent
increments, then
13
Ex. daily log-price changes in a sample of stocks
Note fat power law tails
N.B. vertical axis is log of probability
14
Particle filtering

• Compiling full conditional probability tables is
  usually impractical.

15
Estimating the posterior distribution on optical
flow in a movie (from M.Black)
Horizontal flow
16
(follow window in red)
Horizontal flow
17

Horizontal flow
18

Horizontal flow
19

Horizontal flow
20

Horizontal flow
21
No process is truly Markov

• Speech has longer range patterns than phonemes
  triphones, words, sentences, speech acts,
• PCFGs probabilistic context free grammars
  almost surely finite, labeled, random branching
  processes
• Forest of random trees Tn, labels xv on
  vertices, leaves in 11 corresp with
  observations sm, prob. p1(xvkxv) on children,
  p2(smxm) on observations.).
• Unfortunate fact nature is not so obliging,
  longer range constraints force context-sensitive
  grammars. But how to make these stochastic??

22
Grammar in the parsed speech of Helen, a 2 ½
year old
23
Grammar in images (G. Kanisza)contour completion
24
Markov Random Fields the natural degree of
generality

• Time ?linear structure of dependencies
• space/space-time/abstract situations ? general
  graphical structure of dependencies

The Markov property xv, xw are conditionally
independent, given xS , if S separates v,w in
G. Hammersley-Clifford the converse.
25
A simple MRF the Ising model
sk1,l-1
sk1,l
sk1,l1
sk,l
sk,l1
sk,l-1
sk-1,l-1
sk-1,l
sk-1,l1
26
The Ising model and image segmentation
27
A state-of-the-art image segmentation algorithm
(S.-C. Zhu)
Input Segmentation
Synthesis from model
I p(
I W)
Hidden variables describe segments and their
texture, allowing both slow and abrupt intensity
and texture changes (See also Shi-Malik)
28
Texture synthesis via MRFs
On left a cheetah hide In middle, a sample
from the Gaussian model with identical second
order statistics On right, a sample from
exponential model reproducing 7 filter marginals
using
29
Monte Carlo Markov Chains
Basic idea use artificial thermal dynamics to
find minimum energy (maximum probability) states
30
Bayesian belief propagation and the Bethe
approximation

• Can find modes of MRFs on trees using dynamic
  programming

• Bayesian belief propagation finding the modes
  of the Bethe
• approximation with dynamic programming

31
Continuous models Ideblurring and denoising

• Observe noisy, blurred image I,
• seek to remove noise, enhance edges
  simultaneously!

32
An example Bela Bartok enhanced via the
Nitzberg-Shiota filter
33
Continuous models II images and scaling

• The statistics of images of natural scenes
  appear to be a fixed point under block-averaging
  renormalization, i.e.
• Assume N?N images of natural scenes have a
  certain probability distribution form N/2?N/2
  images by a window or by 2?2 averages get the
  same marginal distribution!

34
Scale invariance has many implications

• Intuitively, this is what we call clutter
  the mathematical explanation of why vision is
  hard

35
Three axioms for natural images
1. Scale invariance
3. Local image patches are dominated by
preferred geometries edges, bars, blobs as
well as blue sky blank patches (D.Marr,
B.Julesz, A.Lee).
It is not known if these axioms can be exactly
satisfied!
36
Empirical data on image filter responses
Probability distributions of 1 and 2 filters,
estimated from natural image data. a) Top plot
is for values of horizontal first difference of
pixel values middle plot is for random 0-mean
8x8 filters. Vertical axis in top 2 plots is
log(prob.density). b) Bottom plot shows level
curves of Joint prob.density of vert.differences
at two horizontally adjacent pixels. All are
highly non-Gaussian!
37
Mathematical models for random images
38
Continuous models IIIrandom diffeomorphisms

• The patterns of the world include shapes,
  structures which recur with distortions
  e.g. alphanumeric characters, faces, anatomy
• Thus the hidden variables must include (i)
  clusters of similar shapes, (ii) warpings
  between shapes in a cluster
• Mathematically need a metric on (i) the space
  of diffeomorphisms Gk of ?k, or (ii) the space
  of shapes Sk in ?k (open subsets with smooth
  bdry)
• Can use diffusion to define a probability measure
  on Gk .

39
Metrics on Gk, I
40
Metrics on Gk, II
Note linear in u, so u can be a generalized
function!
41
Geodesics in the quotient space S2

• S2 has remarkable structure
• Weak Hilbert manifold
• Medial axis gives it a cell decomposition
• Geometric heat equation defines a deformation
  retraction
• Diffusion defines probability measure
• (Dupuis-Grenander-Miller, Yip)

42
Geodesics in the quotient space of landmark
points gives a classical mechanical
system(Younes)
43
Outlook for Pattern Theory

• Finding a rich class of stochastic models
  adequate
• for duplicating human perception yet tractable
• (vision remains a major challenge)

• Finding algorithms fast enough to make
  inferences
• with these models (Monte Carlo? BBP ?
• competing hypothesis particles?)

• Underpinnings for a better biological theory of
• neural functioning e.g. incorporating particle
• filtering? grammar? warping? feedback?

URL www.dam.brown.edu/people/mumford/Papers
/ICM02powerpoint.pdf or /ICM02proceedings.pdf
44
(No Transcript)
45
A sample of Graunts data
