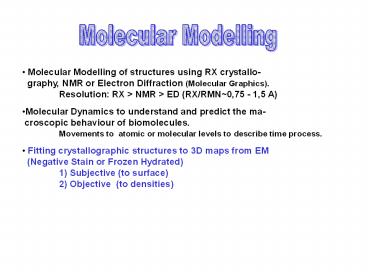

Molecular Modelling

• Molecular Modelling of structures using RX
  crystallo- graphy, NMR or Electron Diffraction
  (Molecular Graphics). Resolution RX gt NMR gt
  ED (RX/RMN0,75 - 1,5 A)
• Molecular Dynamics to understand and predict the
  ma- croscopic behaviour of biomolecules.
  Movements to atomic or molecular levels to
  describe time process.
• Fitting crystallographic structures to 3D maps
  from EM (Negative Stain or Frozen Hydrated)
  1) Subjective (to surface) 2) Objective (to
  densities)

2
Image Processing
Visually enhance (subjective) or statistically
(objective) evaluate some aspect of an image not
apparent in its original form.

• Optical Processing. Uses optics to carry out
  a process. Eyeglasses, Darkroom
• Analog Processing. Refers to the alteration of
  images through electrical means. Brightness
  and contrast controls on a TV
• Digital Image Processing Same as above but on
  a computer

One picture is worth more than ten thousand words
3
History
A digital picture produced in 1920 from a coded
tape by telegraph printer with special type
faces. Transmitted via submarine cable from
London to New York for newspapers
Cable picture transmitted by 15-tone equipment
from London to New York in 1929
4
The Digital Image Processing System
Mass Storage
Digital Computer
Operator Console
Digitizer
Display
5
The Digital Image Processing System
Digitizer

• Microdensitometers Negatives or photographs are
  scanned by light beam recording the gray level
  either by transmission or by reflection.
• Flat bed (scanners)
• Wrapped around a drum
• Digital sensors Remote sensors used by satellite
  surveillance
• Video scanners Use a video camera to acquire the
  image to be converted to a digital image.

6
Image Adquisition
A/D ConverterQuantization

• The digital image processor converts a continuous
  tone image to discrete points of information
  (sampling quantization or digitizing).
• A sample point is referred to as a picture
  element or pixel.
• An image is digitized into a grid of pixels (n
  columns m rows)
• Each pixel is a number (digital), that represents
  the brightness of the original picture.

7
Origin
Digital Image

• Two dimensional light intensity function f(x,y),
  where x and y denote spatial coordinates and the
  value of f at any point (x,y) is proportional to
  the brightness (or gray level) of the image at
  that point.

Image elements, picture elements, pixels or pels
8
Spatial Resolution

• Describe how many pixels an image is divided
  into.
• The finer the resolution, the closer we approach
  to the appearance of the original image.

Units DPI, PPI
Spatial Frequency

• The rate at which brightness of an image changes
  from dark to light. Details range from minutely
  detailed in space cloth or moon surface to smooth
  varying shades in the overall scene.

9
Brightness Resolution

• This is concerned with how accurately the
  digital brightness of each pixel resembles the
  original brightness.
• The number of gray levels (G) can be represented
  in each pixel.
• G 2m
• G2 means m1 G8 means m3 G256 means m8

10
Brightness Resolution

• How many gray levels can see a human been?
• The human vision is a result of a combination of
  brightness adaptation and contrast sensitivity of
  the eye.
• Experimentally the human eye can detect only one
  or two dozen in intensity levesl, but to obtain a
  display that will appear reasonably smooth to the
  human eye a range over 100 intensity levels is
  generally required.

11
Image Histogram

• A histogram of gray levels provides a global
  description of the appearance of an image.
• N(b) is a function of the number of pixels (N)
  with the same gray level (b).

12
Histogram Transformations
13
Negatively Stained Tarantula Thick Filament
43.5 nm
14
Discontinuous Helices
Helical repeat 43.5nm
43.5nm/14.5nm3
14.5nm
14.5nm Sub-units separation

1/p Subunits separation

• The myosin heads on the surface of myosin
  filament are arranged with helical geometry.
• In Tarantula muscle they form 4 helices with a
  helical repeat of 43.5nm, and a separation
  between sub-units of 14.5nm

Subunits separation 1/43.5nm-10.023nm-1
1/14.5nm-1
1/P Helical repeat
15
Fourier Transform
F(u) ? ? (x) exp-j2??x dx -?
One-dimensional
Two-dimensional
16
Discontinuous Helices
Helical repeat 43.5 nm
43.5nm/14.5nm3
14.5 nm
14.5 nm Subunits separation

1/p Subunits separation
Subunits separation 1/43.5nm-10.023nm-1
1/14.5nm-1
1/P Helical repeat
17
FFT
18
Lowpass Filter

• Ideal lowpass filterAll the frequencies inside
  a circle of radius D0 are passed with no
  attenuation, while all frequencies outside this
  circle are completely attenuated.
• Trapezoidal lowpass filter
• Butterworth lowpass filter
• Exponential lowpass filter

19
Lowpass Filter
90 95 98 99 99.5 99.9
20
Lowpass Filter
Ideal
90 95 98 99 99.5 99.9
