Role of Land Information Ontario Imagery

1

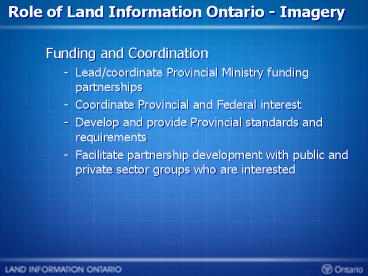

Role of Land Information Ontario - Imagery

• Funding and Coordination
• Lead/coordinate Provincial Ministry funding
  partnerships
• Coordinate Provincial and Federal interest
• Develop and provide Provincial standards and
  requirements
• Facilitate partnership development with public
  and private sector groups who are interested

2
Role of Land Information Ontario - Imagery

• Project Management
• Contract and Agreement negotiations
• Enter into agreements with Project Vendors and
  Partners
• Accept and deliver data and products to
  Provincial Partners
• Coordinate (with stakeholders and partners) QA/QC
  of products

3
2002 GTA Ortho and DEM Project (27105 sq. km)
4
2002 GTA Project

• Fully completed and available
• Mosaics created and available
• Need to ensure that MOE has all the data
  available to use
• DEM upgraded into larger tiles
• Edgematched
• Corrected

5
Ontario Quick Bird Project
Project Overview

• Image Requirements contd
• Source Water Protection Legislation requires land
  use and water resource mapping
• Detailed analysis of current data holdings across
  the province identified large areas where no
  imagery was available
• Quick Bird satellite imagery was considered to
  offer the most detailed imagery at the most
  effective price
• A project was put in place in March to capture
  approximately 125,000 sq km of imagery
• Anticipated completion in 2007

6
Ontario Quick Bird Project
Area of Interest
7
Quick Bird Project Status
MNR Fire Acquisitions
8
South Western Ontario Orthophotography Project
(SWOOP)

• Project initiated out of Sarnia/Lambton to
  capture updated, high resolution orthophotography

• Development of funding partnerships expanded
  beyond Sarnia/Lambton
• Evolved to large project area, encompassing all
  of south western Ontario 40,000 sq km

9
SWOOP Project Area
10
SWOOP Project Overview

• Utilizing Digital Camera Technology
• Technical Requirements
• 2 levels of imagery includes multi band data
• Planning Level
• 30 cm orthophotography across the whole project
  area
• Digital surface model being collected
• Engineering Level
• 10 cm orthophotography in selected urban areas,
  Essex County and the shorelines of Lake Huron and
  Georgian Bay
• Digital Elevation Data accurate enough to
  generate 50 cm contours throughout areas of
  interest
• Spring photography leaf off, after snow
• Full delivery by Dec 2006
• Unrestricted IP rights for all funding partners

11
Color Digital
UltraCam Digital GSD 17 cm
12
SWOOP Partnerships

• Approximately 100 private and public sector
  funding partners
• Total Cost for all products 1.6 Million
• Funding based on number of organizations
  interested within a particular geographic area
• 20 municipalities paying less than 1,000.00 (one
  paying 9.60 25 sq km)
• Provincial and Federal Government contributions
  Coordinated through LIO
• Includes border areas in USA (Detroit/Port Huron)
  1km
• Large Private Sector Organizations accessing
  whole coverage area
• Hydro One
• Union Gas

13
Imagery and Orthophoto Partnerships

• Project Areas 250,000 sq mi
• Project Costs 11 Million
• Deliverables
• Southern Ontario
• 20 50 cm colour orthos
• DTM
• Northern and Eastern Ontario
• Multi band Quick Bird Imagery
• Ownership varies for each project
• Funding Over 200 Provincial, Municipal,
  Conservation Authority, Federal, Private Sector
  Partnerships

14
Forest Management Areas Crown Land

• 40 of the province
• 30 cm resolution
• Updating imagery over the next five years
• Multispectral orthos
• Includes enhanced DEM
• Schedule being determined

15
Future Opportunities for Partnerships

• Partnerships provide a cost effective method of
  obtaining current and accurate high resolution
  data
• Imagery updates who? when?
• Highly developed municipalities currently on a
  three year update cycle
• Rural municipalities looking at 5 year update
  intervals
• Need to work with others to identify and
  communicate projects
• Need to consider products leaf on/off, DEM,
  resolution, licencing etc.

16
Future Opportunities for Partnerships

• Development of a strategic, coordinated and
  sustainable partnership funding approach to high
  cost data acquisition products through LIO
• Increase communication across all public sector
  organizations to realize cost effectiveness and
  satisfy organizational needs
• Need senior management support to develop
  strategic and coordinated projects
