CS-422 Dr. Mark L. Hornick

1

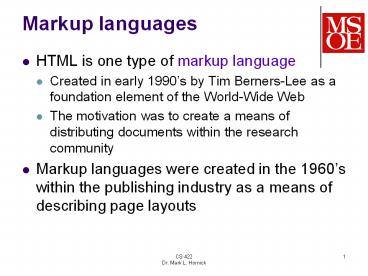

Markup languages

• HTML is one type of markup language
• Created in early 1990s by Tim Berners-Lee as a
  foundation element of the World-Wide Web
• The motivation was to create a means of
  distributing documents within the research
  community
• Markup languages were created in the 1960s
  within the publishing industry as a means of
  describing page layouts

2
HTMLHypertext Markup Language

• HTML tags (markup) indicate what kind of
  structure your html document contains
• Valid HTML documents incorporate a well-defined
  structure
• The rules of HTML specify the sequence and order
  in which the markup tags appear in a valid HTML
  document
• Check validity of a website at http//validator.w3
  .org

3
Basic HTML document structure
Tells the browser the content of the file is HTML

• lthtml xmlns"http//www.w3.org/1999/xhtml"
  xmllang"en" lang"en gt
• ltheadgt
• ltmeta http-equivContent-Type
  contenttext/html charsetISO-8859-1gt
• lttitlegtCS422lt/titlegt
• lt/headgt
• ltbodygt
• lth1gtHTML syntax summarylt/h1gt
• lth2gtor, all you need to know about HTMLlt/h2gt
• ltpgtThis is how you write
• an HTML document.lt/pgt
• ltpgtThe end.lt/pgt
• lt/bodygt
• lt/htmlgt

Tells the browser about your web page.
Tells the browser, in this case, were using the
Latin-1 character set.
Tells the browser the title of the page appears
in browser titlebar.
The body encloses everything that appears within
the browser window.
Tells the browser that this is a level-1 header.
Tells the browser that this is a paragraph, or
normal block of text.
4
There are two main types of markup language

• Procedural markup focuses on the presentation of
  a document
• Font face and size specification, centering,
  highlighting, etc.
• Nroff, troff, TEX, PostScript are procedural
  markup languages
• Nroff variants were used on early Apple IBM PCs
• Descriptive markup focuses on the structure of a
  document
• Title, headings, sections, body, etc.
• SGML and XML are systems for defining descriptive
  markup languages (more on XML later)

5
So, what kind of markup language is HTML?
6
History of HTML

• Version 1.0 (1993)
• Not officially a standard at this point
• No graphics support for images
• Version 2.0 (1995)
• Graphics support introduced
• Version 3.x (1995-1997)
• Days of Browser Wars and proprietary extensions
• Mixed procedural and descriptive markup

7
History of HTML

• Version 4.0 (12/1997)
• W3C tries to bring order to the chaos
• Separates descriptive structure (HTML) from
  procedural presentation (CSS)
• Version 4.01 (1999)
• W3C proposals adopted by major browser authors
• XHTML Version 1 (2000)
• HTML is a grammar defined as an SGML application
• XHTML is a grammar defined as an XML application
• Same vocabulary as HTML 4.01
• But stricter syntactical rules
• XHTML Version 1.1 (2007)
• Still working draft

8
HTML 4.01 and XHTML 1.0 are structural markup

• Describing only the content of a document
• Presentation is left to Cascading Style Sheets
• The web community is still not all on-board

9
The impact of XML

• XML grammars are very strict
• Eliminates ambiguity
• No room for sloppiness
• No unclosed tags
• Tags must be lowercase
• What does this mean about how a modern browser
  displays legacy HTML code???

10
Flavors of HTML and XHTML

• Flavor level of adherence to standards that a
  document announces to a browser
• Strict, in which deprecated elements are
  forbidden
• Transitional, in which deprecated elements are
  allowed
• Frameset, like Strict but where frame-related
  elements are allowed
• Flavors are indicated to the browser via a
  DOCTYPE directive

11
The DOCTYPE directive should be the first line of
any (X)HTML document

• It tells the browser the flavor of the (X)HTML
  that follows in the remainder of the
  documentlt!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML
  4.01 Transitional//EN
• "http//www.w3.org/TR/HTML4.01/loose.dtd"gt
• lt!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01
  Strict//EN
• "http//www.w3.org/TR/HTML4.01/DTD/strict.dtd"gt
• lt!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01
  Frameset//EN
• "http//www.w3.org/TR/HTML1/DTD/frameset.dtd"gt
• lt!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0
  Transitional//EN
• "http//www.w3.org/TR/xhtml1/DTD/xhtml-transitiona
  l.dtd"gt
• lt!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0
  Strict//EN
• "http//www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd
  "gt
• lt!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0
  Frameset//EN
• "http//www.w3.org/TR/xhtml1/DTD/xhtml1-frameset.d
  td"gt

12
ltmetagt directive

• In addition to a DOCTYPE directive, valid (X)HTML
  should also contain a ltmetagt directive to
  indicate the character encoding
• ltmeta http-equiv"Content-Type"
  content"text/html charsetISO-8859-1 /gt
• This directive should be nested in the ltheadgt
  element before the lttitlegt element

13
Tags specify the structural elements of a HTML
document

• Syntax
• lttaggtelement content lt/taggt
• The opening and closing tags names match
• The closing tag name is preceded with a /
• Tags must be lowercase
• Case didnt matter in early HTML
• Other html tags can often be nested in the
  content
• Nested tags should be indented for clarity

14
Some tags and their usage

• Block element syntax lttaggtelement contentlt/taggt
• lthtmlgt, ltheadgt, lttitlegt
• ltbodygt, lth1gt, lth2gt, lth3gt, ltpgt
• ltaddressgt - used to provide contact info for the
  html doc author
• ltpregt - preserves whitespace (spacing and
  linebreaks)
• ltblockquotegt - lengthy quotations spanning
  several paragraphs ltpgt can be inserted inside a
  ltblockquotegt element

15
Inline vs. Block elements

• Block elements are always displayed as if they
  had a linebreak before and after them
• ltpgt used to designate a paragraph
• ltblockquotegt used for long quotations
• Inline elements appear within the flow of text on
  a page
• ltqgt used for short inline quotations
• ltemgt indicates emphasized text
• ltstronggt indicates strongly emphasized text

16
Inline elements

• abbr - abbreviation
• acronym - TLAs and such
• cite - citation
• code computer code
• dfn - definition
• em emphasized text
• q short quote
• strong strongly emphasized text
• samp sample (computer) output
• kbd keyboard entry
• var variable name
• sub - subscript
• sup - superscript

17
Element Attributes

• Elements may often contain attributes which
  provide additional information about the
  elements structure
• lttag attributevaluegt content lt/taggt
• An attributes value must be enclosed in double
  quotes
• lth1 idtitle1gt A Computer Haikult/h1gt

18
Hyperlink element

• lta hrefurlgt
• The href attribute indicates the url of the
  hyperlink
• More on attributes later

19
Entity references

• Since some characters, like lt and gt are part of
  the markup
• use entity references when you need to include
  them in your content
• lt lt
• gt gt
• quot
• apos
• amp

20
Empty elements

• Are various elements containing no content, but
  instead act like directives
• ltbr/gt - to explicitly break a line
• ltimg srcurl altdescription/gt - to insert an
• BTW src and alt are attributes, not content

21
Leftover presentational elements

• b - bold
• big
• i italic
• s or strike strikethrough
• tt teletype
• u underlined
• There is a better way to indicate presentation
  CSS

22
HTML Comments

• lt!-- this is a comment --gt
• Dont place a comment
• Inside a tag
• Inside another comment
• Leave space after the opening lt!-- and before the
  closing --gt
