Web Programming Course

1

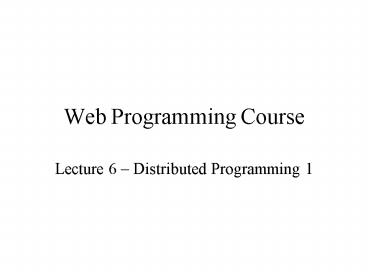

Web Programming Course

• Lecture 6 Distributed Programming 1

2
Networking

• Early computers were highly centralized.
• Single point of failure
• User has to access the computer.
• Low cost computers made it possible to get past
  these 2 primary disadvantages with a network.
• Network ... communication system for
  connecting end-systems

3
Networking

• End-systems also known as hosts
• PCs, workstations
• dedicated computers
• network components
• Advantages of networking
• Sharing of resources
• Price/Performance
• Centralized administration
• Computers as communication tools

4
Networking

• Mechanisms by which software running on two or
  more endpoint can exchange messages
• Java is a network centric programming language
• Java abstracts details of network implementation
  behind a standard API

5
Networking - Traditional Uses

• Communication (email)
• Resource Sharing
• File exchange, disk sharing
• Sharing peripherals (printers, tape drives)
• Remote execution

6
Networking - New(er) Uses

• Information sharing
• Peer-to-Peer computing
• Entertainment, distributed games
• E-Commerce
• Collaborative computing
• Forums
• Chats
• WWW

7
LAN - Local Area Network

• Connects computers that are physically close
  together ( lt 1 mile).
• high speed
• Technologies
• Ethernet 10 Mbps, 100Mbps
• Token Ring 16 Mbps

8
WAN - Wide Area Network

• Connects computers that are physically far apart
  (long-haul network).
• typically slower than a LAN.
• typically less reliable than a LAN.
• Technologies
• telephone lines
• satellite communications

9
Client/Server Architecture

• Classical network architecture is a client/server
  (C/S) architecture
• A server is a process (not a machine!) waiting
  for requests from a client.
• A client is a process (not a machine!) sending
  requests to a server and waiting for a reply.
• Both client and server are software entities

10
Client/Server Architecture

• Server examples
• finds a document.
• prints a file for client.
• records a transaction.
• Servers are generally more complex
• Two basic types of servers
• Iterative - handles one client at a time.
• Concurrent - handles many clients in parallel.

11
Iterative Server

• Naïve server implementation is sequential.
• handles one request at a time.
• Consider a server that needs to read data from a
  disk
• Reading a file from disk takes a long time
• The server will be idle while it waits for the
  data to be read
• Other clients will be waiting

12
Iterative Server
13
Concurrent Server

• Threaded servers can process several requests at
  once.
• Each request is handled by a separate thread.
• This does not increase the overall amount of work
  done, but reduces the wastage!
• Threaded operation is worthwhile when threads are
  expected to block, awaiting I/O operations

14
Concurrent Server
15
Networking Models

• Using a formal model allows us to deal with
  various aspects of networking abstractly.
• We will look at a popular model OSI reference
  model.
• ISO proposal for the standardization of the
  various networking protocols (1984)
• The OSI reference model is a layered model.

16
Layering

• Divide a task into pieces and then solve each
  piece independently (or nearly so).
• Establish a well defined interface between layers
  .
• Major advantages
• Independence
• Extensibility

17
Layered System Example Unix OS
18
OSI 7-Layer Model
High level protocols

• 7 Application
• 6 Presentation
• 5 Session
• 4 Transport
• 3 Network
• 2 Data-Link
• 1 Physical

Low level protocols
19
OSI Communication Model

20
Communication Protocols

• Communication between two sides is defined
  through a protocol
• Protocol An agreed upon convention for
  communication
• Both sides need to understand the protocol.
• Examples TCP/IP, UDP, others
• Protocols must be formally defined and
  unambiguous
• Tons of documentation

21
Interface vs.Peer-to-PeerProtocols

• Interface protocols describe the communication
  between layers on the same side.
• Peer-to-peers protocols describe the
  communication between the sides at the same
  layer.

22
Layers

• Physical Layer transmission of raw bits over a
  communication channel
• Data Link Layer divides data into packets and
  provides an error-free communication link
• Network Layer selects path between the two
  sides, fragmentation reassembly, connection
  between network types

23
The Transport Layer

• Transport Layer provides virtual end-to-end
  links between peer processes
• TCP Transmission Control Protocol
• Connection oriented
• Reliable, keeps order
• UDP User Datagram Protocol
• Connectionless
• Unreliable
• Fast

24
Layers

• Session Layer establishes, manages, and
  terminates sessions between applications
• Presentation Layer responsible for data
  compression and encryption
• Application Layer anything above previous layers
  (specific applications)

25
The Internet

• A worldwide network connecting millions of hosts
• WAN interconnecting many LANs of various types
• Applications
• World-Wide Web
• Email
• FTP
• more and more

26
The Web

• The term World-Wide Web (or simply Web) describes
  a collection of pieces of information that
• are stored as files on particular hosts
• can be reached by other connected hosts
• These hosts are called Web servers

27
Web or Internet?

• They are not the same things.
• The Internet is a collection of computers or
  networking devices connected together.
• They have communication between each other.
• The Web is a collection of documents that are
  interconnected by hyper-links.
• These documents are provided by Web servers and
  accessed through Web browsers.

28
How does the Web Works?

• The Web information is stored in the Web pages
• In HTML format.
• The Web pages are stored in the hosts called Web
  servers
• In the Web server file system.
• The computers reading the pages are called Web
  clients using specific Web browser
• Most commonly Internet Explorer or Netscape.
• The Web server waits for the request from the Web
  clients over the Internet
• Internet Information Server (IIS) or Apache.

29
HTML

• Much of the information that is found on the Web
  is stored as HTML files.
• HTML is a scripting language for storing
  formatted text.
• allows to combine other types of information
  (such as images) in the documents.
• Allows interconnection (links) between the
  documents.

30
Browsers

• Are used to display HTML documents.
• The browser is responsible for
• fetching the documents
• displaying them according to the HTML rules.
• Browsing refers to the activity of viewing Web
  documents through following the links.

31
Addresses

• Each communication endpoint must have an address.
• Consider 2 computers communicating over a
  network
• the communication protocol must be specified
• the name of the host (end-system) must be
  specified
• the specific process of the host must be
  specified.

32
URLs

• Each Web document has a unique identifying
  address called a URL (Uniform Resource Locator).
• A URL takes the following form
• http//cs.haifa.ac.il/courses/webp/index.htm
• URL structure ltschemegt//ltusergtltpasswordgt_at_lthostgt
  ltportgt/ltpathgtltparamsgt?ltquerygtltfraggt

file
protocol
host
33
URL fields

• The protocol field specifies the way in which the
  information should be accessed.
• The host field specifies the host on which the
  information is found.
• The file field specifies the particular location
  on the hosts disk (path) where the file is found
  and the name of the file
• There could be more complex forms of URLs but we
  do not discuss them

34
IP Addresses

• Hostnames (i.e., URLs) are used by people.
• Network mechanisms use IP-addresses instead.
• Every host connected to the Web has a unique IP
  address that identifies it.
• IP addresses are
• 32-bit (4 byte) numbers
• usually written as four decimal numbers separated
  by dots, e.g. 135.17.98.240, where the numbers
  refer to the above 4 bytes.

35
Ports

• As data traverses the Web, each packet carries
  not only the address of the host but also the
  port on that host to which it is aimed.
• 65,536 ports are available at each host.
• A port does not represent anything physical like
  a serial or parallel port.
• Hosts are responsible for reading the port number
  from the packets they receive to decide which
  program should process that data.

36
Ports

• On Unix systems, ports between 1 and 1023 are
  reserved for the OS processes.
• Any process can listen for connections on ports
  of 1025 to 65,535 as long as the port is not
  already occupied.
• In Windows and Mac-OS, any process can listen to
  any port.

37
Well-Known Ports

• Many services run on well-known ports.
• Web HTTP servers listen for connections on port
  80.
• SMTP servers listen on port 25.
• Echo servers listen on port 7.
• FTP servers listen on port 21.
• Telnet servers listen on port 23.
• DayTime servers listen on port 13.
• whois servers listen on port 43.
• finger servers listen on port 79.

38
Client-Server Model
Server application
Client application
Port 5746
Server machine 144.12.34.99
Client machine 190.30.42.155
39
Hostnames

• However it is inconvenient for people to remember
  IP addresses and ports.
• Many hosts have in addition to IP address a human
  readable hostname.
• www.haifa.ac.il
• www.cnn.com

40
Hostnames

• Hostnames have hierarchical structure.
• Hostname www.cs.haifa.ac.il, refers to the host
  www in the computer science (cs) department of
  the Haifa University, which is an Academic Campus
  (ac) in Israel (il).
• The rightmost part describes the main domain of
  the host. Left to it, a sub-domain, and further
  left more specific sub-domains.

41
Domains

• There are generic domains
• com commercial organizations
• edu educational institutions
• gov U.S. governmental organizations
• Most countries use country domains
• il Israel
• uk United Kingdom
• jp Japan

42
DNS Servers

• The mapping between the hostnames and the
  corresponding IP address is done by DNS.
• It is not feasible for the Web browser to hold a
  table mapping all the hostnames to their
  IP-addresses.
• New hosts are added to the Web every day
• Hosts change their names and IP addresses.

43
DNS Servers

• Web applications use a DNS (Domain Name System)
  servers to map IP addresses to the hostnames.
• DNS servers also use a hierarchical scheme for
  naming hosts
• DNS hierarchy is right-to-left

44
Web Protocols

• It is a special set of rules that endpoints (both
  clients and servers) in the Web use to handle
  communication.
• Transmission Control Protocol (TCP) To exchange
  messages with other endpoints at the information
  packet level.
• Internet Protocol (IP) To send and receive
  messages at the address level.
• Hypertext Transfer Protocol (HTTP) To deliver
  HTML, sound, audio files on the World Wide Web.

45
HTTP Protocol

• HyperText Transfer Protocol
• Used between Web-clients (e.g., browsers) and
  Web-servers
• Text based
• Built on top of TCP protocol
• Stateless protocol
• No data about the communicating sides is stored

46
HTTP Transaction - Request

• Client sends a request that looks like
• GET /index.html HTTP 1.0
• GET is a keyword
• Index.html is the requested document
• HTTP 1.0 is the protocol version that the client
  understands
• The request terminates always with \r\n\r\n.
• Client may sends optional information
• For example, ltkeywordvaluegt list
• User-Agent browser name
• Accept formats the browser understand

47
HTTP Transaction - Request

• Request example
• GET /index.html HTTP 1.0
• User-Agent Lynx/2.4 libwww/2.1.4
• Accept text/html
• Accept text/plain
• In addition to GET, clients can request
• HEAD Retrieve only header for the file
• POST Send data to the server
• PUT Upload a file to the server

48
HTTP Transaction - Response

• Server response
• sends status line
• HTTP/1.0 200 OK
• sends header information
• Content-type text/html
• Content-length 3022
• ...
• sends a blank line (\n)
• sends document contents (e.g., html file)

49
HTTP Transaction - Response
HTTP/1.1 200 OK Date Fri, 16 Apr 2004 184813
GMT Server Apache/1.3.29 (Darwin) Last-Modified
Fri, 16 Apr 2004 101559 GMT ETag
"58db37-89-407fb25f" Accept-Ranges
bytes Content-Length 137 Connection
close Content-Type text/html lthtmlgt ltbodygt ltpgtWe
lcomelt/pgt ltimg srcsmiley.gif"gt lt/bodygt lt/htmlgt
HTTP Header
Blank line
Data
50
HTTP Transaction Example
51
HTTP 1.0 response codes

• 2xx Successful
• respond codes between 200-299 indicate that
  respond accepted, understood and accepted
• 200 OK the most popular respond indicate
  success
• 201 created respond to successful POST request
• 202 accepted respond to POST request, meaning
  processing is not over yet
• 204 no content the server successfully
  processed the request, but has no content to send
  back

52
HTTP 1.0 response codes

• 3xx Redirection
• respond codes between 300-399 indicate that the
  web browser needs to go to a different page
• 301 Moved Permanently the page has moved to a
  new URL.
• 302 Moved Temporarily the page has moved
  temporarily to a new URL.
• 304 Not Modified get request with
  If-Modified-Since get, such respond if requested
  file has not been changed.

53
HTTP 1.0 response codes

• 4xx Client Error
• respond codes between 400-499 indicate that the
  server got error request
• 400 Bad Request improper request
• 401 Unauthorized unauthorized request (need
  username password)
• 403 Forbidden the server refuses to process the
  request
• 404 Not Found the server cannot find the
  requested page

54
HTTP 1.0 response codes

• 5xx Server Error
• respond codes between 500-599 indicate that
  something has gone wrong with the server, and it
  cannot be fixed
• 500 Internal Server Error unexpected error
  occurred at the server
• 501 Not Implemented the server does not have
  the feature that is needed to fulfill the
  request.
• 502 Bad Gateway applicable only to proxies
  servers
• 503 Service Unavailable the server temporarily
  unable to handle the request (due to overload or
  maintenance)

55
HTTP 1.1

• HTTP 1.1 has much more responses defined.
• HTTP 1.1 is an official standard (unlike 1.0).
• Primary improvement of version 1.1
• HTTP 1.0 open new connection or every request.
• HTTP 1.1 allows a client to send many requests
  over a single connection, that remains open until
  explicitly closed. Thus, overheads are reduced.
• Requests and responds are asynchronous. Clients
  can send many requests without waiting for
  response before sending the next request.

56
HTTP Daemons

• How can servers recognize incoming requests?
• In order to recognize the incoming requests, each
  server runs an HTTP-daemon
• Constantly running on the server
• Clients request for a service through the
  servers daemon
• Technically, any host connected to the Web can
  act as a server by running HTTP-daemon

57
Client - HTTPD interaction

• The user requests http//www.haifa.ac.il/index.htm
  l
• The browser contacts the HTTP-daemon running on
  the host www.haifa.ac.il and requests the
  document /index.html
• The HTTP-daemon translates the requested name to
  an access to a specific file in its local
  file-system.
• The server reads the file index.html from its
  disk and sends its content to the client.
• The client receives the document, parses it and
  the browser displays it graphically.

58
Client - HTTPD interaction
user requests http//www.haifa.ac.il /index.html
GET /index.html
host www.haifa.ac.il
sends the content of index.html
HTTPD application
Browser
Disk
59
Proxy Servers

• Act as delegates of Web-browsers for accessing
  the Web.
• The browser transfers the requests for a document
  to the Proxy Server
• The Proxy Server contacts the relevant Web Server
  and fetches the document on behalf of the
  browser.

60
Proxy server
proxy asks the document from the HTTPD
user requests a document
browser request the document from the proxy
sends thecontents of the document
Proxy server
Browser
Proxy application
Cache
61
Proxy Servers

• Proxy servers have several advantages over direct
  data access
• Security
• Can be combined with a firewall to enable
  restricted access to the Web.
• Communication
• Enable caching of popular documents.
• Portability
• Perform mediation' between different network
  protocols

62
Dynamically Generated Documents

• Many Web documents should be generated
  dynamically, upon requests from clients
• News items
• Web-based email
• Personalized applications
• Contents of these pages can not be prepared
  manually
• They are generated dynamically by Common Gateway
  Interface (CGI) programs

63
Dynamically Generated Documents

• The HTTP request invokes a program on the server.

• The program creates a new page on the fly and
  sends it to the client as a response.
• This program may use details sent in the request
  in order to generate the page.
• The CGI programs may be written in any language
• Most popular are Perl and Java.
• HTTP server that gets request to CGI program,
  usually invokes the CGI program in an independent
  new process.

64
Dynamically Generated Documents
user requests http//www.excite.com/search?whatso
mething
GET /search?whatsomething
host www.excite.com
sends thecontents of the document
HTTPD application
Browser
execution of a search program
65
The java.net package

• The java.net package contains classes that allow
  your programs to send and receive data across the
  Internet.
• Java java.net.InetAddress class represents an
  abstraction of Web addresses.
• Encapsulates an address
• Contains methods to convert IP addresses to
  hostnames and vice versa.

66
Parsing InetAddressess

• InetAddress object can be represented by
• its host name as a string,
• its IP address as a string,
• its IP address as a byte array
• public String getHostName()
• public String getHostAddress()
• public byte getAddress()

67
Creating InetAddress objects

• try //using hostname InetAddress address
  InetAddress.getByName("www.oreilly.com")
  System.out.println(address) catch
  (UnknownHostException e)
  System.out.println("Could not find!")
• OR
• try //using IP address InetAddress address
  InetAddress.getByName("208.201.239.37")
  System.out.println(address) catch
  (UnknownHostException e)
  System.out.println("Could not find!")

68
Given address, find a hostname

• try
• InetAddress ia
• InetAddress.getByName("152.2.22.3")
• System.out.println(ia.getHostName())
• catch (Exception e)
• e.printStackTrace()

69
Hosts with multiple addresses

• try
• InetAddress addresses
  InetAddress.getAllByName("www.microsoft.com")
• for (int i 0 i lt addresses.length i)
• System.out.println(addressesi)
• catch (UnknownHostException e)
• System.out.println("Could not find
  www.microsoft.com")

70
Local Host

• try
• InetAddress address InetAddress.getLocalHost()

• System.out.println(address)
• catch (UnknownHostException e)
• System.err.println(e)
• Returns an InetAddress object that contains the
  address of the computer the program is running
  on.
• In addition, local host may be accessed through
  an IP address 127.0.0.1.

71
InetAddress.equals()

• try
• InetAddress oreilly InetAddress.getByName("ww
  w.oreilly.com")
• InetAddress helio InetAddress.getByName("heli
  o.ora.com")
• if (oreilly.equals(helio))
• System.out.println ("www.oreilly.com is the
  same as helio.ora.com")
• else
• System.out.println ("www.oreilly.com is not
  the same as helio.ora.com")
• catch (UnknownHostException e)
• System.out.println("Host lookup failed.")


72
Parsing InetAddressess Example

• try
• InetAddress me InetAddress.getLocalHost()

• System.out.println("My name is "
  me.getHostName())
• System.out.println("My address is "
  me.getHostAddress())
• byte address me.getAddress()
• for (int i 0 i lt address.length i)
• System.out.print(addressi " ")
• System.out.println()
• catch (UnknownHostException e)
• System.err.println("Could not find local
  address")

73
The java.net.URL class

• The java.net.URL class represents a URL.
• Accessing a documents through URL object allows
  to hide protocol-dependent operations.
• Protocol handler is responsible for communicating
  with the server
• handles any necessary negotiation with the server

• returns the actual contents of the requested
  file.

74
The java.net.URL class

• When a URL object is constructed
• Java looks for the appropriate protocol handler
  (such as "http" or "mailto").
• It is presumed to be a part of the URL.
• If no such handler is found, the constructor
  throws a MalformedURLException.
• JDK 1.1 supports 10 protocols
• file, ftp, gopher, http, mailto, appletresource,
  doc, netdoc, systemresource, verbatim

75
Constructing URL Objects

• Java provides 4 constructors
• public URL(String u) throws MalformedURLException
• public URL(String protocol, String host, String
  file) throws MalformedURLException
• public URL(String protocol, String host, int
  port, String file) throws MalformedURLExcepti
  on
• public URL(URL context, String u) throws
  MalformedURLException

76
Constructing URL Objects

• URL u null
• try
• u new URL("http//cs.haifa.ac.il/courses/
  webp/index.htmlInfo")
• catch (MalformedURLException e)e.printStackTrace(
  )
• OR
• URL u null
• try
• u new URL("http","cs.haifa.ac.il",
  "/courses/ webp/index.htmlInfo")
• catch (MalformedURLException e)e.printStackTrace(
  )

77
Constructing URL Objects

• URL u null
• try
• u new URL("http","cs.haifa.ac.il", 80,
  "/courses/webp/index.htmlInfo")
• catch (MalformedURLException e)e.printStackTrace(
  )
• OR
• URL u1 null, u2 null
• try
• u1 new URL("http","cs.haifa.ac.il",
  "/courses/ webp/index.htmlInfo")
• u2 new URL(u1,"hw1.doc")
• catch (MalformedURLException e)e.printStackTrace(
  )

78
Parsing URLs

• The java.net.URL class has 5 methods to split a
  URL into its component parts.
• try
• u new URL("http//cs.haifa.ac.il/courses/
  webp/index.htmlInfo")
• catch (MalformedURLException e)
  e.printStackTrace()
• System.out.println("Protocol is "
  u.getProtocol())
• System.out.println("Host is " u.getHost())
• System.out.println("Port is " u.getPort())
• System.out.println("File is " u.getFile())
• System.out.println("Anchor is " u.getRef())

79
Parsing URLs

• If a port is not explicitly specified in the URL,
  it is set to -1.
• This does not mean that the connection is
  attempted on port -1 (which does not exist)
• This means that the default port (80) is used.
• If the anchor does not exist, it is null, so
  watch out for NullPointerExceptions.

80
Reading Data from a URL

• public final InputStream openStream() throws
  IOException
• The openStream() method opens a connection to the
  specified URL
• This allows to download data from the URL
• Any headers coming before the actual data are
  stripped off before, as the stream is opened

81
Reading Data from a URL

• try
• URL u new URL(args0)
• InputStream in u.openStream()
• in new BufferedInputStream(in)
• Reader r new InputStreamReader(in)
• int c
• while ((c r.read()) ! -1)
• System.out.print((char) c)
• catch (MalformedURLException e)
• System.err.println("unparseable URL")
• catch (IOException e)
• e.printStackTrace()

82
openConnection()

• openConnection() opens a socket (to be defined
  later) to the server
• Socket facilitates direct communication with the
  server .
• Particularly, it gives an access to everything
  sent by the server document, protocol headers,
  etc.

83
Reading Data from a URL

• try
• URL u new URL(args0) URLConnection uc
  u.openConnection() InputStream in
  uc.getInputStream(in) Reader r new
  InputStreamReader(in) int c
  while ((c r.read()) ! -1)
• System.out.print((char) c)
• catch (MalformedURLException e)
• System.err.println("unparseable URL")
• catch (IOException e)
• e.printStackTrace()

84
Using the Connection

• try URL u new URL(args0)URLConnection uc
  u.openConnection()System.out.println("Content-
  type " uc.getContentType())System.out.printl
  n("Content-encoding " uc.getContentEncoding())
  System.out.println("Content-length "
  uc.getContentLength())
• System.out.println("Date " new Date
  (uc.getDate()))System.out.println("Last
  modified "new Date (uc.getLastModified()))Sys
  tem.out.println("Expiration date " new Date
  (uc.getExpiration()))
• catch (Exception e) e.printStackTrace()

85
getContent()

• getContent() returns the downloaded data as an
  object.
• HTML or text file usually will become some sort
  of InputStream object.
• Image such as GIF or JPEG will become some sort
  java.awt.ImageProducer object.
• Casting can be made to the appropriate type.
• getContent() uses the content-type field in the
  header of the data accepted from the server.

86
getContent()

• try
• URL u new URL(args0)
• try
• Object o u.getContent()
• System.out.println("I got a "
• o.getClass().getName())
• catch (IOException e)
• e.printStackTrace()
• catch (MalformedURLException e)
• System.err.println("unparseable URL")


87
class URLEncoder

• The class contains a utility method for
  converting a String into a "x-www-form-urlencoder"
  format.
• To convert a String, each character is examined
• Characters 'a' to 'z', 'A' to 'Z', and '0' to '9'
  remain the same.
• The space character is converted into a plus sign
  ''.
• Other characters are converted into a 3-character
  string xx, where xx is the two-digit
  representation of the character.
• String encode(String s) translates a string into
  x-www-form-urlencoded format.

88
class URLDecoder

• The class contains a corresponding class to
  URLEncoder.
• String decode(String s) translates a
  x-www-form-urlencoded format into ASCII.

89
Using Lycos Search Engine

• import java.net.
• import java.io.
• public class LycosUser
• public static void main (String args)
• String querystring ""
• for (int i 0 i lt args.length i)
• querystring argsi " "
• querystring querystring.trim()
• querystring "query"
  URLEncoder.encode(querystring)

90
Using Lycos Search Engine

• try
• String thisLine
• URL u new URL("http//www.lycos.com/cgi- bi
  n/pursuit?" querystring)
• DataInputStream retHTML new
  DataInputStream(u.openStream())
• while ((thisLine retHTML.readLine()) ! null)

• System.out.println(thisLine)
• catch (Exception e)
• e.printStackTrace()
