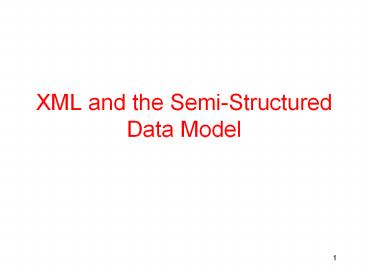

XML and the Semi-Structured Data Model
2
Motivation

• We have seen that relational databases are very
  convenient to query. However
• There is a LOT of data not in relational
  databases!!
• Perhaps the most widely accessed database is the
  web, and it certainly isnt a relational database.

3
Documents Vs. Databases
Documents Databases
Paragraphs, Sentences Tables, tuples
Easy for people to understand Easy for computers to understand
Static Dynamic
4
Querying the Web

• The web can be queried using a search engine,
  however, we cant ask questions like
• What is the weather in Zanzibar today?
• What is the lowest price for which a Jaguar is
  sold on the web?
• Problems
• There are no facilities for asking complex
  questions, such as aggregation of data
• Words have overloaded meanings (Jaguar)

5
Understanding the Web

• In order to query the web, we must be able to
  understand it.
• 2 Computer Science Approaches
• Artificial Intelligence Approach
• Database Approach

6
Artificial Intelligence Approach

• The web is unstructured and we must deal with
  it
• Use techniques for machine learning to understand
  the web.
• Example To understand the word Jaguar check if
  it appears on a page with the word car or
  automobile or rather with jungle and Africa
• Problem Such techniques tend to be inexact and
  have a large percentage of mistakes

7
Database Approach

• The web is unstructured and we will structure
  it
• Sometimes problems that are very difficult can be
  solved easily by enforcing a standard
• Encourage the use of XML as a standard for data
  exchange on the web

8
Example XML Document
Opening Tag

• lt?xml version1.0?gt
• lttransactiongt
• ltaccountgt89-344lt/accountgt
• ltbuy shares 100gt
• ltticker exch NASDAQgtWEBMlt/tickergt
• lt/buygt
• ltsell shares 30gt
• ltticker exch NYSEgtGElt/tickergt
• lt/sellgt
• lt/transactiongt

Closing Tag
Element
Attribute Name
Attribute Value
9
XML Representation of a Table

• lt?xml version1.0?gt
• ltROWSETgt
• ltROW num 1 gt
• ltENAMEgtKING lt/ENAMEgt
• ltSALgt5000lt/SALgt
• lt/ROWgt
• ltROW num 2 gt
• ltENAMEgtSCOTT lt/ENAMEgt
• ltSALgt3000lt/SALgt
• lt/ROWgt
• lt/ROWSETgt

ENAME SAL
KING 5000
SCOTT 3000
10
Very Unstructured XML

• lt?xml version1.0?gt
• ltDamageReportgt
• The insureds ltVehicle Make Volksgt Beetle
  lt/Vehiclegt broke through the guard rail and
  plummeted into the ravine. The cause was
  determined to be ltCausegtfaulty brakes lt/Causegt.
  Amazingly there were no casualties.
• lt/DamageReportgt

11
XML Vs. HTML

• XML and HTML are brothers. They are both special
  cases of SGML.
• HTML has specific tag and attribute names. These
  are associated with a specific meaning
• XML can have any tag and attribute name. These
  are not associated with any meaning
• HTML is used to specify visual style
• XML is used to specify meaning

12
Rules for Creating XML Documents
13
Rule 1 XML Declaration

• An XML document should begin with an XML
  declaration. A simple declaration is
• lt?xml version1.0?gt
• Other things can be specified, such as
  character encoding.

14
Rule 2 Document Element

• Use exactly one top-level document element
• Example
• lt?xml version1.0?gt
• ltQuestiongt This is legal lt/Questiongt
• lt?xml version1.0?gt
• ltQuestiongt Is this legal? lt/Questiongt
• ltAnswergt No. lt/Answergt

15
Rule 3 Match Opening and Closing Tags

• XML is case sensitive. The following examples are
  all illegal
• Example
• ltQuestiongt This is legal lt/QUESTIONgt
• ltQuestiongt ltBgt Is this legal? lt/Questiongt lt/Bgt

16
Rule 4 Comments

• Comments are between lt!-- and --gt characters.
  Comments cant appear as attribute values or
  within a tag.
• Example
• lt!-- This is a legal comment --gt
• ltQuestion lt!-- This is illegal --gtgt
• Why is this illegal
• lt!-- This is a legal comment --gt
• lt/Questiongt

17
Rule 5 Element Names

• Element and attribute names must be continuous
  sequences of letters or hyphens or underscores.
• Example
• Legal Names
• lt_legalgt
• ltThis-is-OKgt
• I Illegal Names
• lt2-Part-Questiongt
• ltTwo Part Questiongt ltQuestion 4You
  Yesgt

18
Rule 6 Attribute Values

• Attribute values
• go in opening tags.
• should be enclosed by matching quotes ( or )
• should have only text and not tags
• Legal Example
• ltQuestion Poster YitzchakgtDo you like
  XML? lt/Questiongt
• ltAnswer Poster YaakovgtI do.lt/Answergt

19
Rule 6 Continued

• Illegal Examples
• ltQuestion Poster YitzchakgtDo you like
  XML? lt/Questiongt
• ltQuestiongtDo you like XML? lt/Question
  Poster Yitzchakgt
• ltQuestion Poster ltfirstgtYitzchaklt/firstgt
  gtDo you like XML? lt/Questiongt

20
Rule 7 Empty Elements

• Empty elements are elements that do not contain
  text or nested elements. They can be written in a
  compact syntax
• ltPerson First Shmuel Last Levygtlt/Persongt
• is the same as
• ltPerson First Shmuel Last Levy /gt

21
Abstract View of XML
22
A Different Data Model
Relational Semi-Structured
Abstract Model Sets of tuples Labeled Directed Graph
Concrete Model Tables XML Documents
Standard for Storing Data Data Exchange
23
An Example

• lt?xml version1.0?gt
• lttransactiongt
• ltaccountgt89-344lt/accountgt
• ltbuy shares 100gt
• ltticker exch NASDAQgtWEBMlt/tickergt
• lt/buygt
• ltsell shares 30gt
• ltticker exch NYSEgtGElt/tickergt
• lt/sellgt
• lt/transactiongt

24
Corresponding Tree
transaction
account
buy
sell
89-344
shares
shares
ticker
ticker
100
30
exch
exch
NASDAQ
NYSE
WEBM
GE
25
Using XML

• Quering XML There are query languages that query
  XML and return XML. Examples XQuery, XPath,
  SQL4X
• Displaying XML An XML document can have an
  associated style-sheet which specifies how the
  document should be translated to HTML. Examples
  CSS, XSL

26
Namespaces

• Namespaces are used to attach an accepted meaning
  to a set of tags.
• Syntax for defining a namespace
• ltSomeElement xmlnsprefixnamenamespaceURL gt
• the namespace will be recognized within the
  SomeElement element.

27
Example Namespace

• ltirsForm id1040 xmlnsirshttp//www.irs.gov
  gt
• ltirsNamegtTina Wellslt/irsNamegt
• ltPhoneNumbergt03-5655666lt/PhoneNumbergt
• lt/irsNamegt
• In order for the namespace to be recognized in
  all elements, the declaration should be in the
  document element

28
XSQL Pages
29
What are XSQL Pages?

• XSQL pages are XML documents that have SQL
  queries embedded in them.
• When a user requests to view an XSQL page, the
  web server
• Dynamically computes the embedded queries
• Translates the query results into XML
• Inserts the results in the proper places in the
  document
• Transforms the result to HTML if a stylesheet is
  given

30
A Simple Example

• lt?xml version1.0?gt
• ltxsqlquery connectionscott xmlnsxsqlurnora
  cle-xsqlgt
• SELECT sname
• FROM Sailors
• lt/xsqlquerygt

You should specify the connection and the
namespace on the document element
31
Page Seen in Browser

• lt?xml version1.0?gt
• ltROWSETgt
• ltROW num 1 gt
• ltSNAMEgtRustylt/SNAMEgt
• lt/ROWgt
• ltROW num 2 gt
• ltSNAMEgtJustin lt/SNAMEgt
• lt/ROWgt
• lt/ROWSETgt

• A ROWSET element encloses query result
• Each ROW element encloses each row
• Each column in the row is within a tag with its
  columns name

32
Another Example

• lt?xml version1.0?gt
• ltRESULTS connectionscott xmlnsxsqlurnoracle
  -xsqlgt
• Here is something interesting
• ltxsqlquerygt
• SELECT sname, age rating as ra
• FROM Sailors
• WHERE sid 13
• lt/xsqlquerygt
• lt/RESULTSgt

33
Resulting Document

• lt?xml version1.0?gt
• ltRESULTSgt
• Here is something interesting
• ltROWSETgt
• ltROW num 1 gt
• ltSNAMEgtRustylt/SNAMEgt
• ltRAgt55lt/RAgt
• lt/ROWgt
• lt/ROWSETgt
• lt/RESULTSgt

34
Using Parameters

• Your page can use parameters. The value of a
  parameter param is determined in the following
  fashion
• The value of the URL parameter param if supplied
• The value of the HTTP session object param if
  supplied
• The value of the closest ancestors attribute
  named param, if present
• An empty string

35
Example with Parameters

• lt?xml version1.0?gt
• ltxsqlquery connectionscott xmlnsxsqlurnora
  cle-xsql
• sname Joegt
• SELECT
• FROM Sailors
• WHERE sname _at_sname
• lt/xsqlquerygt

36
Evaluating the Query

• Suppose the XSQL document is at
• http//cs.huji.ac.il/db/query1.xsql
• Then, requesting the url
• http//cs.huji.ac.il/db/query1.xsql?snameJim
• will return all the details of Jim.
• Requesting
• http//cs.huji.ac.il/db/query1.xsql
• will return all the details of Joe (the defualt
  value)

37
A Strange Example

• lt?xml version1.0?gt
• ltxsqlquery connectionscott xmlnsxsqlurnora
  cle-xsql
• select where 11 order1gt
• SELECT _at_select
• FROM _at_from
• WHERE _at_where
• ORDER BY _at_order
• lt/xsqlquerygt

38
Customizing Results

• The query tag can have different attributes that
  customize the query results. Here are some of the
  important options
• max-rows The maximum number of rows returned
• skip-rows The number of rows to skip before
  returning rows
• rowset-element The name of the rowset element
• row-element The name of the row element

39
Customizing Results

• lt?xml version1.0?gt
• ltxsqlquery connectionscott xmlnsxsqlurnora
  cle-xsql
• skip 0 max-rows2 skip-rows_at_skip gt
• SELECT
• FROM Program
• ORDER BY url
• lt/xsqlquerygt

By calling the same page with different values
for skip, we can see the different programs
40
Notes

• An XSQL document can have many queries.
• The queries can appear within arbitrary XML tags
• We can produce XML that has a more nested
  structure using the CURSOR function...

41
Remembering Subqueries in the SELECT Clause

• Subqueries in the SELECT clause must return a
  single value. What do we do if we want for each
  boat, all the sailors who reserved the boat?
• We want each bid to be associated with a table of
  Sailors data!

42
Using the CURSOR Function

• lt?xml version1.0?gt
• ltxsqlquery connectionscott xmlnsxsqlurnora
  cle-xsqlgt
• SELECT bid,
• CURSOR(SELECT sid, sname
• FROM Sailors S, Reserves R
• WHERE S.sid R.sid
• and R.bid B.bid)
• as Reservers
• FROM Boats B
• lt/xsqlquerygt

43

• lt?xml version1.0?gt
• ltROWSETgt
• ltROW num 1 gt
• ltBIDgt113lt/BIDgt
• ltRESERVERSgt
• ltRESERVERS_ROW num 1 gt
• ltSIDgt 13 lt/SIDgt
• ltSNAMEgt Joe lt/SNAMEgt
• lt/RESERVERS_ROWgt
• ltRESERVERS_ROW num 2 gt
• .... lt/RESERVERS_ROWgt
• lt/RESERVERSgt
• lt/ROWgt
• lt/ROWSETgt

Note use of select query alias instead of inner
row set and row tags.
44
Setting Page Level Parameters

• The following statement defines a parameter
  pname. The value of pname is the value in the
  first column of the first row of the query
• The variable pname will be recognized in the page
• ltxsqlset-page-param namepnamegt
• SELECT Statement
• lt/xsqlset-page-paramgt

45
Example

• lt?xml version1.0?gt
• ltpage connectionscott xmlnsxsqlurnoracle-xs
  qlgt
• ltxsqlset-page-param namenum-storiesgt
• SELECT headings_num
• FROM user_prefs
• WHERE userid_at_user
• lt/xsqlset-page-paramgt
• ltxsqlquery max-rows_at_num-stories gt
• SELECT title, url
• FROM latest_news
• lt/xsqlquerygt
• lt/pagegt

46
Another Way to Define a Page Level Parameter

• Page level parameters can also be set with the
  statement
• ltxsqlset-page-param namepname valueval/gt
• For example
• ltxsqlset-page-param namenum-stories
  value10/gt

47
Additional Options

• The set-page-param element can have the following
  attributes
• only-if-unset If the value is yes then the
  parameter will be set only if it has no value
• ignore-empty-value If value is yes then the
  parameter will be set only if its value will not
  be an empty string

48
Setting Cookie Values

• The following statement defines a parameter
  pname. The value of pname is the value in the
  first column of the first row of the query
• The variable pname will be recognized until the
  cookie expires
• ltxsqlset-cookie namepnamegt
• SELECT Statement
• lt/xsqlset-cookiegt

49
Additional Attributes for Set-Cookie

• The set-cookie element can have the following
  attributes
• max-age The number of seconds before the cookie
  expires (defaults to expire when user exits
  current browser instance)
• only-if-unset
• ignore-empty-value

50
Example

• lt?xml version1.0?gt
• ltpage connectionscott xmlnsxsqlurnoracle-xs
  qlgt
• ltxsqlset-cookie namesiteuser
  max-age31536000
• only-if-unsetyes ignore-empty-valueyes
  gt
• SELECT username
• FROM site_users
• WHERE username _at_username and
• password_at_password
• lt/xsqlset-cookiegt
• lt!-- Other Actions Here --gt
• lt/pagegt

51
DML or PL/SQL

• We can do DML (update, insert, delete) or call
  PL/SQL procedures with the following basic
  syntax
• ltxsqldmlgt
• DML Statement
• lt/xsqldmlgt
• or
• ltxsqldmlgt
• BEGIN
• Any valid PL/SQL Statement
• END
• lt/xsqldmlgt

52
Example

• ltxsqldmlgt
• INSERT INTO page_requests_log(page,userid)
• VALUES(page12.xsql, _at_siteuser)
• lt/xsqldmlgt
• If successful the following element is added to
  the page
• ltxsql-status actionxsqldml rowsn /gt
• Otherwise, an error element is added
• ltxsql-error actionxsqldmlgt ...
• lt/xsql-errorgt
