Title: 9000 Series Digital Matrix MixerAmplifiers


1

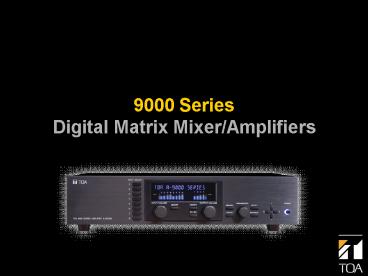

9000 SeriesDigital Matrix Mixer/Amplifiers
2
Model Comparison
3
9000 Series Common Features
  • Mixer, Signal Processor and Amplifier(s)
  • Up to 8 Mic/Line Inputs
  • 8x8 Matrix
  • Dual Channel Digital Signal Processor

4
Digital Signal Processing
  • Dual Channel Digital Signal Processor
  • Auto-mixing (Mixer mode)
  • 10-Band Parametric EQ
  • High and Low Pass Filters
  • Bass and Treble
  • TOA Speaker EQ Presets
  • Loudness
  • Compressor
  • Delay (Mixer mode)

5
Key Features
  • Modular Design
  • Excellent Audio Quality
  • 24-bit A/D and D/A, 48 kHz sampling
  • Ultra-Low Distortion 0.0008
  • Versatile Operation
  • Includes two operation modes (Matrix and Mixer)
    to suit both zone paging matrix and conventional
    mixing applications
  • Telephone Zone Paging
  • DTMF dial access up to eight zones

6
Key Features
  • Multi-function Display
  • Allows programming and operation without a PC
  • Flexible Remote Control
  • Two remote volume control ports, assignable to
    any input or output programmable trigger inputs
    and outputs (four each, expandable to twelve)
    and an RS-232 serial port
  • Rack Kit Included (2RU)
  • Five Year Warranty

7
A-9060DH A-9120DHDual Channel Mixer/Amplifiers
  • Up to 8 Mic/Line Inputs
  • Up to 6 Line Outputs
  • 8x8 Matrix
  • Dual Channel Digital Signal Processor
  • Dual 70V AmplifiersA-9060DH 60W x 2A-9120DH
    120W x 2
  • Flexible Output Power

8
A-9000DH SeriesFlexible Output Power
A-9120DH
A-9120DH
180 Watts
60 Watts
120 Watts
120 Watts
Up to 1.5x Rated Output Power
9
A-9000DH SeriesFlexible Output Power
  • 50 of either amplifier channel can be allocated
    to the other channel.
  • No configuration required power output is
    determined by speaker load.

10
A-9120DL Dual Channel Mixer/Amplifier
  • Matrix mixer, dual channel DSP and single channel
    power amplifier
  • Dual Lo-Z Amplifiers
  • 120W x 2 (4 ohms)
  • 70W x 2 (8 ohms)
  • 40W x 2 (16 ohms)
  • Ideal for stereo applications such as
    presentation rooms, etc.

11
A-9060S / A-9120S Single Channel Mixer/Amplifiers
  • Matrix mixer, dual channel DSP and single channel
    power amplifier
  • A-9060S 60WA-9120S 120W
  • 25V, 70V and 4/8 ohm outputs (transformer-isolated
    )
  • One built-in line output

12
A-9240SHSingle Channel Mixer/Amplifier
  • Matrix mixer, dual channel DSP and single channel
    power amplifier
  • 240W _at_ 70V (transformerless output)
  • One built-in line output

13
M-9000 Mixer
  • Up to 8 Mic/Line Inputs
  • 8x8 Matrix
  • Dual Channel Digital Signal Processor
  • 2 Balanced Line Outputs
  • Add up to 6 Additional Line Outputs

14
M-9000 Application Eight-Zone Paging System
(1) M-9000 Digital Matrix Mixer (1) ZP-001T
Telephone Paging Module(3) T-001T Dual Line
Output Modules(2) DA-250FH Multi-Channel
Amplifiers
15
9000 Series Model Comparison
16
Front Panel
Output volume
Input select switches
Output On/Off
Input volume
Output channel select
Input On/Off
17
Front Panel
Power On/Off
Memory
Navigation
Enter
Utility
Parameter
Esc/Back
18
A-9060DH A-9120DH Rear Panel
Dual remote volume controls
Control I/O
Matrix/Mix Mode switch
RS-232 port
Dual patching loops
Dual 70.7V outputs
19
M-9000 Rear Panel
Dual remote volume controls
Control I/O
Matrix/Mix Mode switch
RS-232 port
Dual line outputs
20
Block Diagram
Dual Channel Digital Signal Processor
D-001T
Dual 70V Amplifiers
D-001T
T-001T
8x8 Matrix
D-001T
T-001T
ZP-001T
T-001T
21
Matrix Block Diagram
22
Built-in DSP - Block Diagram
23
Amplifiers - Block Diagram
24
9000 Series Modules
25
9000 Series Modules
D-001T dual mic/line input
T-001T dual line output
ZP-001T telephone zone paging
C-001T remote control I/O
AN-001T ambient noise controller
26
D-001T Dual Mic/Line Input Module with DSP
  • Two Balanced Mic / Line Inputs
  • Digital Signal Processing
  • 10-Band Parametric EQ
  • Bass / Treble
  • Loudness
  • High and Low Pass Filters
  • Compressor
  • Adjustable Sensitivity (-60 to -10 dBV)
  • Phantom Power (24 VDC)
  • Removable Terminal Block
  • Maximum four per chassis
  • Reqd for VOX (Voice-Operated Switch) function
    input level metering

27
D-001T - Block Diagram
28
T-001T Dual Line Output Module with DSP
  • Two Balanced Line Outputs
  • Digital Signal Processing
  • 10-Band Parametric EQ
  • Bass / Treble
  • Loudness
  • High and Low Pass Filters
  • Compressor
  • Delay
  • TOA Speaker EQ presets
  • Removable Terminal Block
  • Maximum three per chassis

29
T-001T - Block Diagram
30
ZP-001T Telephone Zone Paging Module
  • Telephone Access Paging to up to eight zones
  • Uses DTMF dialing to access amplifier and/or line
    outputs
  • Dial up to eight output zones in one operation
  • Analog extension or page port compatible
  • Page port operation requires contact closure
    activation
  • RJ-11 Telephone Jack and Removable Terminal
    Blocks
  • Maximum one per chassis

31
ZP-001T Telephone Zone Paging Module
  • Two Operation Modes
  • Ring (Analog extension port)
  • Paging Port (DTMF and contact-closure required)
  • Minimal programming required simply dial to
    access individual or multiple outputs
  • Requires busy tone from telephone system for
    disconnect
  • If telephone system does not provide busy tone,
    dial 00 to terminate the zone paging function
  • Fixed 30 second paging time-out (automatic
    disconnect)

32
ZP-001T Telephone Zone Paging Module
  • Four control outputs
  • Available only in new Matrix sub-modes
  • Intended for use with SS-9001 Speaker Selector

33
AN-001T Ambient Noise Controller Module
  • Automatically adjusts output gain to compensate
    for changes in ambient noise levels
  • Two mic/line inputs
  • 24VDC phantom power
  • Each input can be assigned to control a specific
    output
  • 14 gain ratios
  • Accessory sensing mic available, model AN-9001

34
AN-9001 Ambient Noise Sensing Microphone
  • Ceiling or wall-mount condenser microphone
  • Use with AN-001T module or DP-L2 Digital Ambient
    Noise Control Processor
  • Fits one gang electrical box

35
9000 Series Ambient Noise Control
  • Ideal for Paging/BGM applications with varying
    ambient noise levels such as restaurants, hotels
    and warehouses

36
9000 Series Ambient Noise Control
AMBIENTNOISE
As ambient noise increases at AN-9001 sense
microphone, amplifier output also increases (up
to a preset threshold).
37
AN-001T Gain Ratios
  • Adjustable input-to-output gain ratios
  • 63, 53, 43, 33 (default), 34, 35, 36,
    6-3, 5-3, 4-3, 3-3, 6-3, 5-3, 4-3, 3-3,
    3-4, 3-5, 3-6

38
C-001T Input/Output Control Module
  • Eight assignable control inputs for activating
  • Event
  • Volume Up/Down (Input or Output)
  • Mute (Input or Output)
  • Power On/Off
  • Emergency Mute
  • Synch On/Off
  • Eight assignable control outputs
  • Removable Terminal Block
  • Maximum one per chassis

39
Module Compatibility
  • All existing 900 Series modules are compatible
    with new 9000 Series models A-9060DH, A-9120DH
    and M-9000 module ports
  • New 9000 modules are not compatible with module
    ports in existing 900 Series, 700 Series or BG-M
    Series mixer/amplifiers
  • 9000 input and output modules offer 2 channels in
    one module, more features, and are more
    cost-effective than separate 900 modules

40
Input and Output Metering
  • Input metering requires D-001T input modules
  • Output metering is provided for the two built-in
    output channels and included with each T-001T
    output module
  • 900 Series input and output modules do not
    include input or output metering

41
Module Capacity
1
8
42
9000 Series Accessories
ZM-9001 remote switch panel
ZM-9002 remote volume switch panel
SS-9001 4-zone speaker selector
AN-9001 ceiling mic for ambient noise control
43
SS-9001 Speaker Selector
  • Switch up to four speaker lines on one amplifier
    output
  • Controlled by ZP-001T control outputs
  • Wall-mount bracket

44
Remote Control
45
Remote Control Options
  • Built-in
  • Two Remote Volume Control Terminals
  • Four Control Inputs
  • Four Control Outputs
  • C-001T Control I/O Module
  • Eight Control Inputs
  • Eight Control Outputs
  • RS-232
  • AMX and Crestron software modulesnow available!

46
Rear Panel Remote Control
Remote Volume Control (2)(10k ohm pot. ,
0-10VDC, ZM-9001 / ZM-9002 remote panels)
Control Inputs (4) (switch closure, dry contact)
Control Outputs (4) (open collector)
47
Rear Panel Remote Control
48
Rear Panel Remote Control
  • Two Remote Volume Control Terminals
  • assignable to any input or output
  • 10k ohm linear potentiometer
  • 0-10 VDC
  • ZM-9001 or ZM-9002 Remote Panels

49
Zone Manager Remote Panels
  • Buttons can be assigned to
  • Scene Recall (Mix mode)Event Activation (Matrix
    Mode)
  • Volume Up
  • Volume Down
  • Volume control can be assigned to any input or
    output

ZM-9001
ZM-9002
50
ZM-9001 Remote Panel
  • Six assignable push buttons
  • Wiring shielded conductor
  • Max. loop resistance 100 ohms (3000 ft. 22AWG)
  • Fits one gang electrical box

51
ZM-9002 Remote Panel
  • Four assignable push buttons
  • Volume control knob
  • Wiring shielded conductor
  • Max. loop resistance 100 ohms (3000 ft./22AWG)
  • Fits one gang electrical box

52
Zone Manager Remote Panels
53
C-001T Input/Output Control Module
  • Eight assignable control inputs for activating
  • Event
  • Volume Up/Down (Input or Output)
  • Mute (Input or Output)
  • Power On/Off
  • Emergency Mute
  • Synch On/Off
  • Eight assignable control outputs
  • Removable Terminal Block
  • Maximum one per chassis

54
C-001T Module Remote Control
Control Inputs (8) (switch closure, dry contact)
Control Outputs (8) (open collector)
55
RS-232 Remote Control
  • AMX and Crestron modules now available!
  • Controllable parameters
  • Fader gain
  • Cross-point gain (Mixer mode)
  • Preset recall
  • Power On/Off
  • EQ

56
Software
57
9000 Series Excel Programming Templates
58
9000 Series Excel Programming Templates
  • Use MS Excel for programming!
  • Available on CD included with updated units
  • Mix and Matrix Mode versions
  • Requires v2.0 firmware

59
9000 Series Windows Software
60
9000 Series Windows Software
  • Available September, 2006
  • Requires v3.0 firmware update

61
Matrix and Mixer Modes
62
Operation Modes
  • Matrix Mode
  • 1 input to up to 8 outputs
  • Paging matrix applications
  • Simultaneous Event (memory) activation
  • Mixer Mode
  • Up to eight inputs to up to eight outputs
  • Mixing applications
  • Single Scene (memory) activation

63
Operation Mode Switch
64
Changing Modes
  • Power cable must be removed before changing
    operation modes
  • When power is reapplied, all previously stored
    settings are lost
  • Save settings before changing modes

65
Matrix Mode
  • Zone Paging Matrix
  • Allows multiple simultaneous Event activation for
    paging and BGM distribution
  • Eight Level Ducker
  • Assignable priority levels and mute depth
    attenuates all other lower priority input signals
  • Voice Operated (VOX) Event Activation
  • 32 Programmable Events
  • Activate via front panel, control input, or
    RS-232
  • Multiple Events can be active simultaneously

66
Mixer Mode
  • Auto-mixing
  • Automatically adjusts the open microphone's
    output channel gain depending on the number of
    open microphones (NOM)
  • Two Level Ducker
  • Assignable priority levels and mute depth
    attenuates all other lower priority input signals
  • Voice Operated (VOX) Paging
  • 32 Programmable Scenes
  • Activate via front panel, control input, or
    RS-232
  • Only one Scene can be active at a time

67
Mode Comparison
68
VOX Function
  • The VOX function activates the set Event (Matrix
    mode) or Page (Mixer mode) when an audio signal
    at the assigned input
  • If the audio signal drops below a preset level
    after the VOX function begins operation, the set
    Event or Page is terminated after approximately 5
    seconds (adjustable 1-8 seconds)

69
Ducker Function
  • The Ducker function automatically attenuates
    input signals with lower priority when two or
    more audio signals are simultaneously received
  • Matrix mode 8-Level Ducker
  • Mixer mode 2-Level

70
Applications
71
Application Guide
72
Office/retail store Telephone paging and
Music-On-Hold
73
Office/retail store/factory Multi-zone paging
74
Retail store Multi-zone paging w/ night ringer
MOH
75
Restaurant/Bar Multiple sources, jukebox and
zone paging
76
Fitness club Multiple sources, zone paging
digital message repeater
77
Hotel/banquet Room combining
78
Conference room 4 microphone conference w/
teleconferencing
79
www.toaelectronics.com
Write a Comment
User Comments (0)
About PowerShow.com
