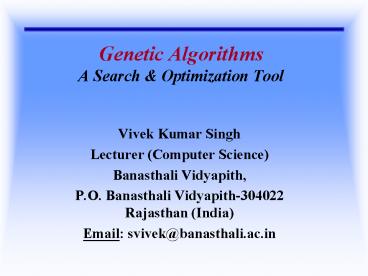

Genetic Algorithms A Search

1
Genetic AlgorithmsA Search Optimization Tool

• Vivek Kumar Singh
• Lecturer (Computer Science)
• Banasthali Vidyapith,
• P.O. Banasthali Vidyapith-304022 Rajasthan
  (India)
• Email svivek_at_banasthali.ac.in

2
Genetic Algorithm

• Search and Optimization Algorithm.
• Based on principles of Natural Selection and
  Genetics.
• Proposed by John Holland of University of
  Michigan in 1975, to study the phenomenon of
  adaptation as it occurs in nature.

3
Problems with Traditional Methods

• Search Space is often complicated and one doesnt
  know where to look for the solution or where to
  start from. Here GA comes to help.
• Traditional methods often require some domain
  knowledge of the problem which might not be
  readily available.
• Many traditional methods are often sensitive to
  initial guesses made and provided an
  inappropriate guess the method may not converge
  to the solution.

4
Natural Selection

• A process called natural selection, selects
  individuals best adapted to the environment.
• Those fittest survive longest.
• Characteristics, encoded in genes are transmitted
  to offspring and tend to propagate into new
  generations.
• In sexual reproduction, the chromosomes of
  offspring are a mix of their parents.
• An offsprings characteristics are partially
  inherited from parents and partly the result of
  new genes created during the reproduction process.

5
Terminology

• Chromosome often encoded as a bit string,
  represent a candidate solution in the population.
• Genes are either single bits or short blocks of
  adjacent bits that encode a particular element of
  the candidate solution.
• Alleles are 0s or 1s in a bit string.

6
Nature to Computer Mapping
7
Elements of a Genetic Algorithm

• A Population of chromosomes.
• A Fitness Function.
• Genetic Operators
• - Selection
• - Crossover
• - Mutation

8
Genetic Operators

• Selection This operator selects chromosomes in
  the population for reproduction.The fitter the
  chromosome, the more times it is likely to be
  selected to reproduce.
• Crossover This operator randomly chooses a
  locus and exchanges the subsequences before and
  after that locus between two chromosomes to
  create two offspring.
• Mutation This operator randomly flips some of
  the bits in a chromosome.

9
Basic Algorithm

• Initialise and evaluate a population
• While (termination condition not met) do
• Select sub-population based on fitness
• Produce offspring of the population using
  crossover
• Mutate offspring stochastically
• Select survivors based on fitness

10
A Sample Example

• Problem
• Find the value of x which maximises the
  function f(x)x2 on the integer range for x
  0..31
• Solution
• Choose a population of 4 individuals (small by GA
  standards), values chosen at random.
• Sample population 01101,11000,00100,10011
• Fitness values 169, 576, 64, 361
  (Average 293)

11
A Sample Example Contd.(1)

• Reproduction (e.g using a Roulette wheel)
• 14.4, 49.2, 5.5, 30.9
• Selection for Crossover 01101 and 11000
• Crossover after bit 4 0110 0 and 1100 1
• Another selection 11000 and 10011
• Crossover after bit 2 11 011 and 10
  000
• In both cases bit position chosen at random

12
A Sample Example Contd..(2)

• New population after first generation
• 01100, 11001, 11011, 10000
• Fitness values 144, 625, 729, 256
• Avg. 439
• Prev. generation best was 576 and
• Avg. 293
• Next generation will start with this population

13
A Sample Example Contd(3)

• Mutation Change one bit probabilistically
• e.g. p_m 0.001
• Expected probability of a mutation of one
  individual is 0.005 (no.of bits p_m)
• Expected probability of a mutation in whole
  family is 0.02 (since 4 individuals in
  population)
• Eventually get convergence with best individual
• 11111 and a fitness of 961

14
Algorithm (Revisited...)

• 1. Start with a randomly generated population
  of n chromosomes
• each of size m-bits.
• 2. Calculate the fitness f(x) of each
  chromosome x in the
• population.
• 3. Repeat the following steps
• a) Select a pair of parent chromosomes from
  the current
• population.
• b) With probability Pc, cross over the pair at
  a randomly
• chosen point to form offspring.
• c) Mutate the two offspring at each locus with
  probability
• Pm, and place the resulting chromosomes in
  the new
• population
• 4. Replace the current population with n most fit
  chromosomes.
• 5. Go To step 2

15
Algorithm contd..

• Each iteration of this process is called a
  Generation (50 to 500).
• The entire set of generations is called a Run.
• At the end of a run there are often
  one or more highly fit chromosomes in the
  population.
• This simple procedure in fact forms the
  basis for most applications of GA.
• The success of the algorithm depends on
  various details like size of the population,
  probabilities of crossover and mutation.

16
Search Space

• The set of all possible individuals (solutions)
  defines the search space.
• One measure of the complexity of the problem is
  the size of the search space.
• Crossover and mutation implement a pseudo-random
  walk through the search space.
• Walk is random because crossover and mutation are
  non-deterministic.
• Walk is directed in the sense that the algorithm
  aims to maximise quality of solutions using a
  fitness function which measures the fitness of an
  individual.

17
Theoretical Foundations

• John Hollands Schemata theorem
• A schema is a similarity template describing
  a subset of strings with similarities at certain
  positions.
• Building Block Hypothesis
• Schemata with high fitness and small defining
  length are called building blocks. Building
  blocks combine together t form bigger and better
  BBs and eventually the optimal solution(s).

18
GAs Vs. other Search Optimization Methods

• GAs work with a population of candidate solutions
  and not a single point.
• GAs work with coding of parameters instead of
  parameters themselves.
• GAs do not require any domain knowledge (gradient
  information etc.) and just use the payoff
  information.
• GAs are stochastic methods, i.e., use
  probabilistic transition rules and not
  deterministic ones.
• Applies to a variety of problems and not works in
  a restricted domain.

19
GAs Vs. other Search Optimization Methods

• Multiple solutions can be obtained without extra
  effort.
• GAs are implicitly parallel and can be
  implemented on parallel machines.
• GAs are quite successful in locating the regions
  containing optimal solution(s), if not the
  optimum solution itself.
• GAs can solve problems involving large time
  domain.

20
Related Fields

• Evolutionary Strategies
• Genetic Programming
• Genetic Engineering

21
Some Applications of GA

• Optimization
• Automatic Programming
• Machine Learning
• Economics
• Immune systems
• Ecology
• Population genetics
• Evolution and learning
• Social systems
• Bioinformatics
• Neural Networks Fuzzy Logic

22
References Books

• Introduction to Genetic Algorithms, M. Mitchell,
  MIT press, 1996
• Genetic Algorithms in Search, Optimisation and
  Machine Learning, D.E. Goldberg,
• Addison-Wesley 1989
• An introduction to Genetic Algorithms for
  Scientists and Engineers, D. A. Coley,
• World Scientific 1999.
• Optimization for Engineering Design Algorithms
  and Examples, Kalyanmoy Deb,
• P.H.I.
