Specificationdriven Embedded SelfTest for MixedSignal Circuits using loopback

1

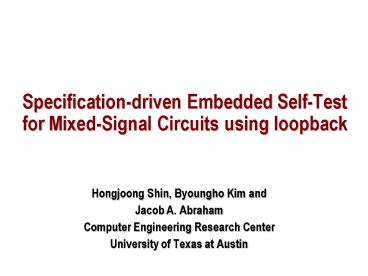

Specification-driven Embedded Self-Testfor
Mixed-Signal Circuits using loopback

• Hongjoong Shin, Byoungho Kim and
• Jacob A. Abraham
• Computer Engineering Research Center
• University of Texas at Austin

2
Loopback-based Testing

• Function-rich system (data converters and DSP)
• Core-level testing
• Uses test points to access individual cores
  (sequential tests)
• Loopback-based testing
• Loops one signal path back into another signal
  path
• Measure the combined performance of path
• Advantages
• Reduced test time parallel tests
• Digital-like Self Test

Conventional core-level test
Loopback-based test
bus
Baseband
Voiceband
Digital core
Tx analog modules
ADC
Tx analog modules
Digital core
ADC
Rx analog modules
DAC
Rx analog modules
DAC
bus
3
Loopback-based Testing Limitations I
Fault masking

• Fault masking
• Combined response
• Distortion and noise of signal paths are additive
• Overqualified performance of one signal path
  masks a fault in another signal path
• Misclassification

Signal path B performance
Signal path A performance
faulty
Masked
Misclassifications ()
Standard deviation (dB)
4
Loopback-based Testing Limitations II

• Analog systems with self-repair
• Overcomes parametric yield loss due to variations
  in process parameters
• Variations is increasing
• Finds optimal tuning point where all performance
  parameters meet specifications
• Loopback is insufficient to guide self-repair
  mechanism
• Which block fixed?
• How much tuned?
• Need to extract performance parameters of
  individual signal paths

fault-free
faulty
Signal path A performance
faulty
Signal path B performance
Tuning
Loopback performance
Analog systems with Self-repair
Digital core
ADC
DAC
5
Proposed loopback Design For Test scheme

• Provide performance parameters of individual
  signal paths
• Avoid yield loss due to fault masking
• Effective in diagnosis and self-repair
• Extend DFT techniques onto loadboard (DFT
  circuitry on chip)
• Implement analog filter and adder on loadboard or
  as DFT circuitry
• Reduce silicon cost with minimal pin count (2
  dedicated pins)
• Compatible with existing loopback scheme
• Characterize harmonic distortion and noise
  parameters

Under Test
Load Board
DSP
ADC
PGA
Filter
DAC
PGA
Filter
Test Input
Loopback DFT circuits
DUT in a loopback mode
6
Harmonic distortion extraction Basic idea
k a2 ß2
DAC channel
ADC channel
y
x cos(?0t)
z

• Requires the value of ß and a to estimate
  harmonic distortion (HD) of DAC and ADC channel
• Cannot determine the value of ß and a - Two
  unknown variables, but one equation
• If we can obtain additional equation which is
  orthogonal to the first equation
• For example, k1 a2 ß2 and k2 0.7a2 ß2
• Two unknown variables and two equations
• Can determine the value of ß2 and a2
• Our approach
• Doubles number of equations by scaling a with
  different weights

7
Harmonic distortion extraction Our approach
DAC channel
Linear filter
y0
y0F
x0
x x0 x1
ADC channel
y
z
y1
x1
y1F

• Two-tone signal (?0 and ?1)
• x x0 x1 cos(?0t) cos(?1t)
• Models DAC channel as two identical non-linear
  systems
• Ignores IMD of x0 and x1
• Only interested in HD of ?0 and ?1 (?0 and ?1 are
  mutually prime)
• y0 is just shifted version of y1 in frequency
  domain
• Filter scales magnitude and phase
• of y0 and y1 with different weights
• Y0(?) (y0) and Y1(?) (y1)
• Y0(?) Y1(??)
• Y0F(?) ? Y1F(??)

Different weights
y0
y1
Phase response
f
ignored
8
Distortion Characteristic Equations (DCEs)

• Obtains two orthogonal equations from z0 and z1
• k1 ea2 ß2 and k2 ?a2 ß2
• Can determine the value of ß and a
• Can be extended to nth-order

9
Harmonic distortion extraction Summary
a
Linear filter
y0
y0F
x x0 x1
x0
y
z
DAC channel
ADC channel
y1
x1
y1F
ß
Loopback I
a
a
Different weights
y0F
y0
DAC chan.
ADC chan.
ß
y1
Loopback II
y1F
DAC chan.
ADC chan.
f
ignored
ß

• Loopback response represents the sum of
  input/output channel performance
• Loopback performance (DAC) performance (ADC)
• Excite output channel (ADC channel) with unknown
  input (output of DAC channel)
• Scaled by known filter magnitude response
  scaled by different scaling factors
• Analyze correlation between the obtained loopback
  responses
• Loopback I scaling factor a performance (DAC)
  performance (ADC)
• Loopback II scaling factor ß performance
  (DAC) performance (ADC)

10
Noise Characteristic Equations (NCEs)

• Output referred noise of loopback response is
• Na Power Spectral Density (PSD) of DAC
• Nß PSD of ADC
• NH PSD of filter
• K Overall path gain
• H Transfer function of filter
• Use Equivalent Noise Bandwidth (ENB) to simplify
  the equation

11
Equivalent noise bandwidth

• Equivalent Noise Bandwidth (ENB) to simplify the
  equation
• ENB fN is chosen to give the same total output
  noise voltage as the original transfer function

12
Estimate noise using NCEs and NCPs

• Equation decomposed into frequency range 0 fN
  and fN ?
• Given characteristics of filter and NCPs
• Noise parameters of ADC/DAC channels can be
  extracted

NCEs
NCPs
13
Results - simulation

• DAC-ADC loopback was modeled and simulated using
  MATLAB
• SINAD 66dB
• Performance parameters considered were SINAD, SNR
  and THD
• 1000 DUT ensembles were generated with normal
  distribution in value of noise and distortion

Prediction Errors
14
Validation using hardware measurements

• Commercial broadband modem mixed-signal front-end
  IC
• AD9865
• Low cost 3.3V CMOS
• Tx/Rx data rates upto 80MSPS

15
AD9865 Prototyped board
TX analog Output
Clock
TX digital Input
AD9865 Broadband Modem
Gain control switches
RX analog Input
RX digital Output
SPI Interface
16
Functional block diagram AD9865

• Commercial broadband modem mixed-signal front-end
  IC
• Programmable using SPI registers

IOUT_P
Programmable Gain Amplifiers
IAMP
2_4X
IOUT_G
TxDAC

IOUT_N
TXEN/SYNC
-
10
TXCLK
CLK SYN
ADIO94/ Tx50
Input clock 5Mhz 80Mhz
OSCIN
2M CLK MULT
XTAL
ADIO30/ Rx50
10
RX
Programmable Gain/BW (15Mhz 35Mhz)
RX -
RXE/SYNC
TxADC
MUX
RXCLK
3-POLE LPF
17
Functional block diagram Test mode

• Programmable 3-pole filter is used to emulate the
  filter in the proposed scheme

Loopbacked in test mode
Bypassed in normal mode
18
Measurement Setup
Data analysis LabView MATLAB
Hardware Controls SPI
Signal acquisition and stimulation LabView/NI DAQ
19
Virtual fault injection

• Faults injected by
• Re-configuring Tx/Rx gain
• Sweeping power supplies
• Sweeping input amplitude
• Injected faults result in
• 20dB variations in SNR
• 7dB variations in THD
• 45 DUTs

SINAD and THD Vs. PGA gain
SINAD and THD Vs. Input amplitude
20
Measurement setup
21
(No Transcript)
22
Results SINAD prediction
23
Results SNR prediction
24
Results THD prediction
25
Results Summary
SINAD
SINAD
predicted value
predicted value
Actual value (dB)
Actual value (dB)
(b) ADC channel
(a) DAC channel
26
